DSIT DANICOM CAT6A U/UTP 305m cavo conduttore solido LSZH (Dca) - grigio

Modern buildings demand high-speed networking without compromising on safety. The DSIT DANICOM CAT6A U/UTP cable delivers 10 Gigabit Ethernet performance over 305 meters with a 500 MHz bandwidth, while its LSZH jacket meets Euroclass Dca fire safety standards. Ideal for offices, data centers, and industrial environments where low smoke and halogen-free materials are required.

Who is it for

Network installers, IT managers, and system integrators seeking a reliable, future-proof horizontal cabling solution. Perfect for permanent installations in public buildings, healthcare facilities, and educational institutions where safety regulations demand LSZH materials.

Main features

• Category 6A performance with 500 MHz bandwidth for 10GBASE-T applications
• Unshielded twisted pair (U/UTP) construction with solid bare copper conductors (23 AWG)
• LSZH (Low Smoke Zero Halogen) jacket with Euroclass Dca-s2,d2,a1 fire rating
• Supports Power over Ethernet up to IEEE 802.3bt (PoE++)

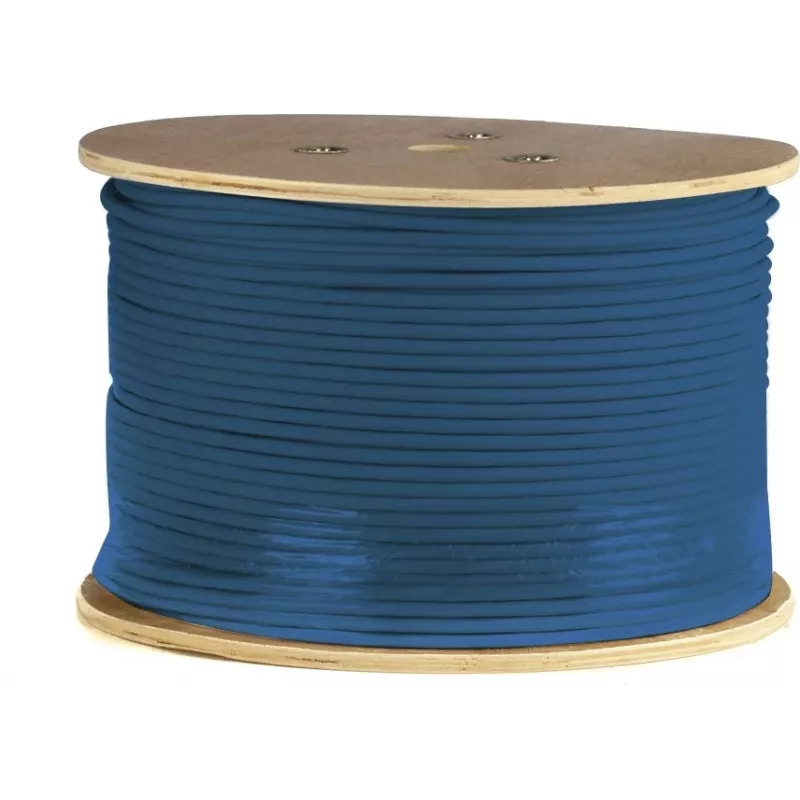

• Supplied in a convenient reel-in-box for easy pulling and reduced tangling

Specifications

• Cable type: U/UTP (Unshielded Twisted Pair)
• Category: Cat6A
• Length: 305 meters (1000 ft)
• Conductor: Solid bare copper, 23 AWG
• Jacket: LSZH, grey
• Outer diameter: 6.5 - 7.5 mm
• Impedance: 100 Ohm
• Operating temperature: -20°C to +60°C
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Packaging: Reel-in-box

Tips

For optimal performance, maintain the twist rate of pairs up to the termination point and avoid exceeding the minimum bend radius. Use compatible Cat6A connectors and patch panels to ensure full 10G performance.
