DSIT DS-8PDU-PE PDU rack 19", 8 prese Schuko, 16A, cavo 2m, nero

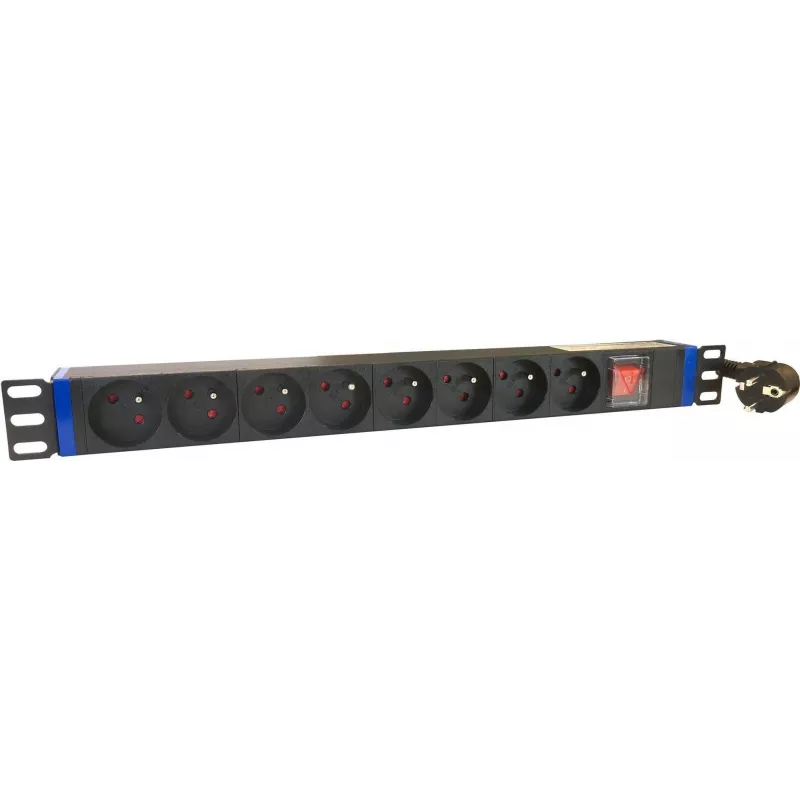

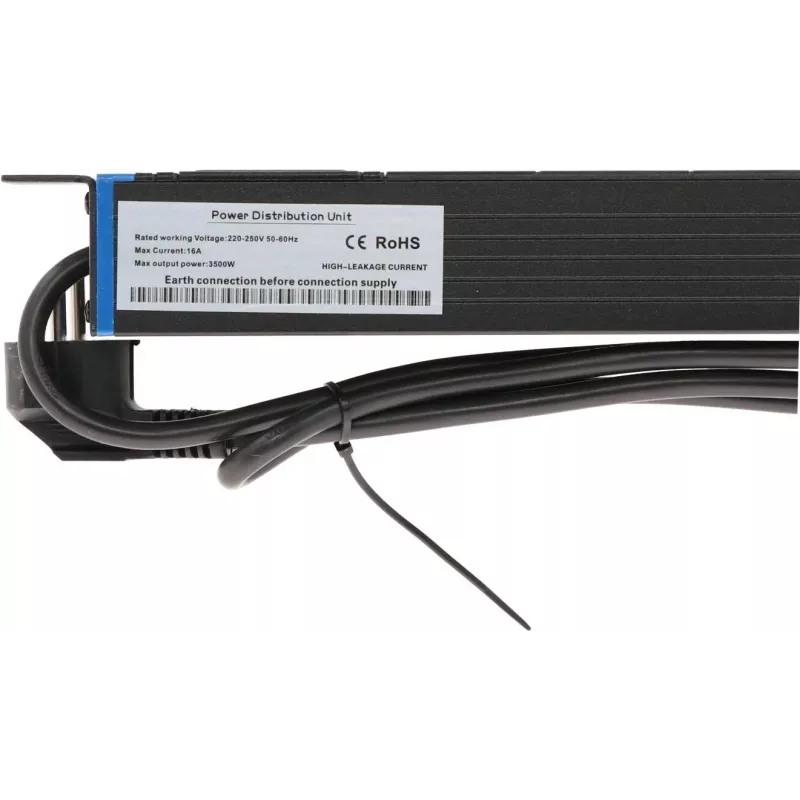

The DSIT DS-8PDU-PE is a 19-inch rack-mount power distribution unit engineered for reliable power delivery in professional IT environments. Its 1U aluminum housing integrates eight Schuko outlets and a 2-meter input cable with a Schuko plug, supporting up to 16A at 230V for a total load capacity of 3680W. The illuminated on/off switch and built-in overload protection ensure safe operation, while the earthing pin provides essential grounding for connected equipment.

Advantages

The DS-8PDU-PE offers a robust and space-efficient power distribution solution for standard 19-inch racks. The aluminum chassis ensures durability and effective heat dissipation, while the integrated overload protection safeguards your valuable hardware. The illuminated switch provides clear status indication, and the 2-meter cable with Schuko plug allows flexible placement within the rack. With eight outlets, it accommodates multiple devices, reducing cable clutter and simplifying power management.

Suitable for

• Server rooms and data centers requiring reliable rack-mount power distribution
• Network cabinets with switches, routers, and patch panels
• AV racks and professional audio/video installations
• Industrial control systems and automation enclosures
• Any 19-inch rack environment where safe, high-capacity power is essential

Key specifications

• Type: Power Distribution Unit (PDU)
• Mounting: 19-inch rack, 1U height
• Outlets: 8 × Schuko (Type F, CEE 7/3)
• Input plug: Schuko (Type F, CEE 7/7)
• Cable length: 2 m
• Rated voltage: 230 V AC
• Rated current: 16 A
• Max power: 3680 W
• Frequency: 50/60 Hz
• Housing: Aluminum, black
• Switch: Illuminated on/off
• Overload protection: Yes
• Cable specification: H05VV-F 3G1.5mm²
• Earthing: Yes (via Schuko)

Recommendations

For optimal performance, ensure the PDU is installed in a well-ventilated rack and the total connected load does not exceed 16A. Use the illuminated switch to easily power cycle equipment during maintenance. Pair with a UPS for continuous power protection in critical applications.
