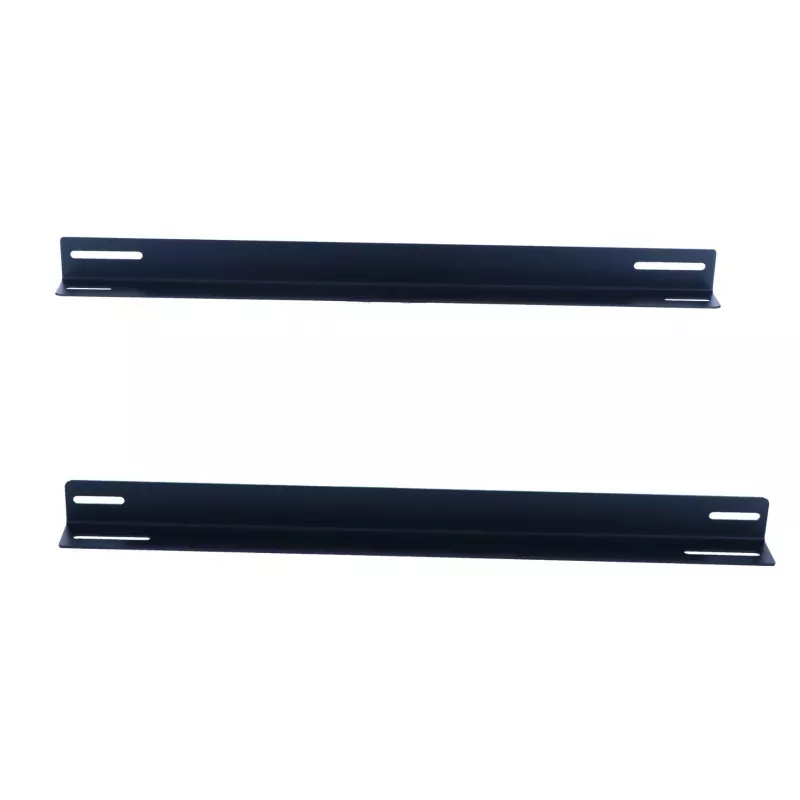

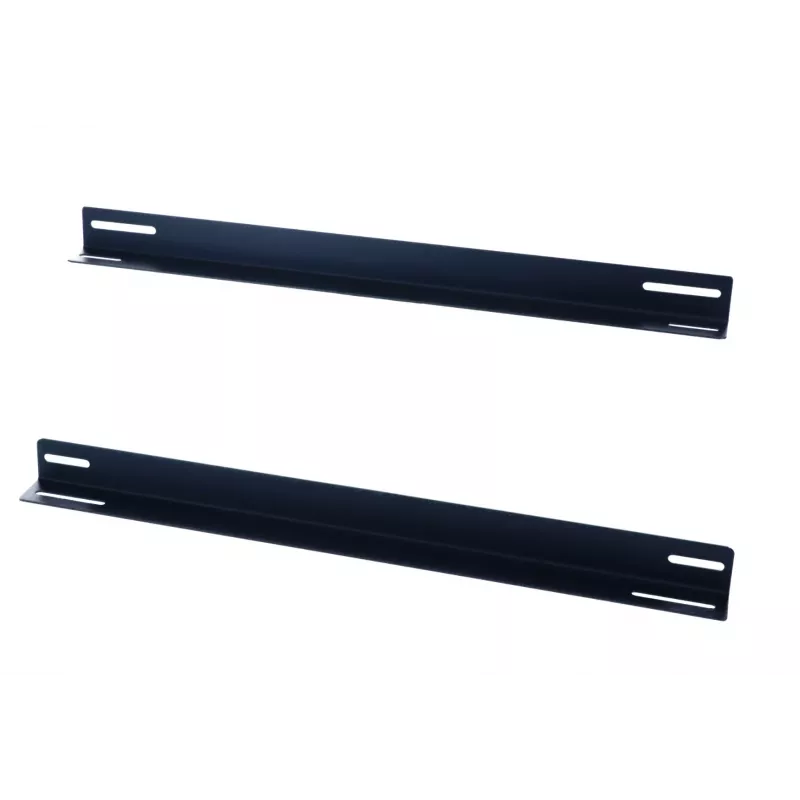

DSIT guide a rack 19" per armadi a parete profondi 450 mm (set da 2, nero, acciaio)

For 450 mm deep wall cabinets, the DSIT DS-LS45W rack rails offer a straightforward, robust mounting solution where standard sliding rails or heavy-duty shelves are overkill. Unlike universal kits that require drilling or adapters, these fixed L-profile rails bolt directly onto the existing 19-inch profiles, turning unused vertical space into a practical equipment bay for patch panels, small switches, or non-rackmount devices.

Highlights

• EIA-310-D compliant 19" mounting standard
• Set of two steel rails with black powder-coated finish
• Fixed L-profile design installs directly onto cabinet profiles
• Optimised for 450 mm deep enclosures, but suitable for many standard wall cabinets
• Corrosion-resistant coating for long-term durability

In daily use

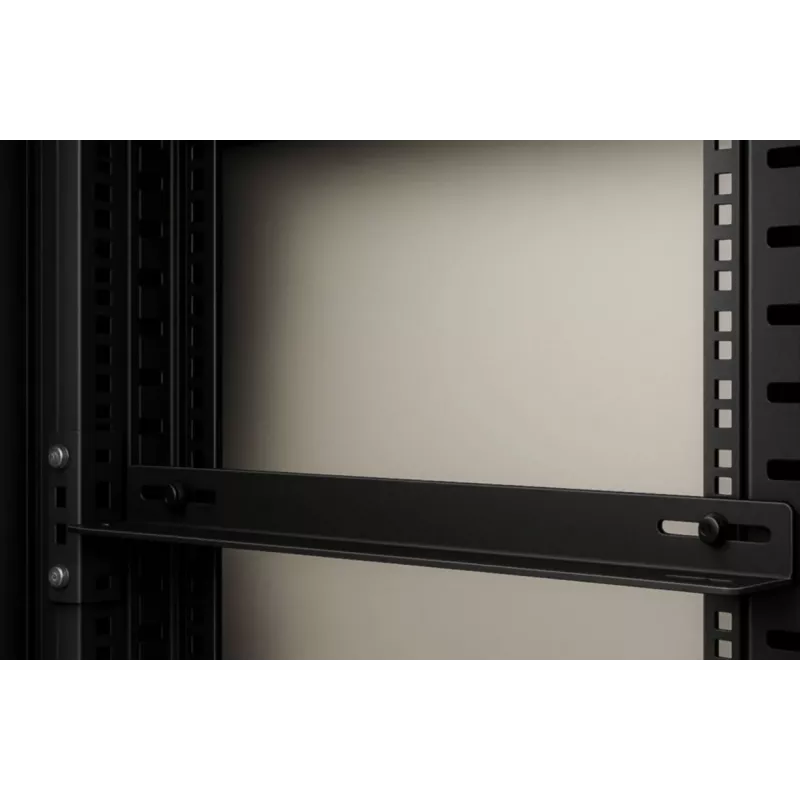

Each rail measures approximately 400 mm in length, 40 mm in width, and 20 mm in height, providing ample support for lightweight rackmount equipment, shelves, or custom mounting plates. The fixed design means no moving parts to wear out or misalign—simply secure the rails to the cabinet's vertical profiles and attach your equipment using standard cage nuts and screws. The black powder coating not only matches most cabinet interiors but also protects against scratches and environmental wear.

Full specifications

• Product type: Rack rails
• Rack standard: 19 inch
• Cabinet depth compatibility: 450 mm
• Quantity: Set of 2 rails
• Material: Steel
• Colour: Black
• Mounting type: Fixed L-profile
• Installation: Mounts directly to 19-inch profiles of the cabinet
• Application: Supports non-rackmount equipment, shelves, or light rackmount devices
• Length (each rail): Approx. 400 mm
• Profile width (each rail): Approx. 40 mm
• Profile height (each rail): Approx. 20 mm
• Compatibility: Designed for DSIT and other standard 19-inch wall cabinets
• EIA standard compliance: EIA-310-D compliant
• Finish: Powder-coated for corrosion resistance

Final note

When you need reliable, no-frills rack mounting in a shallow wall cabinet, these DSIT rails deliver exactly what's required—nothing more, nothing less.
