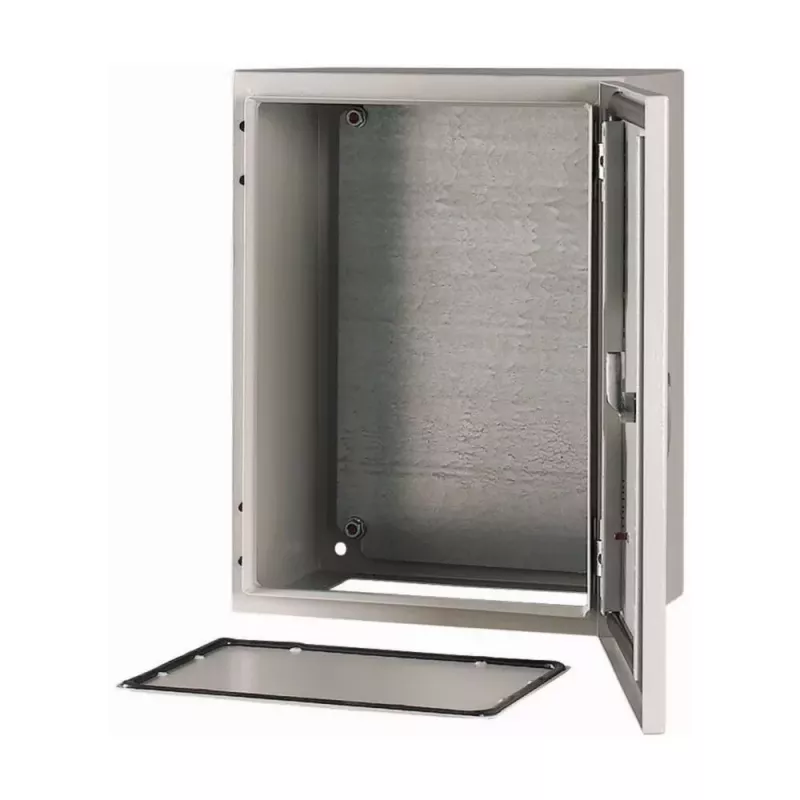

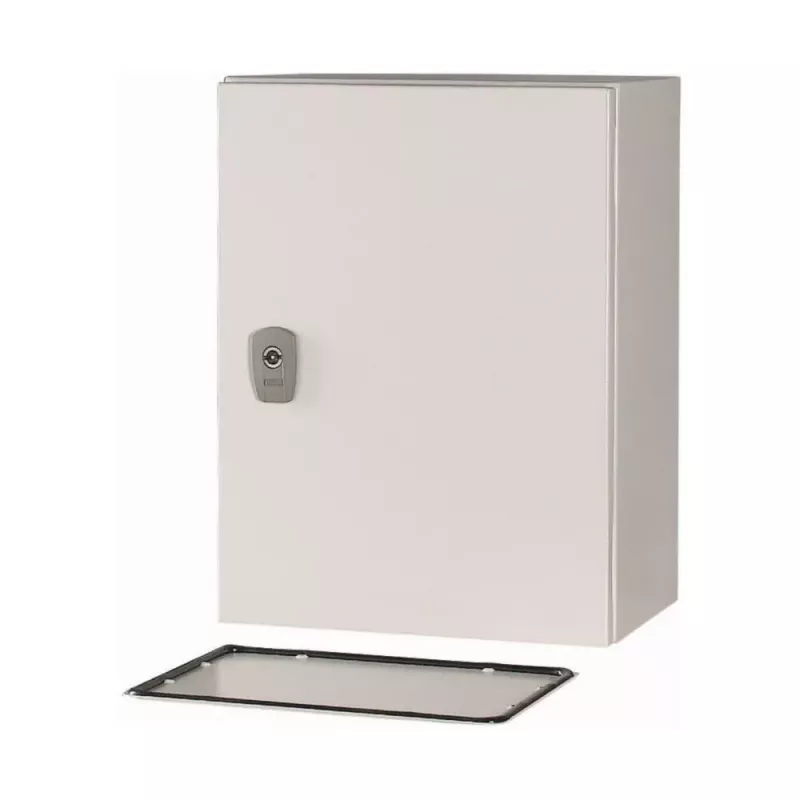

Eaton CS-43/200 custodia a parete grigio (111682)

Protecting electrical installations in dusty or damp environments is challenging without a robust enclosure. The Eaton CS-43/200 wall-mounted enclosure provides a secure, IP65-rated housing for 12 DIN modules, keeping components safe from water jets and dust ingress.

Who is it for

Electricians and panel builders needing a compact, surface-mounted distribution board for residential, commercial, or light industrial applications. Ideal for installations requiring a transparent door for easy inspection without exposing live parts.

Main features

• Wall-mounted design with pre-embossed metric knockouts (M20/M25/M32) for flexible cable entry.
• Transparent door allows visual monitoring of circuit breakers and indicators.
• Made from polycarbonate, offering high impact resistance (IK08) and self-extinguishing, halogen-free properties.
• Includes a 35mm DIN rail for standard module installation.
• Sealable door prevents unauthorized access.

Specifications

• Colour: Grey (RAL 7035)
• Number of modules: 12
• Number of rows: 1
• Rated insulation voltage: 1000 V AC / 1500 V DC
• Rated operational voltage: 400 V AC
• Glow wire test: 650 °C
• Operating temperature: -25 °C to +40 °C
• Storage temperature: -35 °C to +70 °C

Tips

For outdoor or washdown areas, pair with appropriate cable glands to maintain the IP65 seal. Ensure the mounting surface is flat and capable of supporting the enclosure weight when fully equipped.
