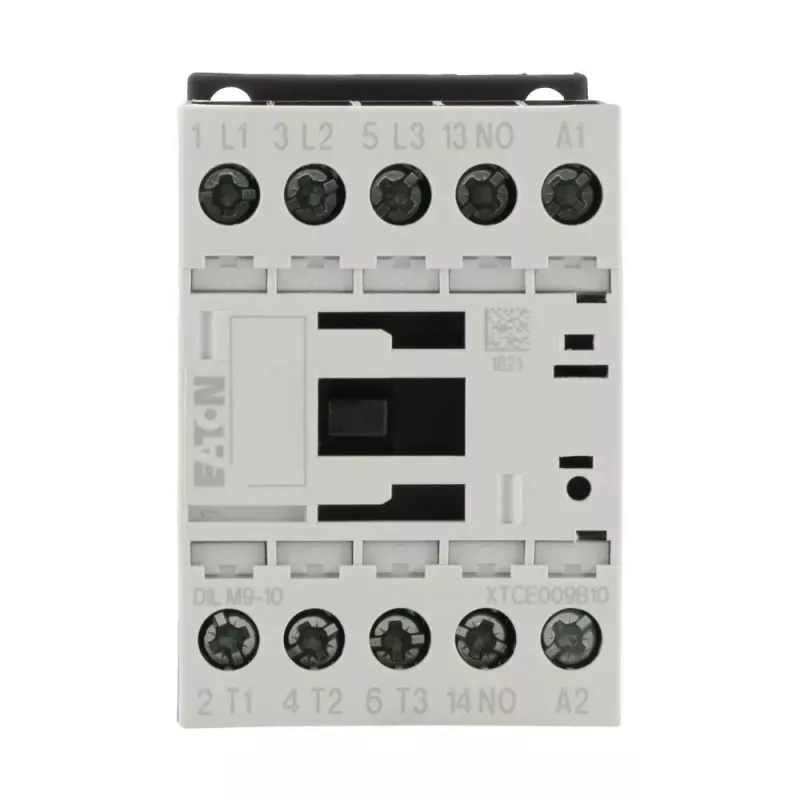

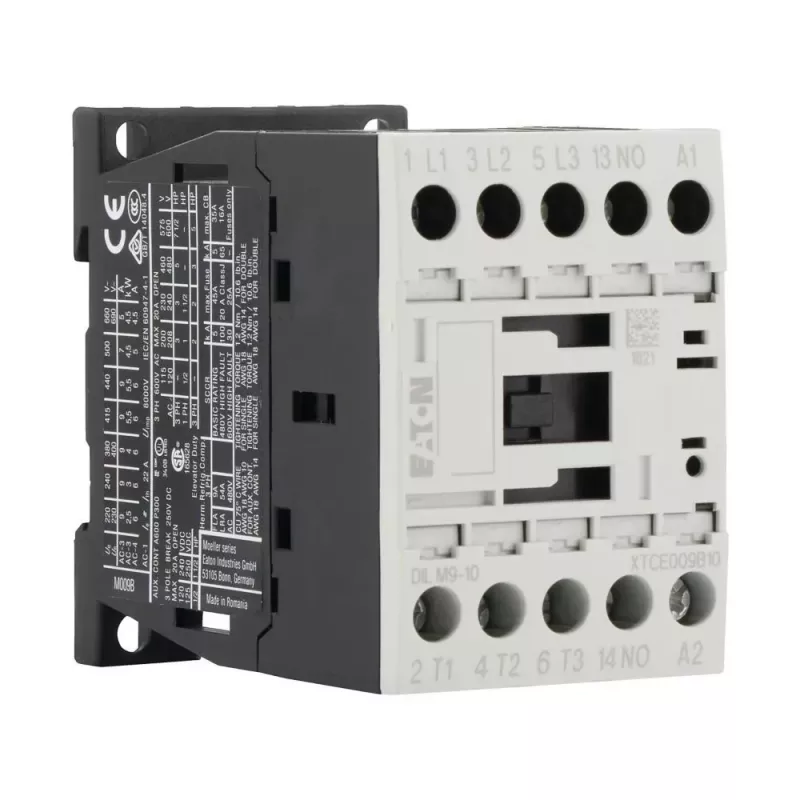

Eaton DILM9-10 230V 50/60Hz contattore di potenza, 3 poli, 9A, 1NO, IP20 276698

Rated for 9 A at AC-3 (400 V) and 4 kW, the Eaton DILM9-10 contactor delivers reliable switching for motors and resistive loads. Its 230 V AC coil operates at 50/60 Hz, making it suitable for a wide range of industrial control applications.

Overview

The Eaton DILM9-10 is a 3-pole power contactor with one normally open auxiliary contact. It is designed for DIN rail or screw mounting and features screw terminals for secure wiring. The contactor is rated IP20 and operates within a temperature range of -25 to +60 °C.

What stands out

• High electrical durability: 1.5 million operations at AC-3
• Mechanical life of 10 million operations
• Rated insulation voltage of 690 V and impulse withstand of 6 kV
• Short-circuit withstand current of 100 A for 1 second
• Compact dimensions: 45 mm width, 68 mm height

Technical details

• Rated operational current (AC-3, 400 V): 9 A
• Rated operational power (AC-3, 400 V): 4 kW
• Rated operational current (AC-1, 400 V): 22 A
• Coil voltage: 230 V AC, 50/60 Hz
• Number of main poles: 3
• Auxiliary contacts: 1 NO
• Mounting: DIN rail or screw
• Terminal type: screw terminals
• Standards: IEC/EN 60947

Our verdict

A robust and compact contactor for standard motor control tasks, offering proven Eaton quality and long service life.
