EATON FAK-R/V/KC11/IY interruttore a pedale/a mano, 1NO, 6A, 230V AC, IP67, giallo 229748

Rated at 6 A and 230 V AC, the EATON FAK-R/V/KC11/IY is a robust foot/palm switch designed for demanding industrial environments. Its IP67-rated housing ensures reliable operation even in wet or dusty conditions.

Overview

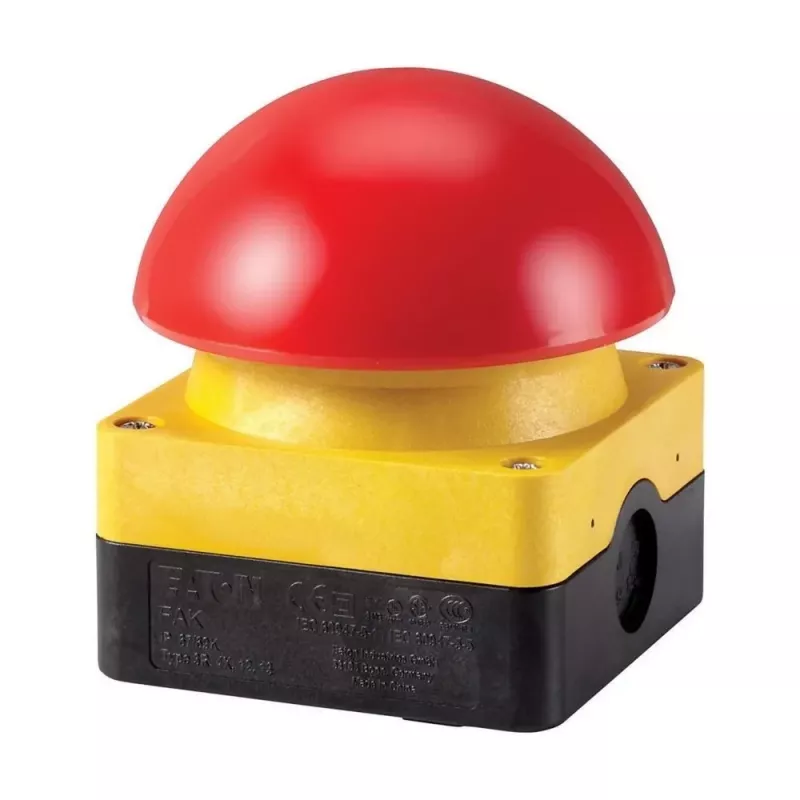

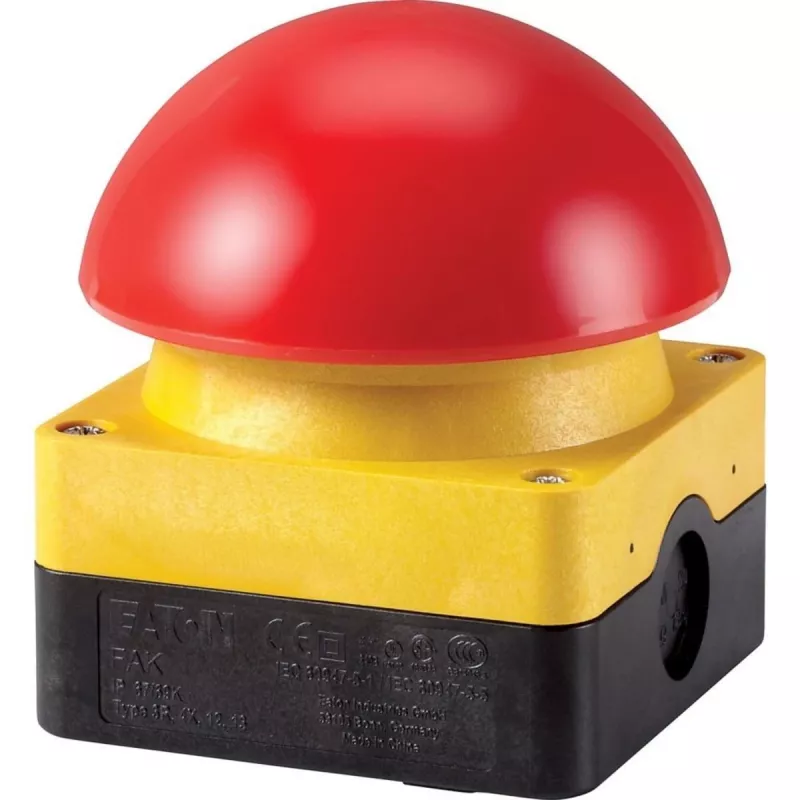

This momentary mushroom-head switch features a red actuator on a yellow insulated plastic housing. It provides one normally open (NO) contact and is suitable for floor or surface mounting. Connection is via screw terminals, with a single M20 cable entry.

What stands out

• High protection degree IP67 for harsh environments
• Large 95 mm mushroom head for easy activation
• Wide operating temperature range from -25 to +70 °C
• Rated insulation voltage up to 500 V and impulse withstand 6 kV

Technical details

• Product type: Foot/Palm Switch
• Actuator type: Mushroom Head
• Operation mode: Momentary (push-to-make)
• Actuator colour: Red
• Housing colour: Yellow
• Contact configuration: 1 NO
• Rated operational voltage: 400 V AC max
• Rated operational current: 6 A at 230 V AC (AC-15)
• Rated insulation voltage: 500 V
• Rated impulse withstand voltage: 6 kV
• Protection degree: IP67
• Connection type: Screw terminals
• Mounting type: Floor / Surface mount
• Housing material: Insulated plastic
• Mushroom head diameter: 95 mm
• Cable entry: 1 x M20
• Operating temperature: -25 to +70 °C

Our verdict

A reliable and durable control device for industrial automation, offering high protection and easy operation.
