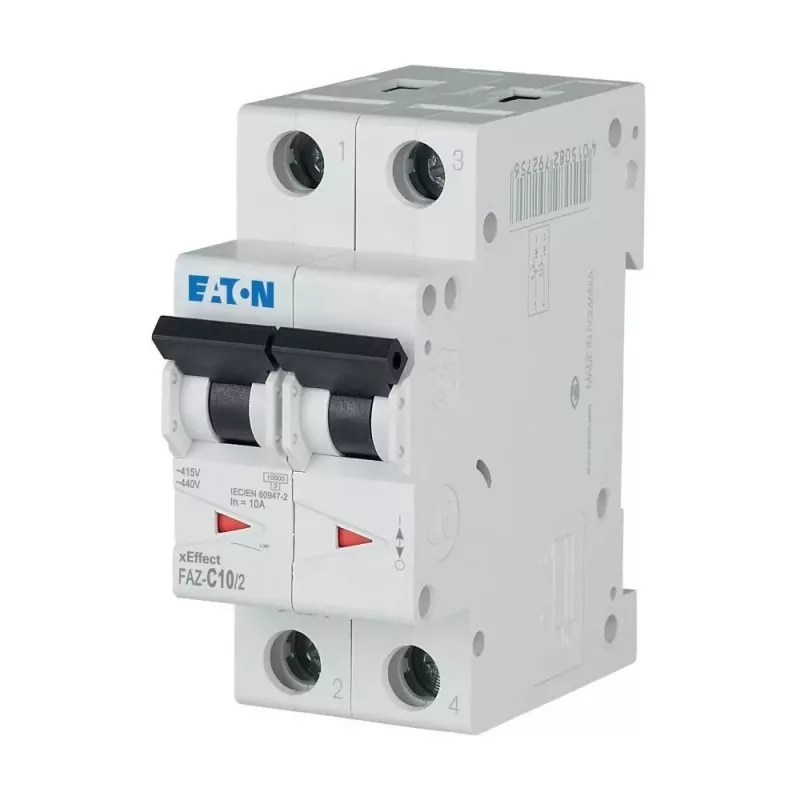

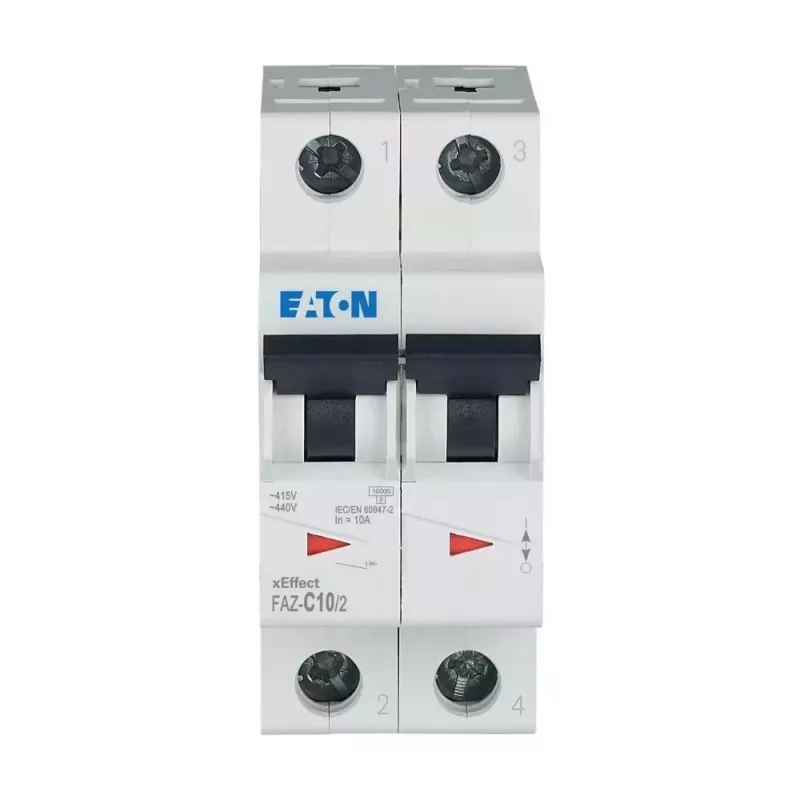

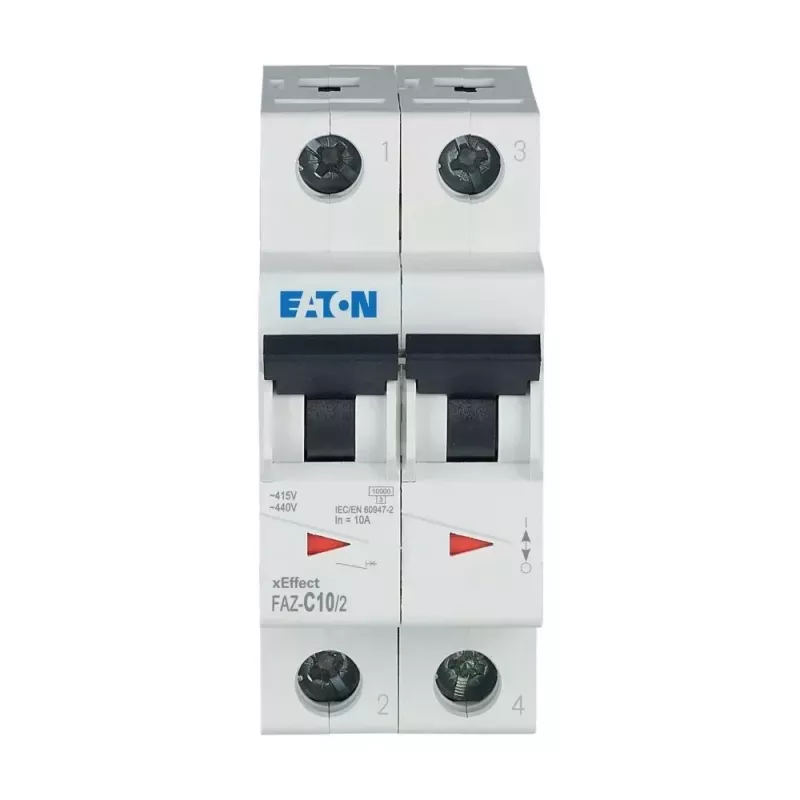

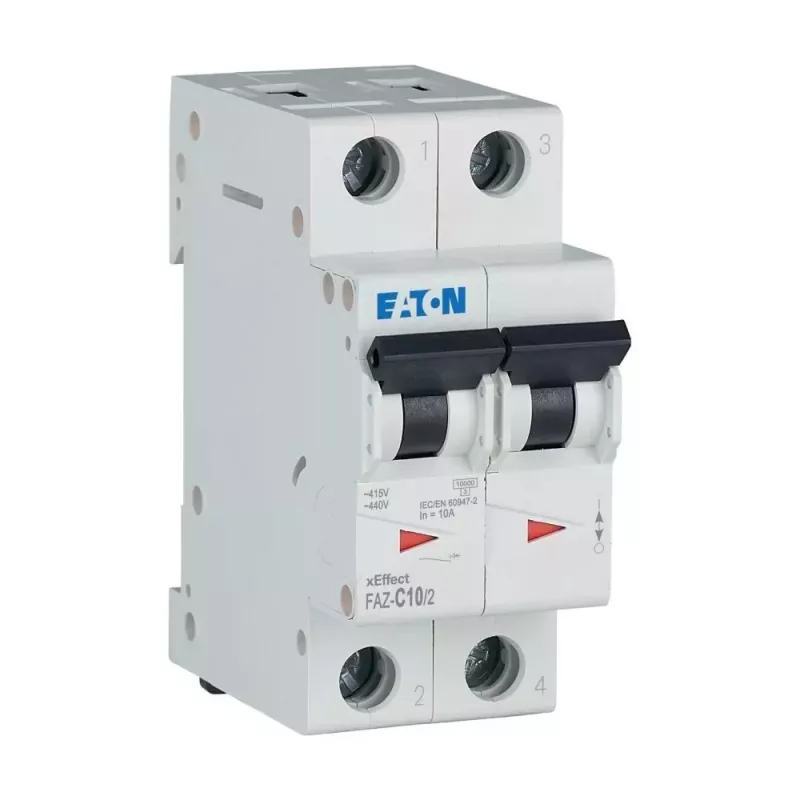

Eaton FAZ-C10/2 interruttore automatico (MCB), 10 A, 2 poli, tipo C, 400 V AC, 10 kA 278756

In commercial and industrial electrical distribution boards, the Eaton FAZ-C10/2 miniature circuit breaker protects circuits against overload and short-circuit. This 2-pole MCB with a rated current of 10 A and type C tripping characteristic is suitable for DIN rail mounting and ensures reliable protection for motors, transformers, and other loads with moderate inrush currents.

Key specifications

• Rated current: 10 A
• Number of poles: 2
• Tripping characteristic: Type C
• Rated voltage (AC): 400 V
• Rated breaking capacity: 10 kA
• Frequency: 50/60 Hz
• Mounting type: DIN rail
• Module width: 2 TE (2 modules)
• Degree of protection (terminals): IP20
• Degree of protection (front): IP40
• Standard compliance: IEC/EN 60898-1
• Electrical life: >10,000 operations
• Mechanical life: >20,000 operations
• Terminal type: Screw terminals
• Terminal capacity (solid): 1-25 mm²
• Terminal capacity (flexible): 1-16 mm²
• Ambient operating temperature: -25 to +75 °C
• Energy limiting class: 3
• Overvoltage category: III
• Pollution degree: 2

Why choose it

The FAZ-C10/2 offers high breaking capacity and reliable performance in a compact 2-module design. Its type C characteristic handles moderate inrush currents, making it ideal for a wide range of applications. The robust construction and compliance with IEC/EN 60898-1 ensure long-term dependability.

Ideal use cases

• Protection of control circuits in industrial machinery
• Distribution boards in commercial buildings
• Circuits with motors, transformers, or lighting loads
• DIN rail installations requiring a 2-pole MCB

Good to know

The device is designed for screw terminal connection, accommodating solid conductors up to 25 mm² and flexible conductors up to 16 mm². It operates reliably across a wide temperature range from -25 °C to +75 °C.
