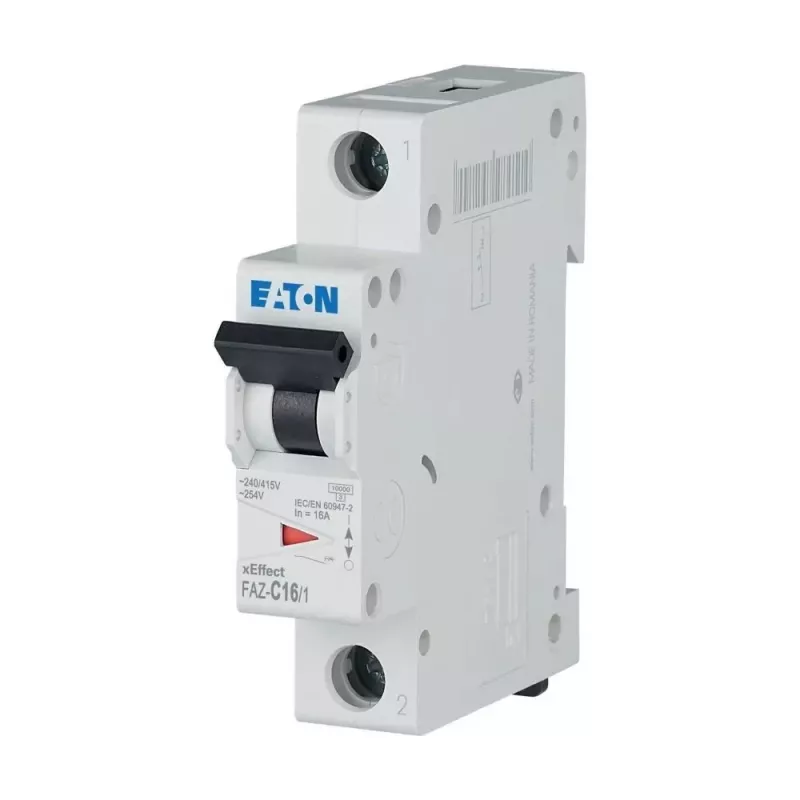

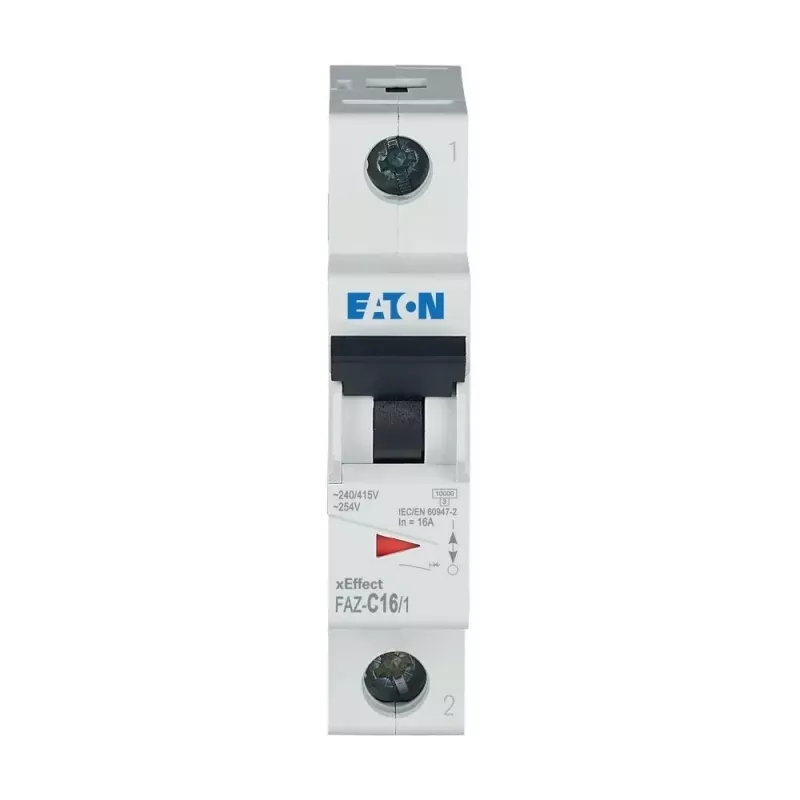

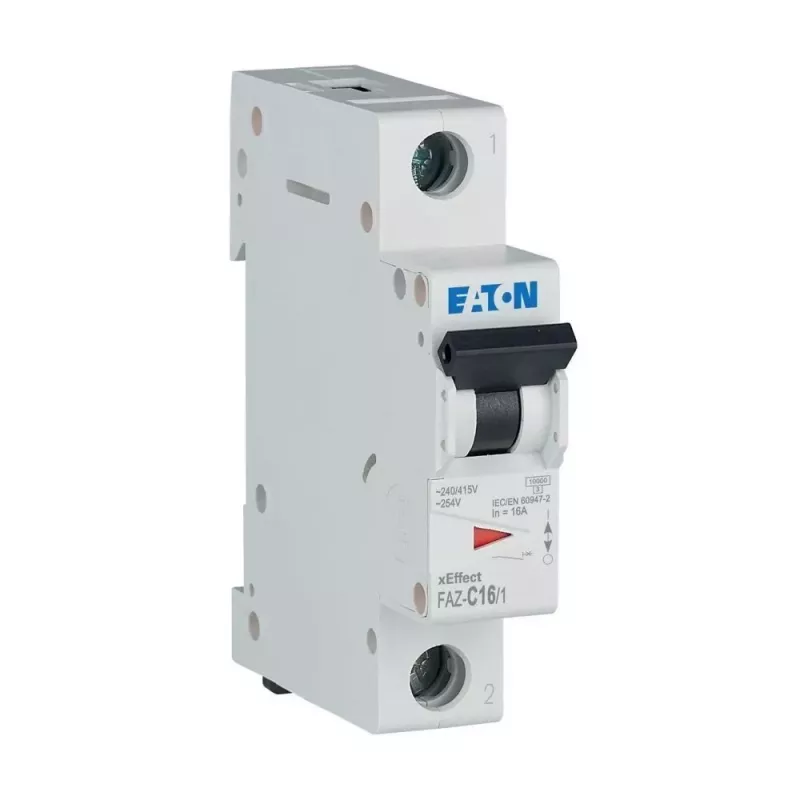

Eaton FAZ-C16/1 interruttore automatico magnetotermico (MCB), 1 polo, 16 A, curva C 278561

Protecting circuits against overload and short-circuit currents is a fundamental requirement in electrical installations. The Eaton FAZ-C16/1 miniature circuit breaker reliably disconnects faulty circuits, preventing damage to wiring and connected equipment. Its C tripping characteristic is optimized for applications with moderate inrush currents, such as lighting circuits and socket outlets.

Who is it for

This MCB is intended for electricians, panel builders, and maintenance technicians who need a dependable protective device for residential, commercial, and light industrial distribution boards. It is suitable for DIN rail mounting and complies with IEC/EN 60898-1.

Main features

• 1-pole design for single-phase circuits
• Rated current 16 A, tripping characteristic C
• Breaking capacity 6 kA at 230/400 V AC
• For DIN rail mounting (EN 60715)
• Terminal capacity 1–25 mm² for solid or stranded conductors
• High electrical and mechanical endurance

Specifications

• Number of poles: 1
• Rated current: 16 A
• Tripping characteristic: C
• Rated voltage: 230/400 V AC
• Rated frequency: 50/60 Hz
• Rated breaking capacity: 6 kA
• Energy limitation class: 3
• Mounting type: DIN rail (EN 60715)
• Terminal capacity: 1–25 mm²
• Degree of protection (installed): IP40
• Degree of protection (terminals): IP20
• Standards: IEC/EN 60898-1
• Operating temperature range: -25 to +75 °C
• Electrical endurance: >10,000 switching cycles
• Mechanical endurance: >20,000 switching cycles

Tips

Always verify that the short-circuit current at the installation point does not exceed the breaker’s breaking capacity. Select the tripping characteristic according to the expected inrush currents of the connected loads.
