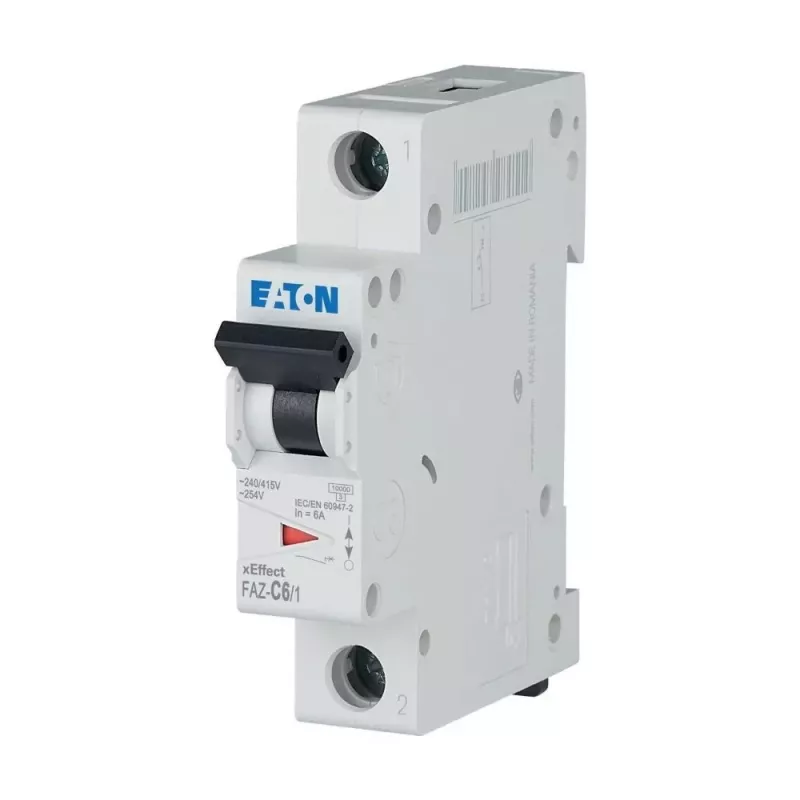

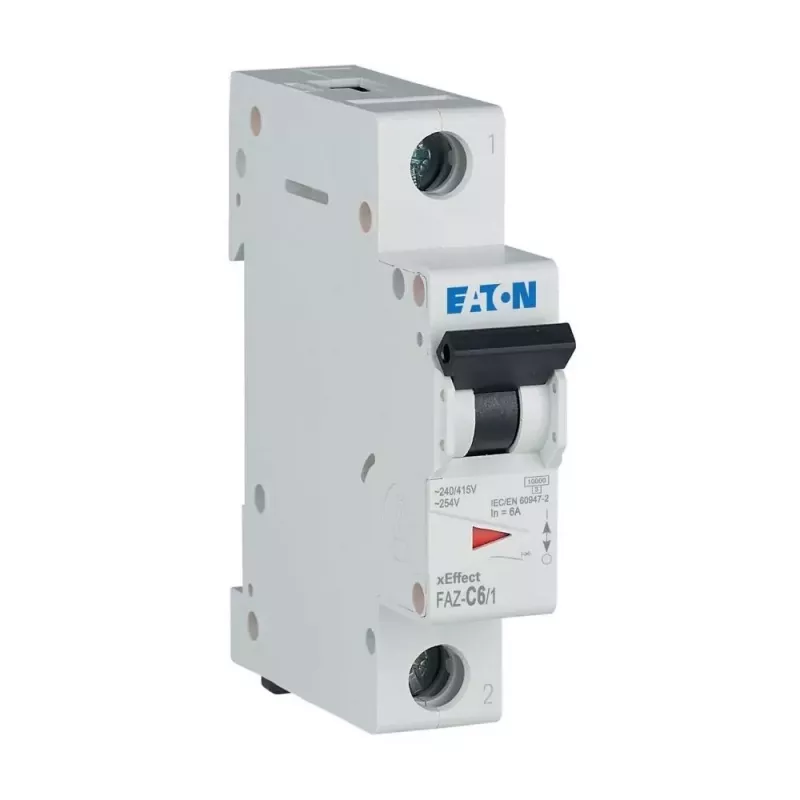

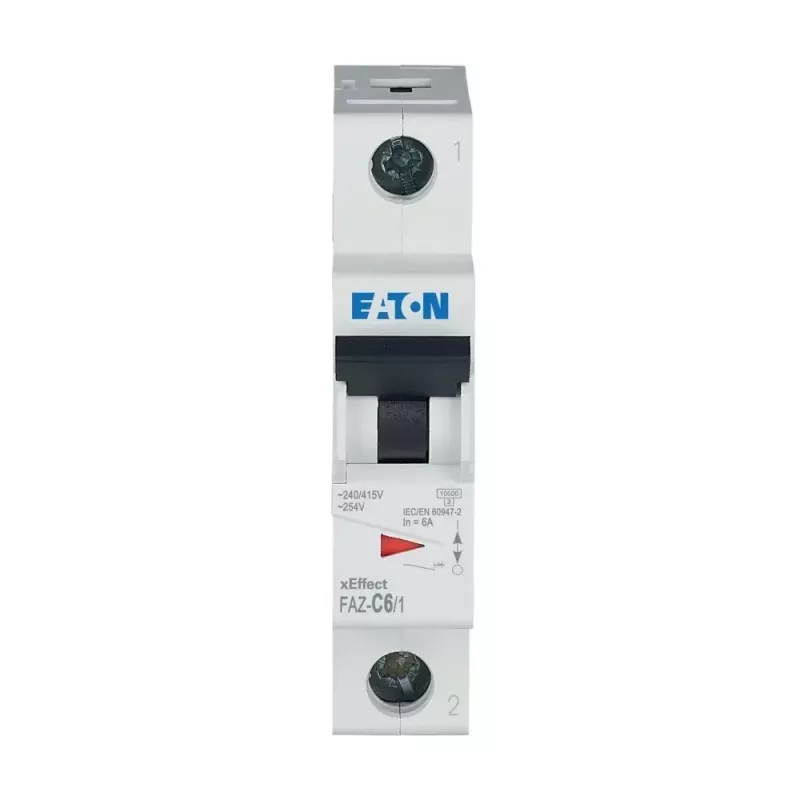

Eaton FAZ-C6/1 interruttore automatico magnetotermico tipo C 6 A 1 polo 278555

Miniature circuit breaker (MCB) with C tripping characteristic, rated at 6 A, 1-pole. Provides reliable overcurrent and short-circuit protection in final distribution circuits, with a breaking capacity of 10 kA and DIN rail mounting for quick installation.

Advantages

High breaking capacity of 10 kA ensures safe interruption of fault currents. Energy limitation class 3 reduces let-through energy, protecting downstream equipment. Screw terminals accept a wide range of conductor sizes up to 25 mm² solid, simplifying wiring.

Suitable for

• Protection of lighting and socket circuits in residential and commercial buildings
• Control circuits and small motors with moderate inrush currents
• Distribution boards with DIN rail mounting (EN 60715)

Key specifications

• Rated current: 6 A
• Tripping characteristic: C
• Number of poles: 1
• Rated voltage: 230/400 V AC
• Rated breaking capacity: 10 kA
• Frequency: 50/60 Hz
• Mounting: DIN rail
• Terminal capacity: 1–25 mm² solid, 1–16 mm² stranded
• Module width: 1 TE (17.5 mm)
• Operating temperature: -25 to +75 °C

Recommendations

For circuits with high inrush currents (e.g., motors, transformers), consider a type D MCB. Always verify selectivity with upstream protective devices.
