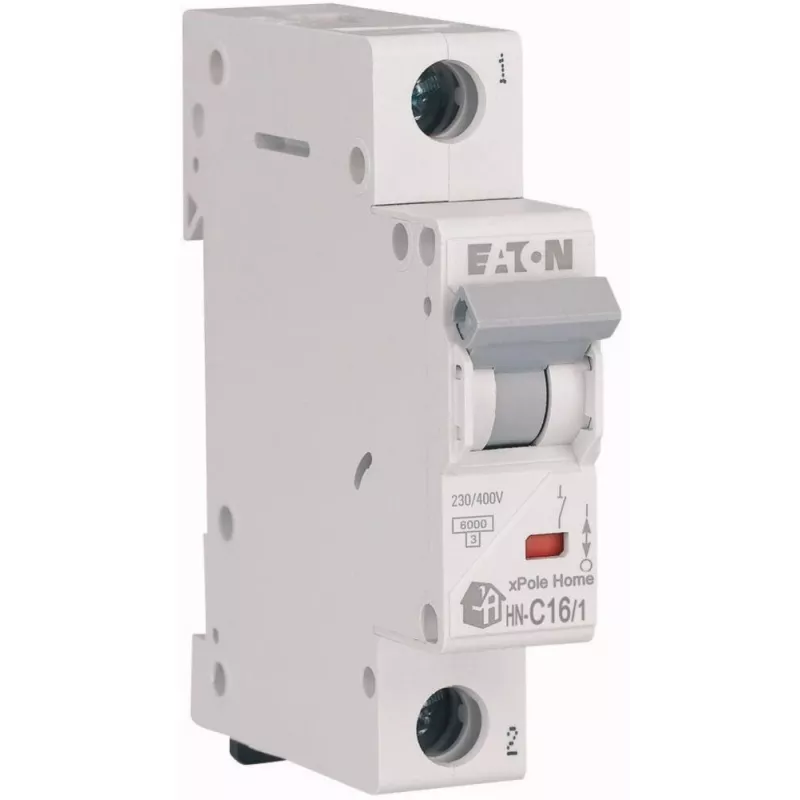

EATON HN-C16/1 interruttore automatico C 16A 1P 6kA

The EATON HN-C16/1 is a high-quality miniature circuit breaker (MCB) designed for overcurrent and short-circuit protection in residential and commercial electrical installations. With a rated current of 16 A and a tripping characteristic of C, it ensures reliable protection for circuits and equipment. This single-pole breaker occupies just 1 module width (18 mm) and is easy to install on DIN rails.

Advantages

Compact design saves space in distribution boards. The C-curve characteristic is ideal for circuits with moderate inrush currents, such as lighting and general outlets. High breaking capacity of 6 kA ensures safety under fault conditions. Compliant with EN 60898-1 for peace of mind.

Suitable for

• Overcurrent and short-circuit protection in residential and commercial electrical systems
• Protection of lighting circuits, socket outlets, and small appliances
• Use in distribution boards, sub-distribution boards, and consumer units

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Brand Series: HN
• Number of Poles: 1P (Single Pole)
• Tripping Characteristic: C
• Rated Current (In): 16 A
• Rated Voltage (Ue): 230 V AC
• Short-Circuit Breaking Capacity (Icn): 6 kA
• Frequency: 50/60 Hz
• Mounting Type: DIN Rail
• Module Width: 1 Module (18 mm)
• Standard Compliance: EN 60898-1
• Energy Limiting Class: 3
• Terminal Capacity (Solid/Stranded): 1-25 mm²
• Protection Degree (Terminals): IP20
• Ambient Operating Temperature: -25 to +55 °C
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Connection Type: Screw Terminals

Recommendations

For optimal protection, always select the correct rated current and tripping characteristic for your application. Ensure installation by a qualified electrician and comply with local regulations.
