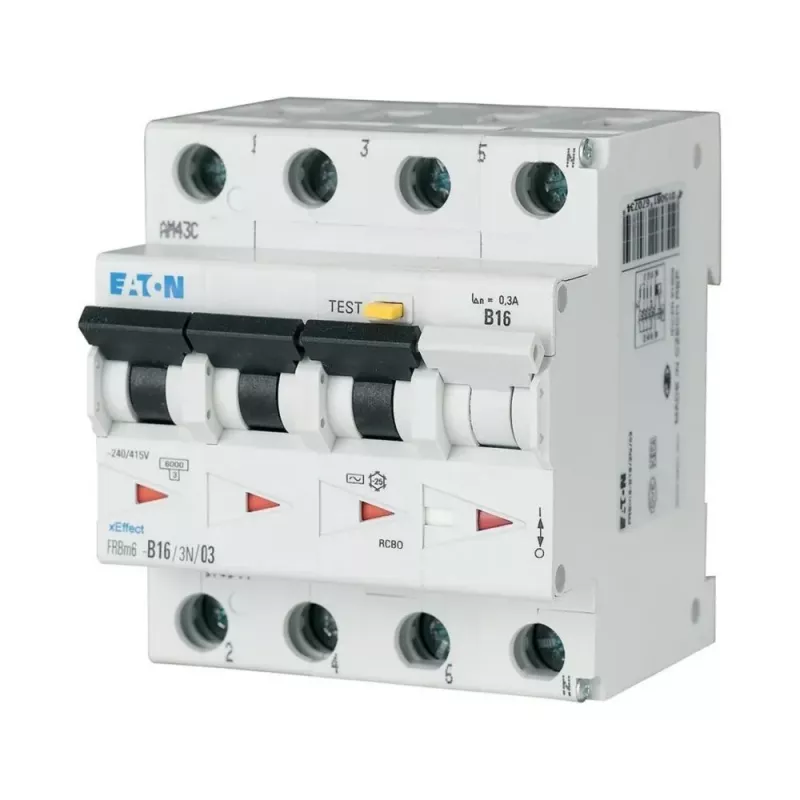

Eaton interruttore differenziale magnetotermico 16 A 100 mA LS C 3p+N FI A (170929)

Residual current circuit breaker with overcurrent protection (RCBO) that combines residual current protection and line protection in one device. It reliably protects against electric shock and overloads in three-phase plus neutral circuits.

Advantages

Combined residual current and overcurrent protection saves space on the DIN rail. Type A residual current detection covers alternating and pulsating direct residual currents.

Suitable for

• Three-phase and neutral circuits requiring residual current protection
• Industrial and commercial installations

Key specifications

• Rated current: 16 A
• Rated residual operating current: 100 mA
• Tripping characteristic: C
• Number of poles: 3P+N
• Rated voltage: 230/400 V AC
• Breaking capacity: 10 kA
• Module width: 4 modules (70 mm)

Recommendations

Install in distribution boards for reliable protection of circuits with electronic loads. Ensure correct wiring of neutral conductor.
