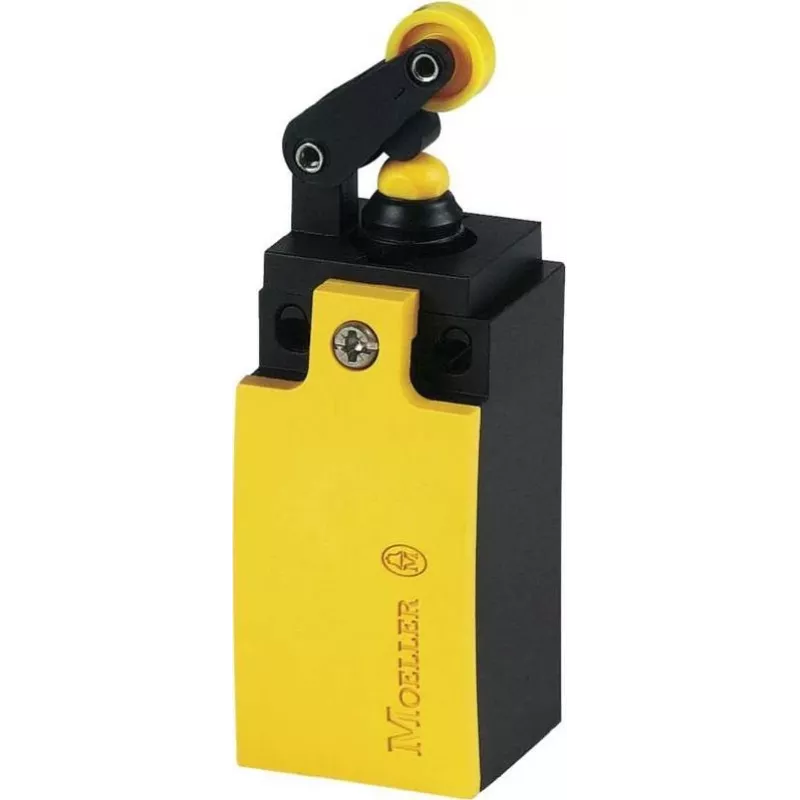

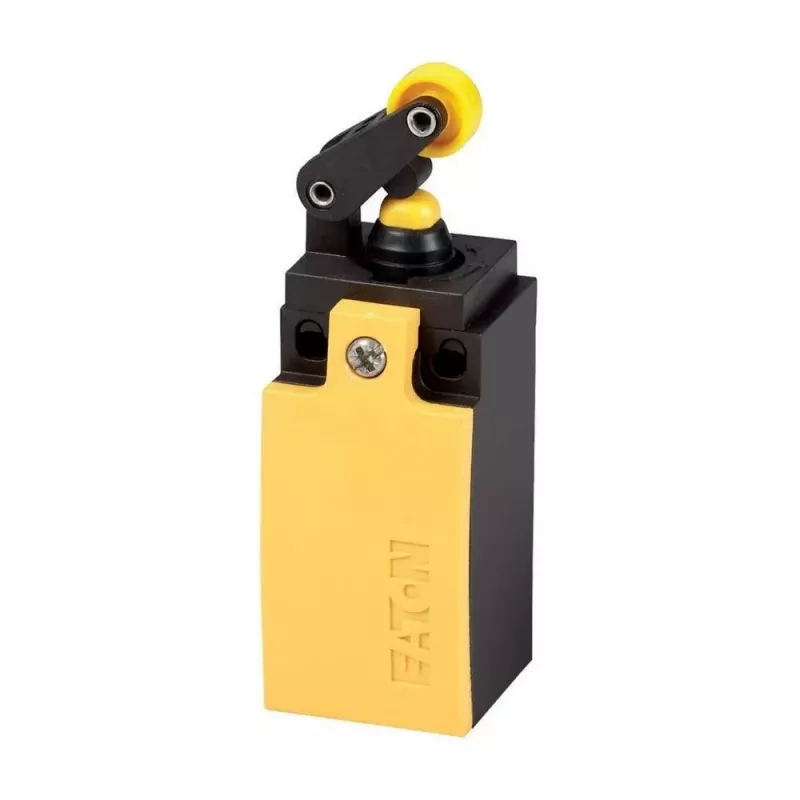

Eaton LS-11S/L finecorsa, leva a rullo regolabile, 400 V AC, 4 A, 1NO+1NC, IP67 266116

Rated for 400 V AC and 4 A, the Eaton LS-11S/L limit switch delivers reliable position sensing in demanding industrial environments. Its adjustable roller lever and IP67 sealed housing make it suitable for machine tools, conveyors, and automated systems.

Overview

The LS-11S/L is a momentary snap-action limit switch with one normally open and one normally closed contact. It is built into a die-cast aluminum housing and connects via screw terminals through an M20 x 1.5 cable entry.

What stands out

• Adjustable roller lever actuator for flexible mounting
• IP67 protection against dust and temporary immersion
• Long mechanical life: over 10 million operations
• Wide operating temperature range: -25 to +70 °C

Technical details

• Contact configuration: 1 NO + 1 NC
• Rated voltage/current: 400 V AC / 4 A; 250 V DC / 0.2 A
• Switching category: AC-15, DC-13
• Rated impulse withstand voltage: 4 kV
• Rated insulation voltage: 400 V
• Housing material: die-cast aluminum
• Connection: screw terminals, M20 x 1.5 cable entry
• Mounting: surface mount

Our verdict

A robust and precise limit switch for industrial automation, offering dependable performance and easy installation.
