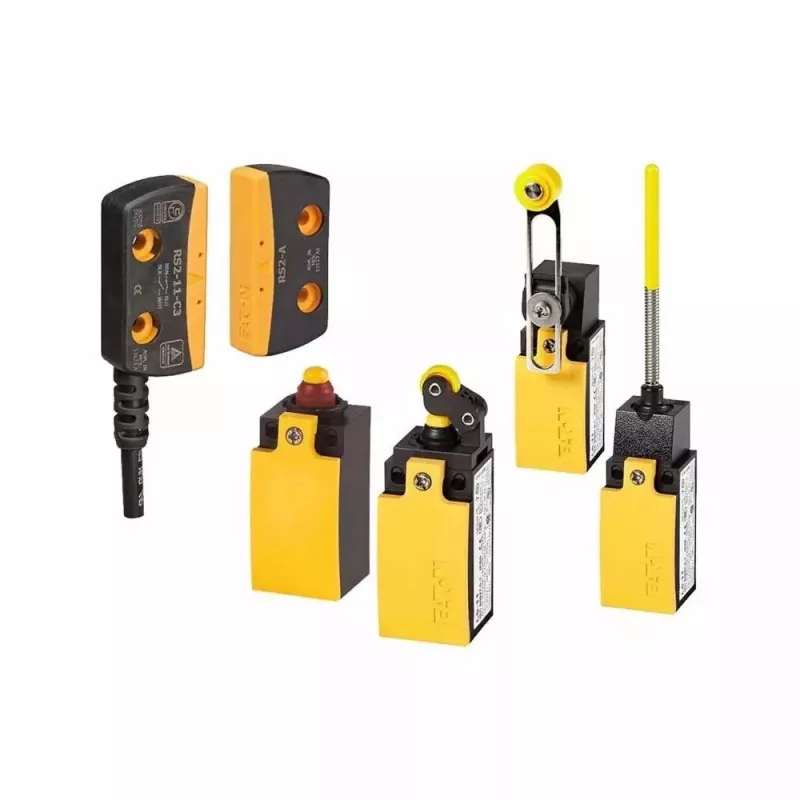

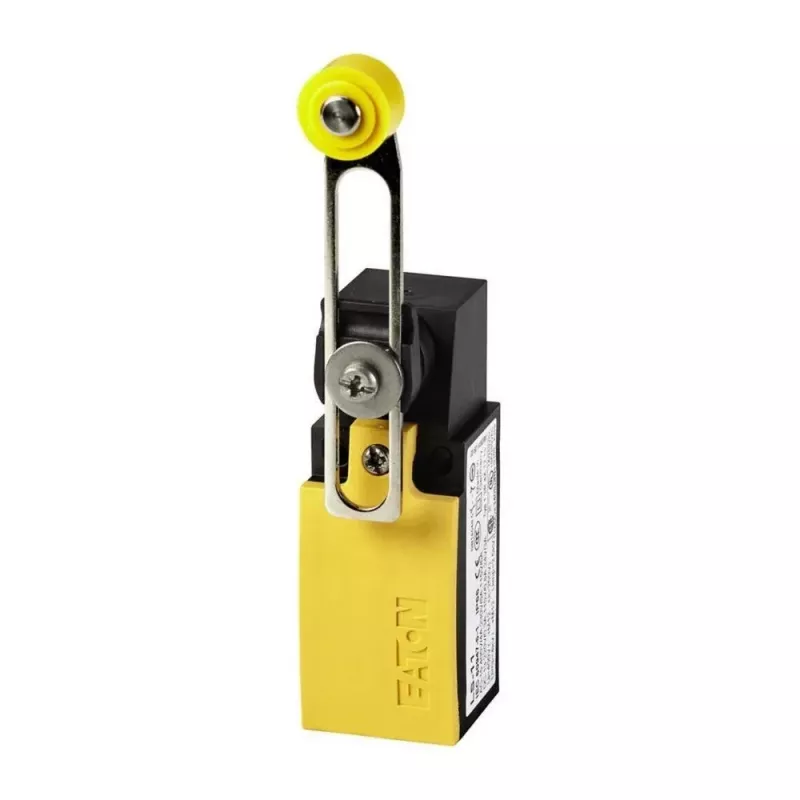

Eaton LS-S11/RLA interruttore di posizione, leva a rullo, 1NO+1NC, IP66/IP67, giallo 106790

In industrial automation, reliable position detection is critical for machine safety and process control. The Eaton LS-S11/RLA position switch provides dependable signalling for a wide range of applications, from conveyor systems to packaging machinery. Its robust thermoplastic housing and high protection rating ensure long service life even in demanding environments.

Who is it for

This position switch is intended for machine builders, system integrators, and maintenance engineers who need a rugged, precise limit switch for position sensing in industrial equipment. It is suitable for use in material handling, automation cells, and general machinery where environmental sealing and mechanical endurance are required.

Main features

• Roller lever actuator for smooth mechanical actuation
• 1 normally open (NO) and 1 normally closed (NC) contact for flexible circuit design
• IP66 and IP67 protection against dust and water ingress
• Thermoplastic housing in high-visibility yellow
• Wide operating temperature range from -25°C to 70°C
• Long mechanical life of 10 million operations

Specifications

• Product type: Position switch
• Actuator type: Roller lever
• Housing material: Thermoplastic
• Contact configuration: 1 NO + 1 NC
• Connection type: Screw terminals
• Rated operational current (AC-15, 230V): 6 A
• Rated operational current (DC-13, 230V): 0.1 A
• Rated insulation voltage: 500 V
• Rated impulse withstand voltage: 4 kV
• Operating temperature range: -25 to 70 °C
• Mechanical life: 10 x 10^6 operations
• Electrical life: 0.5 x 10^6 operations
• Cable entry: M20 x 1.5
• Mounting type: Base mounting
• Series: LS-Titan

Tips

Ensure proper alignment of the actuator with the moving part to avoid excessive mechanical stress. Use appropriate cable glands to maintain the IP rating. For frequent actuation, consider the electrical life rating when planning maintenance intervals.
