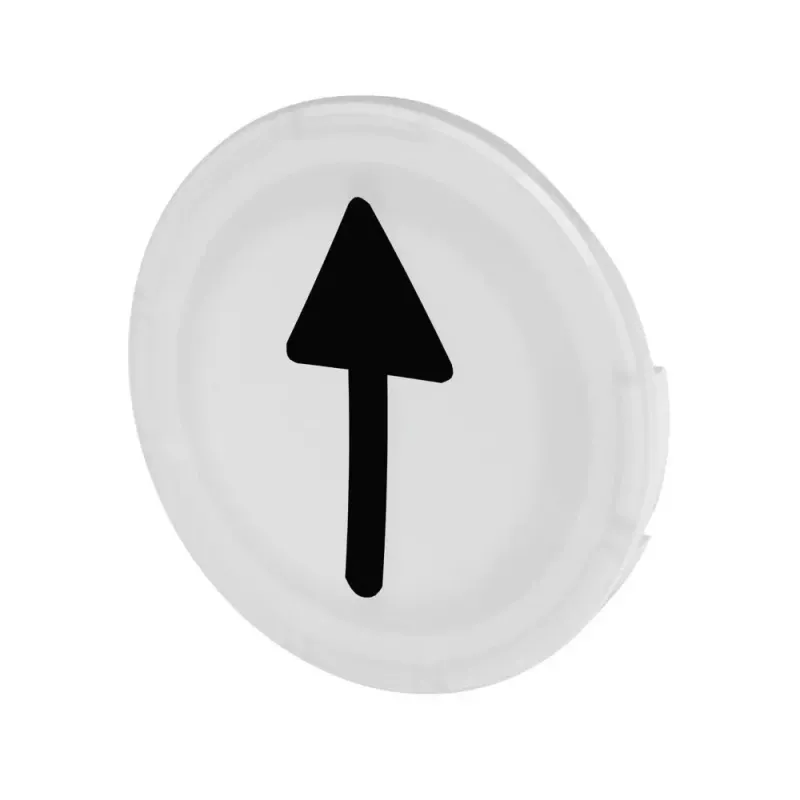

Eaton M22-XDL-W-X7 Lente piatta bianca per pulsante illuminato, 22,5 mm, IP69K 218305

This white flat lens is an accessory for Eaton M22 series illuminated pushbuttons, providing a clear, diffused indication surface for industrial control panels. Its high-grade plastic construction withstands harsh environments with front protection up to IP69K, ensuring reliable performance in washdown and outdoor applications.

Advantages

The lens features a flat, round design with a 29.7 mm front bezel, offering a modern appearance and easy cleaning. It is compatible with LED or incandescent light elements, allowing flexible illumination options. The material is halogen-free and RoHS compliant, supporting environmentally conscious installations.

Suitable for

• Industrial control panels and automation systems
• Machinery requiring high-pressure washdown resistance
• Outdoor equipment exposed to dust and moisture
• Replacement or customization of M22 pushbutton actuators

Key specifications

• Product type: Lens for illuminated pushbutton
• Series: Eaton M22
• Design: Flat
• Colour: White
• Shape: Round
• Mounting diameter: 22.5 mm
• Front bezel diameter: 29.7 mm
• Material: High-grade plastic
• Protection degree (front): IP66, IP67, IP69K
• Ambient operating temperature: -25 to +70 °C
• Ambient storage temperature: -40 to +80 °C
• Compatibility: Eaton M22 series actuators
• Standards: IEC/EN 60947-5-1, VDE 0660 Part 200

Recommendations

For best results, pair this lens with Eaton M22 LED elements to achieve uniform illumination and long service life. Ensure proper sealing to maintain the specified IP ratings in demanding environments.
