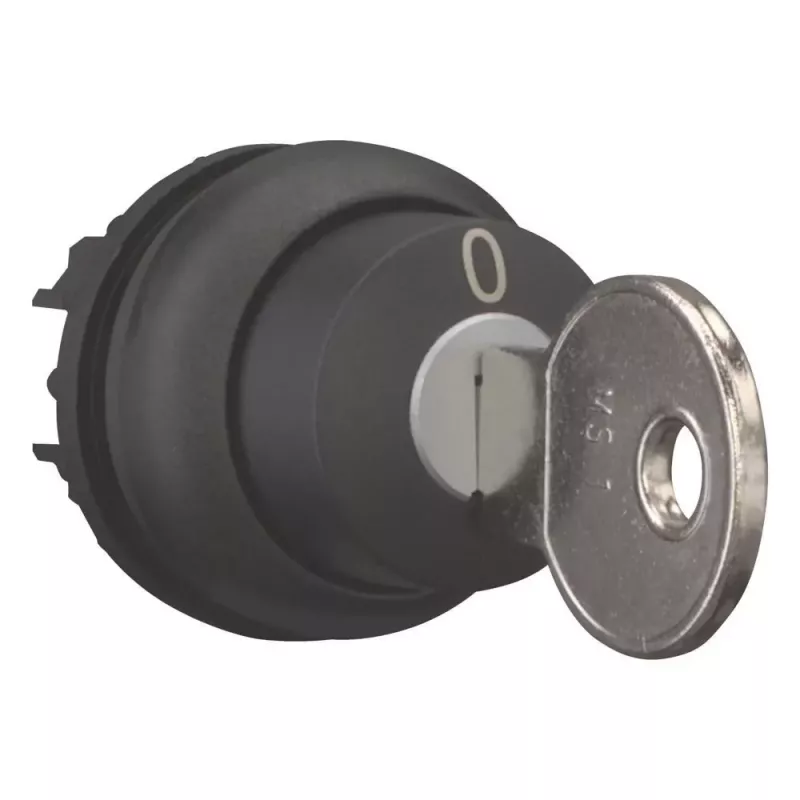

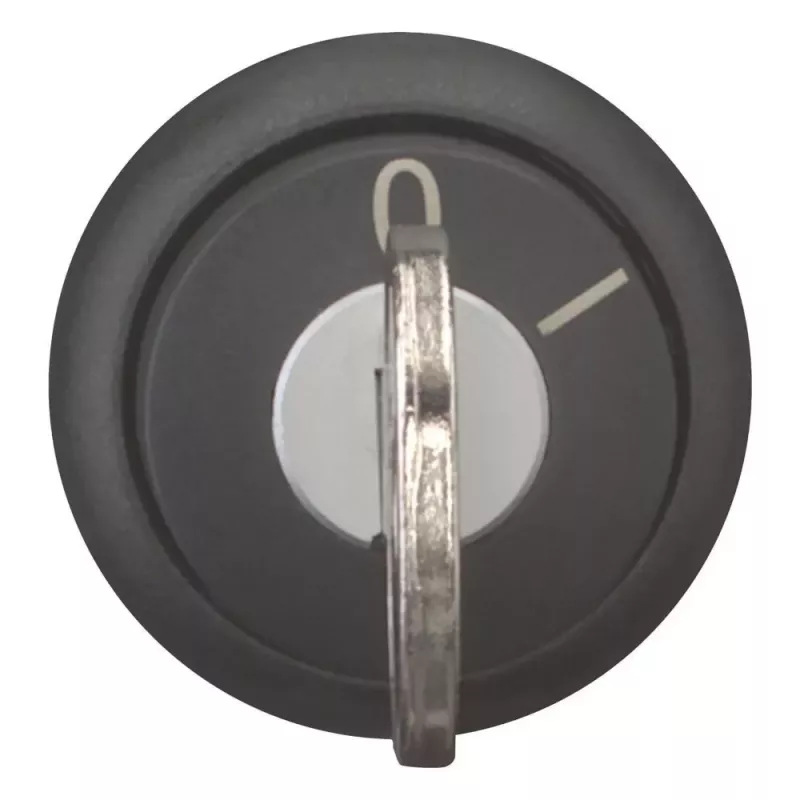

Eaton M22S-WS Selettore a chiave, 2 posizioni, a scatto, nero 216882

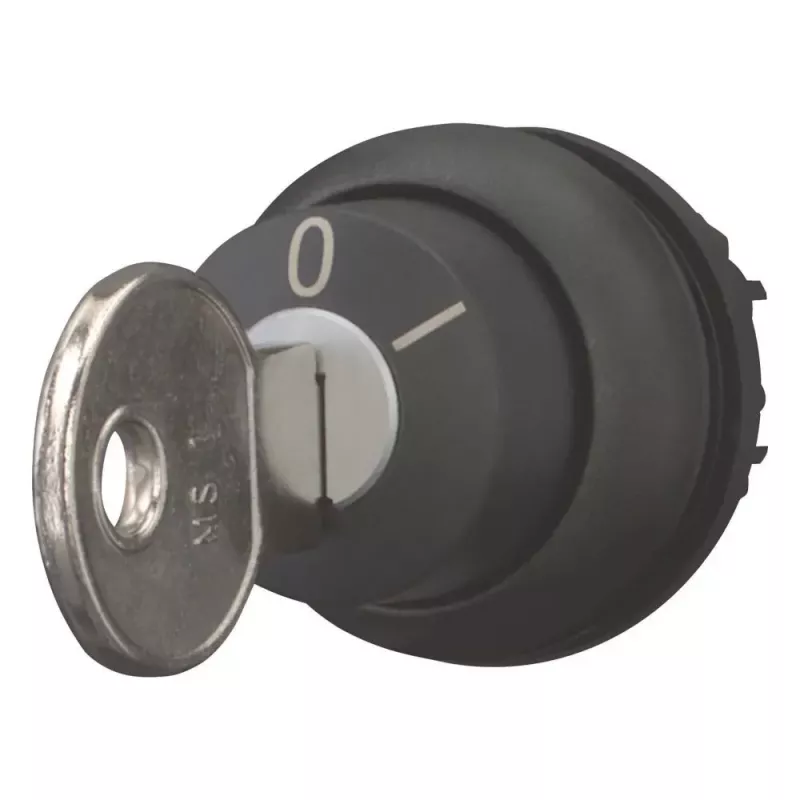

Key-operated selector switch from the Eaton M22 series, offering secure control with a maintained 2-position operation and 90° switching angle. The black actuator and plastic bezel provide a robust interface for industrial applications.

Advantages

High protection ratings (IP66, IP67, IP69K) ensure reliable performance in harsh environments. The switch supports up to 6 contact blocks (3 per adapter), providing flexibility for complex circuits. Includes two RONIS SB30 keys for authorized operation.

Suitable for

• Industrial control panels
• Machine tools
• Access control systems
• Automation equipment

Key specifications

• Series: M22
• Number of positions: 2
• Switching angle: 90°
• Operation type: Maintained (latching)
• Key removal position: Position 0
• Actuator colour: Black
• Bezel material: Plastic
• Mounting diameter: 22.5 mm
• Protection rating (front): IP66, IP67, IP69K
• Operating temperature: -25 to +70 °C
• Standards compliance: IEC/EN 60947
• Number of keys included: 2
• Key type: RONIS SB30
• Contact blocks included: No (sold separately)
• Max. number of contact blocks: 6 (3 per adapter)

Recommendations

Pair with Eaton M22 contact blocks and adapters for a complete switching solution. Verify key retention requirements before installation.
