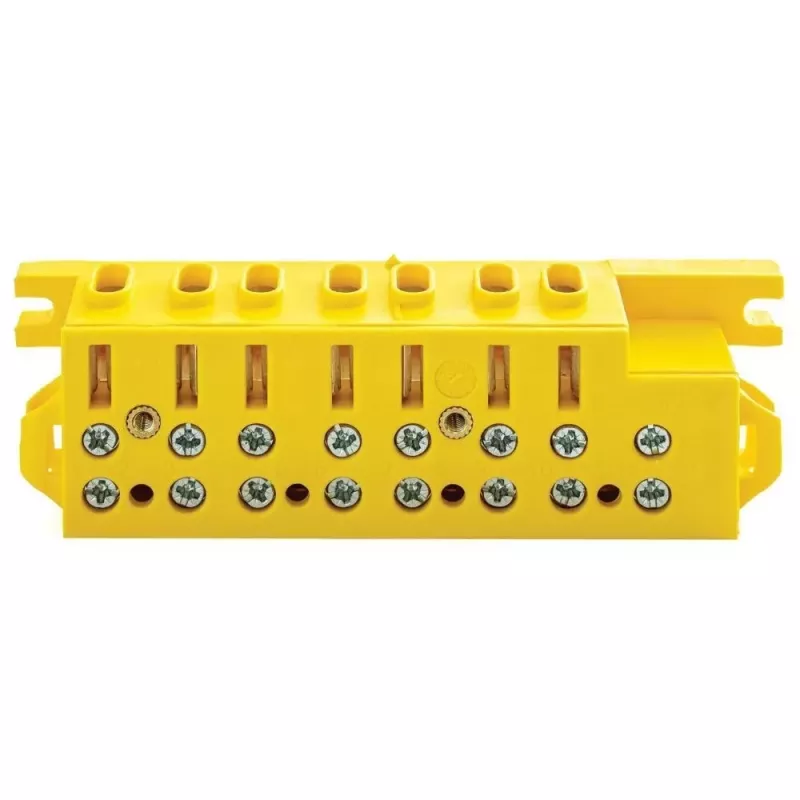

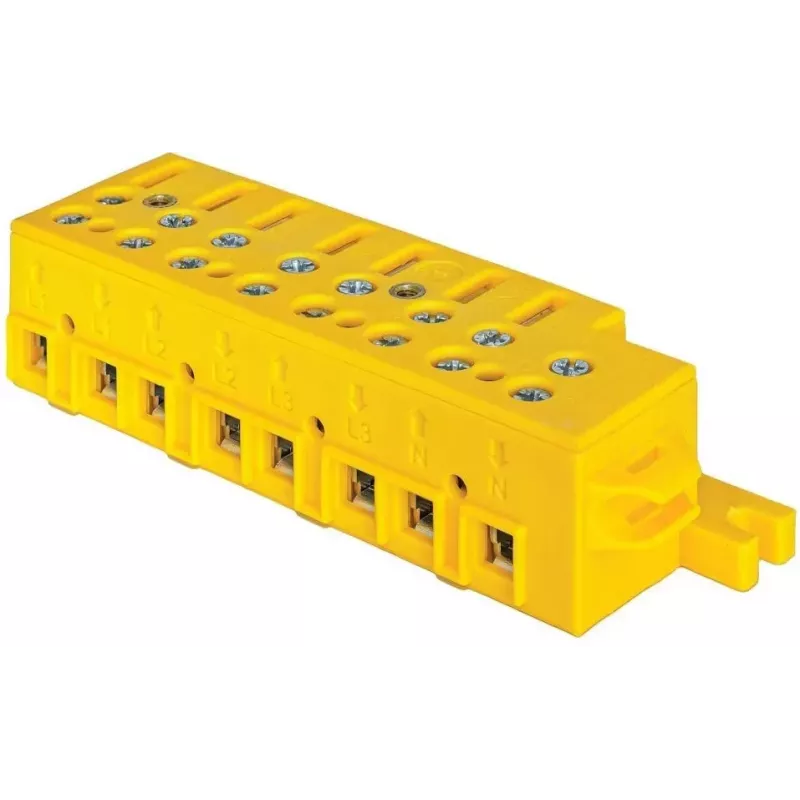

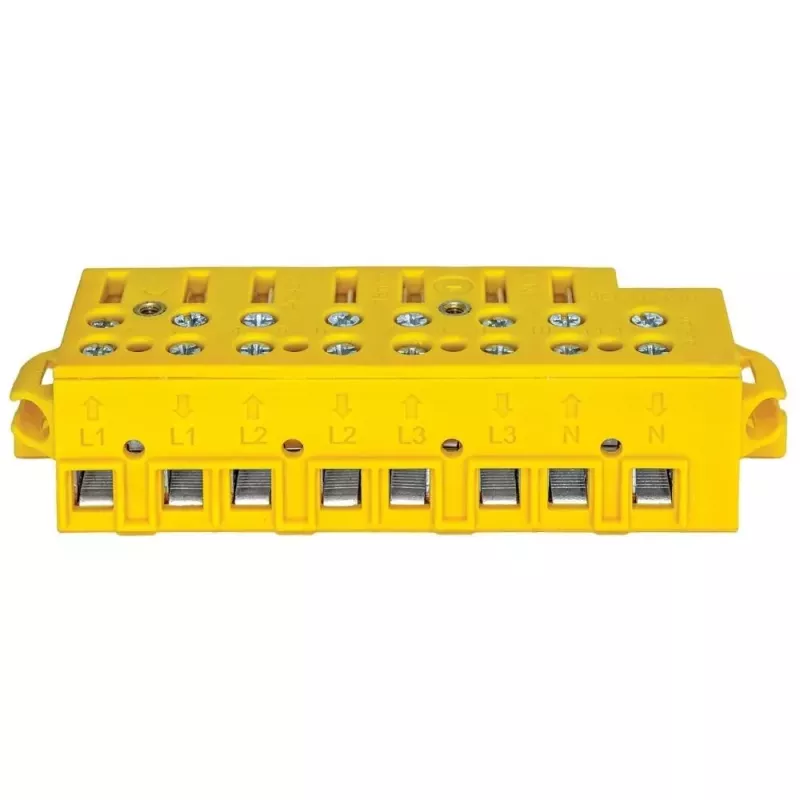

Eaton Morsetto a innesto per contatore ZSD-ZSK/DS (226450)

The Eaton ZSD-ZSK/DS meter plug terminal provides a direct plug-in connection for Eaton ZSD series energy meters, eliminating the need for additional wiring adapters. Its 4-pole design supports rated operational voltages up to 400 V AC and currents up to 63 A, making it suitable for standard energy metering applications.

Highlights

• Direct plug-in interface for Eaton ZSD series meters
• 4-pole configuration with screw terminals for secure wire connections
• Supports solid conductors from 1.5 to 16 mm² and flexible conductors from 1.5 to 10 mm²
• Operating temperature range from -25 to +55 °C
• Housing made of insulating plastic in grey

In daily use

Installation is straightforward: the terminal plugs directly onto the meter, and conductors are secured via screw terminals. The IP20 degree of protection is suitable for installation in dry, enclosed environments such as distribution boards. The terminal's compact design and robust construction ensure reliable long-term performance in metering applications.

Full specifications

• Product type: Meter plug terminal
• Application: Energy metering
• Compatibility: Eaton ZSD series energy meters
• Number of poles: 4
• Connection type (meter side): Plug-in
• Connection type (wire side): Screw terminal
• Rated operational voltage (Ue): 400 V AC
• Rated operational current (Ie): 63 A
• Connectable conductor cross-section (solid): 1.5 - 16 mm²
• Connectable conductor cross-section (flexible): 1.5 - 10 mm²
• Mounting method: Direct plug-in
• Degree of protection: IP20
• Operating temperature range: -25 to +55 °C
• Housing material: Insulating plastic
• Colour: Grey

Final note

The Eaton ZSD-ZSK/DS is a purpose-built accessory that ensures a reliable and efficient connection between your energy meter and the electrical installation.
