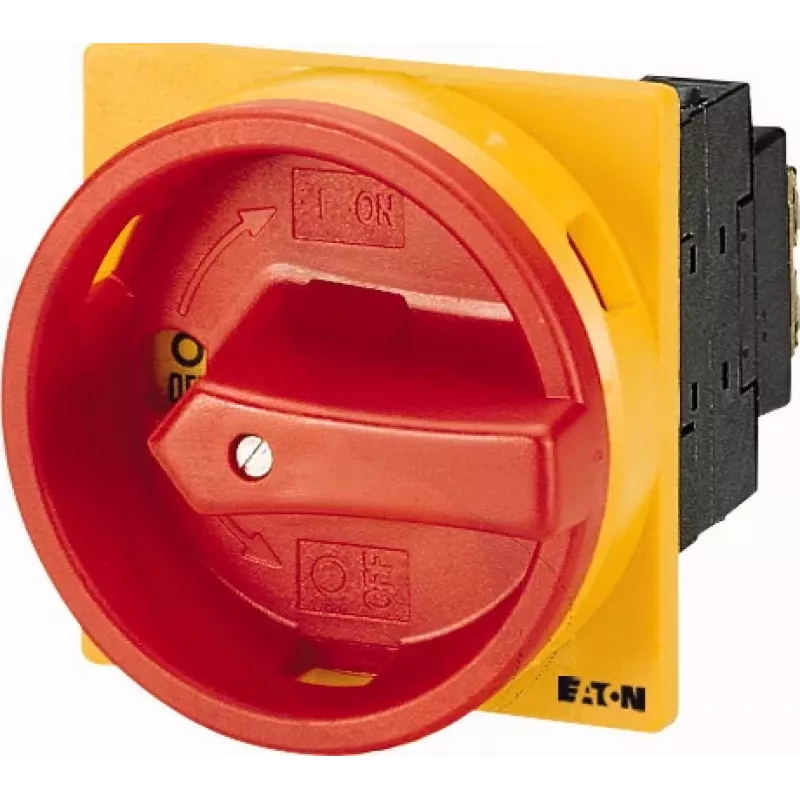

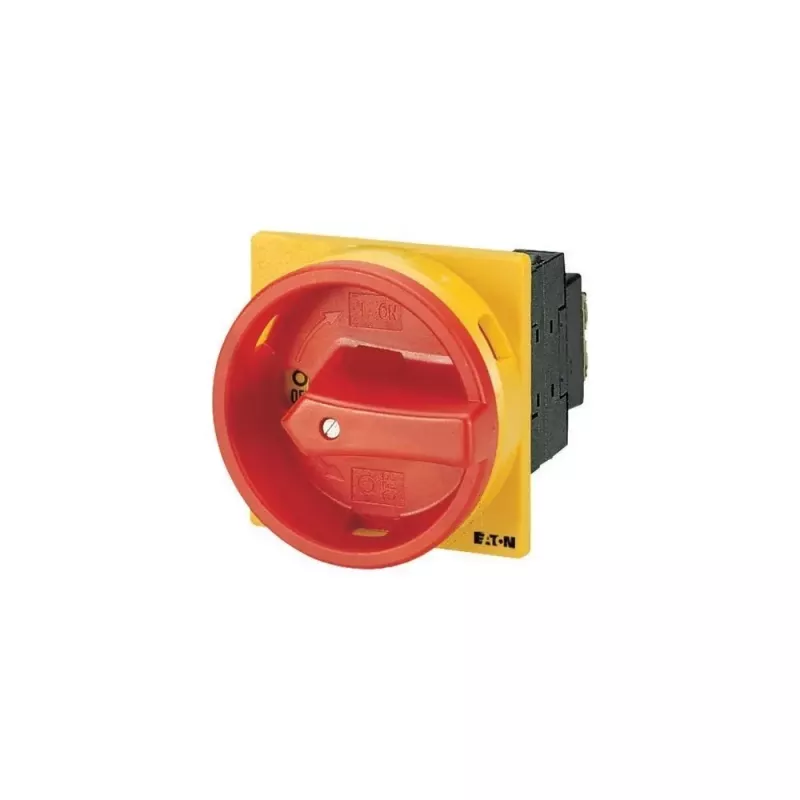

Eaton P1-32/EA/SVB/N/HI11 interruttore generale 4 poli, 32A, IP65, custodia nera con maniglia rosso/giallo 057859

Industrial and commercial installations need a reliable way to disconnect power for maintenance or emergencies. The Eaton P1-32/EA/SVB/N/HI11 main switch provides a robust 4-pole disconnect solution rated at 32 A, with an IP65-rated enclosure that withstands dust and water jets. Its lockable OFF position and clear red/yellow handle ensure safe isolation during service work.

Who is it for

Electricians, panel builders, and facility managers who require a dependable main switch for motor control centers, distribution boards, or machine supply lines. Suitable for surface mounting in harsh environments where protection against dust and moisture is critical.

Main features

• 4-pole main switch with ON-OFF switching function
• Rated operational current 32 A, voltage up to 690 V AC
• IP65 protection: dust-tight and protected against water jets
• Lockable in OFF position with padlock for safety
• Black insulated plastic enclosure with red/yellow handle
• Screw terminals for secure wiring
• Complies with IEC/EN 60947-3, UL 60947-4-1, CSA C22.2 No. 60947-4-1-14, CE

Specifications

• Number of poles: 4
• Rated operational current (Ie): 32 A
• Rated operational voltage (Ue): 690 V AC
• Degree of protection: IP65
• Mounting type: Surface mounting
• Handle colour: Red / Yellow
• Enclosure colour: Black
• Switching function: ON-OFF
• Lockability: Lockable in OFF position (with padlock)
• Rated impulse withstand voltage (Uimp): 6 kV
• Terminal type: Screw terminals
• Enclosure material: Insulated plastic
• Ambient operating temperature: -25 to +50 °C
• Rated conditional short-circuit current (Iq): 50 kA (with 32A gG/gL fuse)

Tips

For installations requiring frequent isolation, pair this switch with a suitable padlock to enforce lockout/tagout procedures. Verify the short-circuit protection coordination with upstream fuses or breakers to maintain the 50 kA conditional rating.
