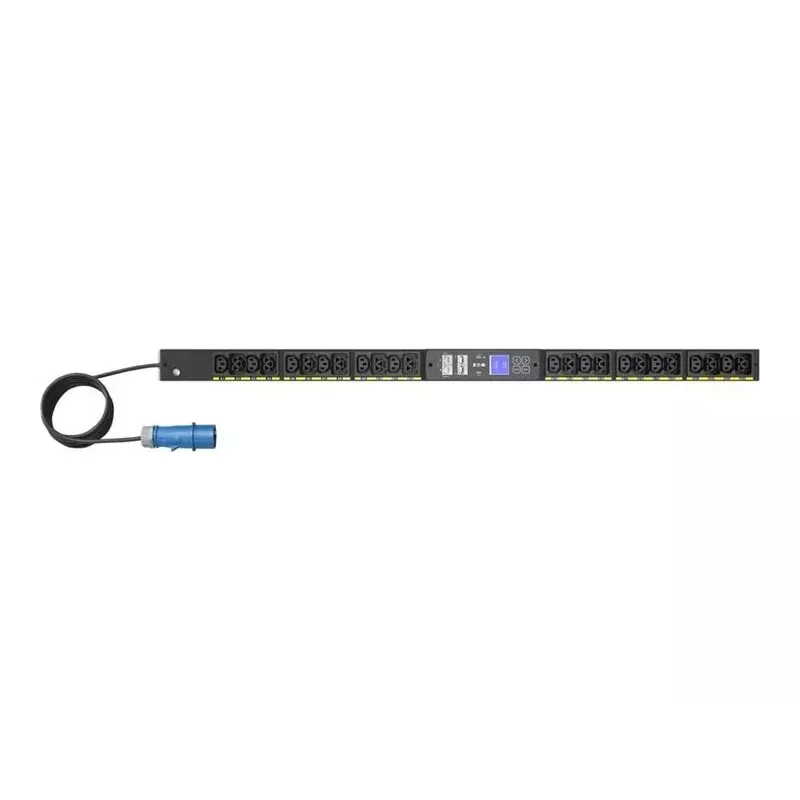

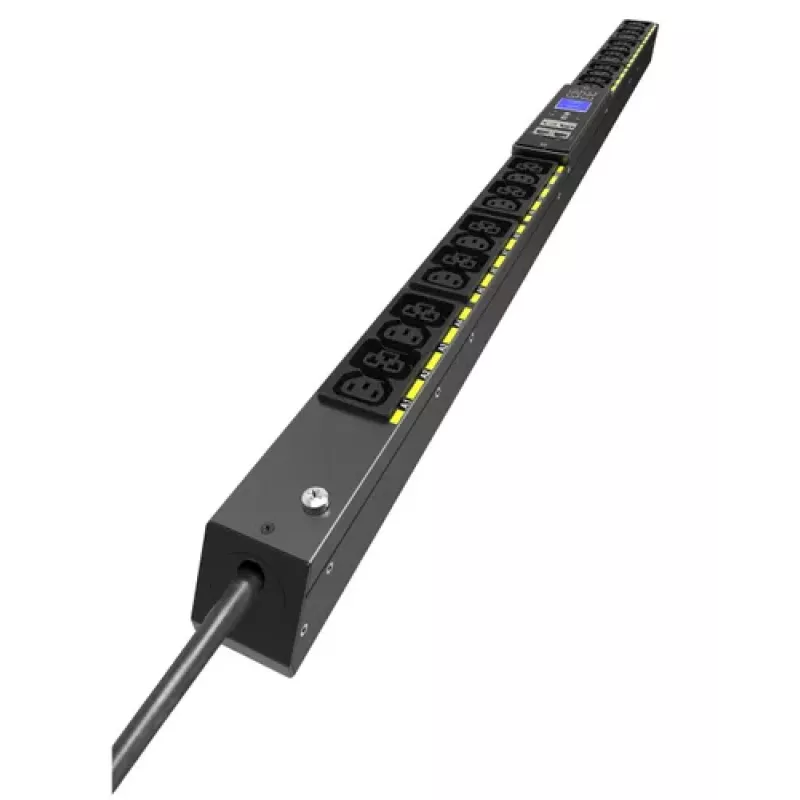

EATON PDU G4 MI 0U 309 16A 1P 12xC13,12xC39

The Eaton PDU G4 MI 0U 309 16A 1P 12xC13,12xC39 is a professional-grade metered input power distribution unit designed for data centers and network cabinets. It provides real-time monitoring of power consumption at the inlet, enabling efficient energy management and capacity planning. With a 0U vertical form factor, it mounts easily in racks without occupying valuable horizontal space.

Advantages

This PDU offers precise metering of input current, voltage, power, energy, and power factor via its integrated LCD display and network interface. The tool-less button mounting system simplifies installation, and the 3-meter power cord provides flexibility in rack placement. It supports SNMP and other management protocols for seamless integration into existing network monitoring systems.

Suitable for

• Data centers requiring accurate power monitoring
• Server rooms with high-density equipment
• Network cabinets needing vertical power distribution
• IT professionals managing power capacity and efficiency

Key specifications

• PDU Type: Metered Input
• Form Factor: 0U Vertical Rackmount
• Input Voltage: 230V AC
• Input Current: 16A
• Input Phase: Single-Phase
• Input Connector: IEC 60309 16A 2P+E (IP44)
• Output Outlets: 12 x IEC C13, 12 x IEC C19
• Total Output Outlets: 24
• Power Capacity: 3.6 kW (3680 VA)
• Monitoring: Input Current (A), Voltage (V), Power (kW), Energy (kWh), Power Factor
• Network Interface: 1 x RJ45 Ethernet
• Management Protocols: SNMP v1/v2c/v3, HTTP/HTTPS, Telnet, SSH, SMTP, NTP, DHCP, DNS, LDAP, RADIUS, Syslog
• Local Display: LCD Display
• Power Cord Length: 3 meters
• Mounting: Tool-less button mounting (vertical)
• Operating Temperature: 0°C to 60°C
• Certifications: CE, UL, cUL, RoHS
• Housing Material: Steel

Recommendations

For optimal performance, ensure the PDU is connected to a properly rated circuit breaker. Use the network interface to integrate with your monitoring system for real-time alerts and historical data analysis. This PDU is ideal for environments where power usage effectiveness (PUE) tracking is critical.
