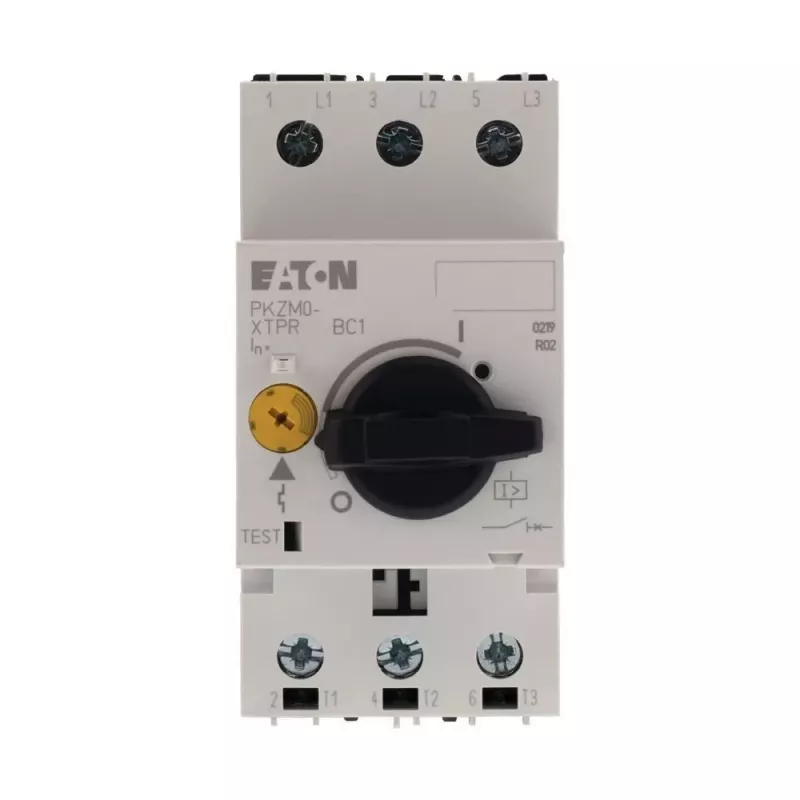

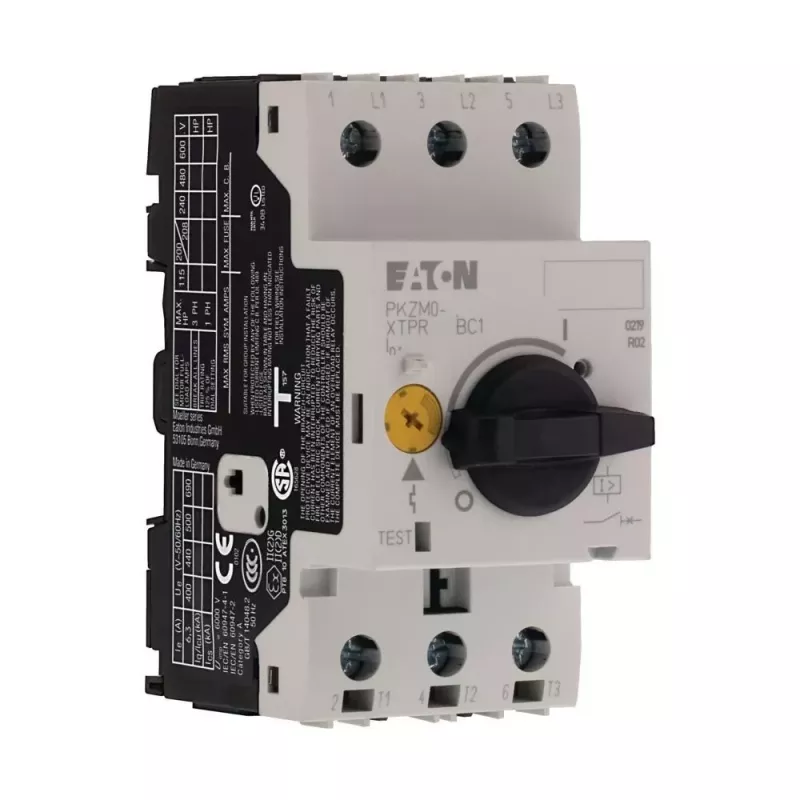

Eaton PKZM0-12 interruttore di protezione motore, 12 A, interruttore rotativo, 3 poli 278486

The Eaton PKZM0-12 motor protection circuit breaker stands out with its precise adjustable overload release from 8 to 12 A, allowing tailored protection for motors up to 5.5 kW at 400 V. Its rotary switch actuation provides clear, reliable manual operation, while the compact PKZM0 frame fits standard DIN rail installations.

Highlights

• Adjustable overload release: 8 - 12 A
• Rated operational current: 12 A
• 3-pole protection with fixed magnetic short-circuit release
• Rotary switch for manual ON/OFF control
• High breaking capacity: 50 kA at 400 V
• Wide voltage range up to 690 V AC

In daily use

Designed for motor protection in industrial control panels, the PKZM0-12 reliably disconnects the circuit in case of overload or short circuit. The screw terminals ensure secure wiring, and the device can be mounted on DIN rail or screwed directly. Its operating temperature range of -25 to +55 °C allows use in demanding environments.

Full specifications

• Rated operational current (Ie): 12 A
• Overload release setting range: 8 - 12 A
• Rated operational voltage (Ue): up to 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated short-circuit breaking capacity (Icu) at 400 V: 50 kA
• Number of poles: 3
• Actuation type: rotary switch
• Mounting type: DIN rail / screw mounting
• Protection degree: IP20 (terminals), IP65 (with appropriate enclosure)
• Terminal type: screw terminals
• Rated power at 400 V: 5.5 kW
• Short-circuit release type: fixed (magnetic)
• Standard compliance: IEC/EN 60947-4-1, VDE 0660
• Ambient operating temperature: -25 to +55 °C
• Frame size: PKZM0

Final note

A dependable choice for motor protection, the PKZM0-12 combines adjustable thermal overload protection with robust short-circuit breaking in a compact design.
