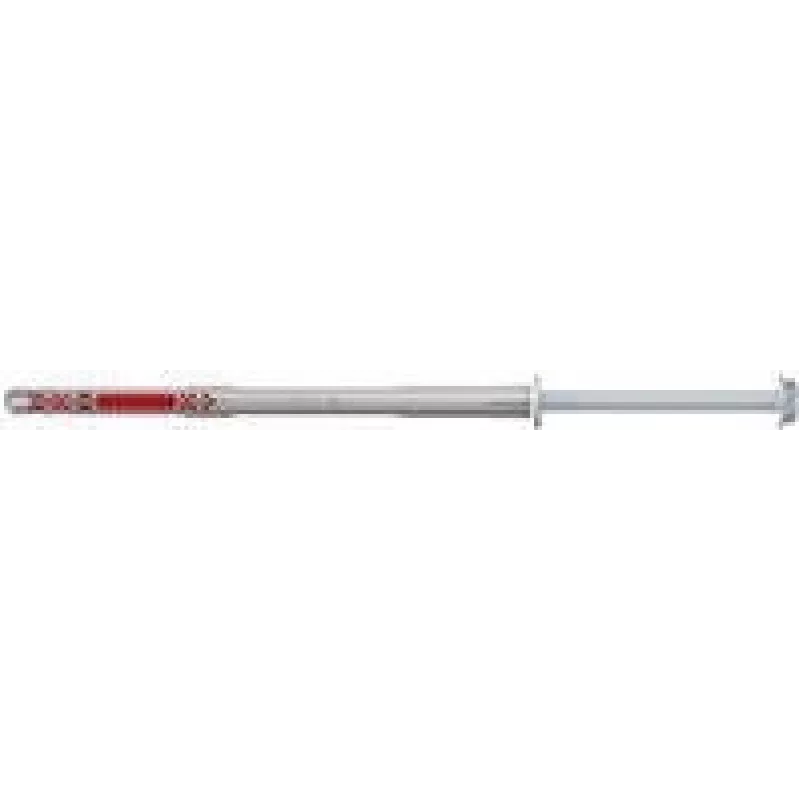

Fischer DuoXpand 10x200 FUS tassello per fissaggio su telaio 50 pezzi

The Fischer DuoXpand 10x200 FUS is a high-performance frame fixing anchor designed for secure and reliable fastening of window and door frames, squared timbers, and facade substructures. With a plug diameter of 10 mm and a length of 200 mm, this anchor is suitable for a wide range of base materials including concrete, solid brick, perforated brick, aerated concrete, and lightweight concrete. The pack contains 50 pieces, making it ideal for professional contractors and DIY enthusiasts alike.

Advantages

The DuoXpand system features a unique two-component expansion mechanism that ensures optimal load distribution and high pull-out resistance. The nylon plug expands in two directions, providing a secure hold even in hollow or soft building materials. The galvanized steel screw with TX40 Torx drive offers excellent corrosion resistance and easy installation. The through-fixing installation type allows for quick and efficient mounting without the need for pre-assembly.

Suitable for

• Window and door frames
• Squared timbers
• Facade substructures
• Concrete, solid brick, perforated brick, aerated concrete, lightweight concrete

Key specifications

• Product Type: Frame Fixing / Expansion Anchor
• Plug Diameter: 10 mm
• Plug Length: 200 mm
• Screw Type: Countersunk Head Screw
• Screw Drive: TX40 (Torx)
• Screw Material: Galvanized Steel
• Plug Material: High-Quality Nylon
• Quantity per Pack: 50 pieces
• Min. Drill Hole Diameter: 10 mm
• Min. Drill Hole Depth: 210 mm
• Max. Usable Length (t_fix): 150 mm
• Min. Anchorage Depth: 50 mm
• Approval: ETA-20/0105
• Installation Type: Through-fixing

Recommendations

For optimal performance, ensure the drill hole depth is at least 210 mm and the anchorage depth is at least 50 mm. Always follow the manufacturer's installation instructions and use the appropriate drill bit size (10 mm).
