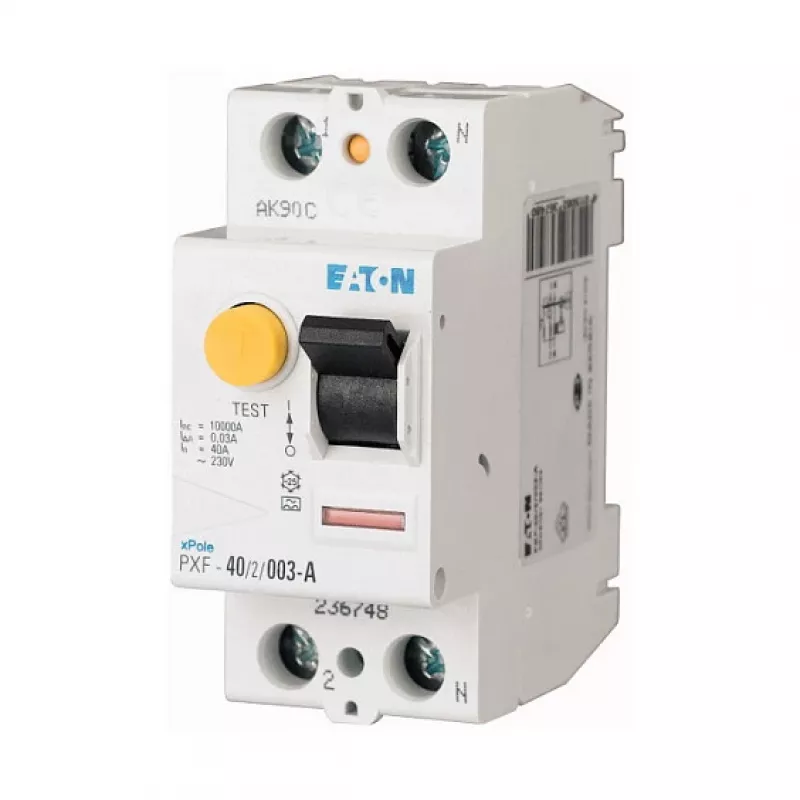

EATON PXF-40/2/003-A interruttore differenziale (RCCB), 2 poli, 40 A, 30 mA, tipo A, 230/400 V AC

The EATON PXF-40/2/003-A stands out among residual current devices by combining a compact 2-module footprint with a robust 40 A rating and sensitive 30 mA tripping, making it a dependable choice for protecting circuits against earth leakage currents in residential and commercial installations. Its Type A classification ensures reliable detection of both sinusoidal AC and pulsating DC residual currents, a critical advantage in modern electrical systems with electronic loads.

Highlights

• Rated residual current of 30 mA for personal and fire protection
• Type A tripping suitable for AC and pulsating DC fault currents
• 40 A rated current supports high-load circuits
• Compact 2-module width saves space on DIN rail
• Complies with IEC/EN 61008 for proven safety

In daily use

Installed on a standard 35 mm DIN rail, this RCCB provides continuous monitoring of circuit integrity. Its instantaneous tripping characteristic ensures rapid disconnection in the event of a fault, minimizing the risk of electric shock or fire. The device operates reliably across a wide temperature range from -25 to +40 °C, and its IP20 terminal protection (IP40 when enclosed) suits typical distribution board environments. Terminals accept solid or stranded conductors from 1.5 to 35 mm², simplifying wiring for a variety of cable sizes.

Full specifications

• Product type: Residual Current Circuit Breaker (RCCB)
• Number of poles: 2
• Rated current (In): 40 A
• Rated residual current (IΔn): 30 mA
• RCD type: Type A
• Rated voltage (Ue): 230/400 V AC
• Frequency: 50/60 Hz
• Conditional short-circuit withstand current (Icn): 10 kA
• Rated impulse withstand voltage (Uimp): 4 kV
• Mounting: DIN rail (35 mm)
• Degree of protection: IP20 (terminals), IP40 (enclosure when installed)
• Standards: IEC/EN 61008
• Tripping characteristic: Instantaneous
• Operating temperature: -25 to +40 °C
• Terminal capacity: 1.5 - 35 mm² (solid/stranded)
• Module width: 2 modules

Final note

With its dependable Type A protection and space-efficient design, the EATON PXF-40/2/003-A is a reliable safeguard for modern electrical installations where both safety and performance are paramount.
