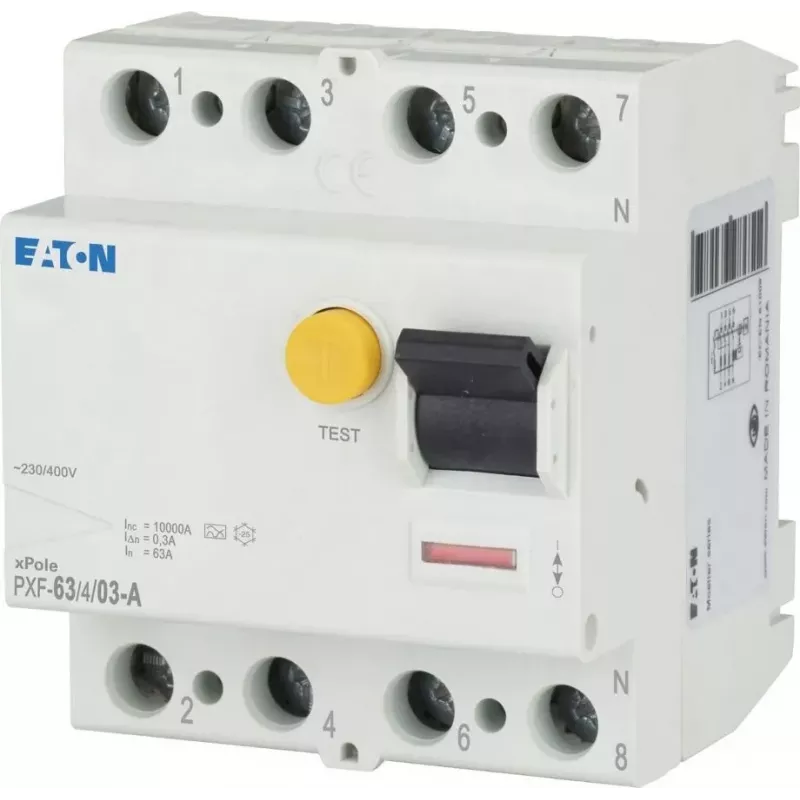

Eaton PXF-63/4/03-A Interruttore differenziale (RCCB), 63 A, 4 poli, 300 mA, tipo A 236804

Eaton PXF-63/4/03-A is a 4-pole residual current circuit breaker (RCCB) rated for 63 A and 300 mA residual current, providing reliable protection against earth leakage faults in industrial and commercial installations. Its Type A tripping characteristic ensures sensitivity to alternating and pulsating direct residual currents.

Overview

The PXF series RCCB is designed for DIN rail mounting and features a compact 4-module width (70 mm). It operates at 230/400 V AC and 50/60 Hz, with a conditional short-circuit current of 10 kA when protected by an upstream 63 A gG/gL fuse. The device has a trip position indicator for quick status identification.

What stands out

• Rated residual current of 300 mA for reliable fault detection
• Type A tripping suitable for AC and pulsating DC residual currents
• Wide terminal capacity from 1.5 to 35 mm² for flexible wiring
• High electrical endurance: over 4,000 operations
• Operating temperature range from -25 °C to +40 °C

Technical details

• Product type: Residual Current Circuit Breaker (RCCB)
• Series: PXF
• Rated current (In): 63 A
• Number of poles: 4
• Rated residual current (IΔn): 300 mA
• Rated voltage (Ue): 230/400 V AC
• Rated frequency: 50/60 Hz
• Mounting type: DIN rail (35 mm)
• Module width: 4 modules (70 mm)
• Conditional short-circuit current (Inc): 10 kA (with upstream fuse 63A gG/gL)
• Rated surge current (IΔm): 250 A (8/20 µs wave)
• Degree of protection: IP20 (terminals), IP40 (front)
• Operating temperature range: -25 °C to +40 °C
• Terminal capacity (solid/stranded): 1.5 - 35 mm²
• Standards: IEC/EN 61008-1
• Tripping characteristic: Instantaneous
• Indicator: Trip position indicator
• Electrical life: > 4,000 operations
• Mechanical life: > 10,000 operations

Our verdict

The Eaton PXF-63/4/03-A offers robust earth leakage protection with a high 63 A rating and 300 mA sensitivity, making it suitable for demanding applications. Its wide operating temperature range and durable construction ensure long-term reliability in industrial environments.
