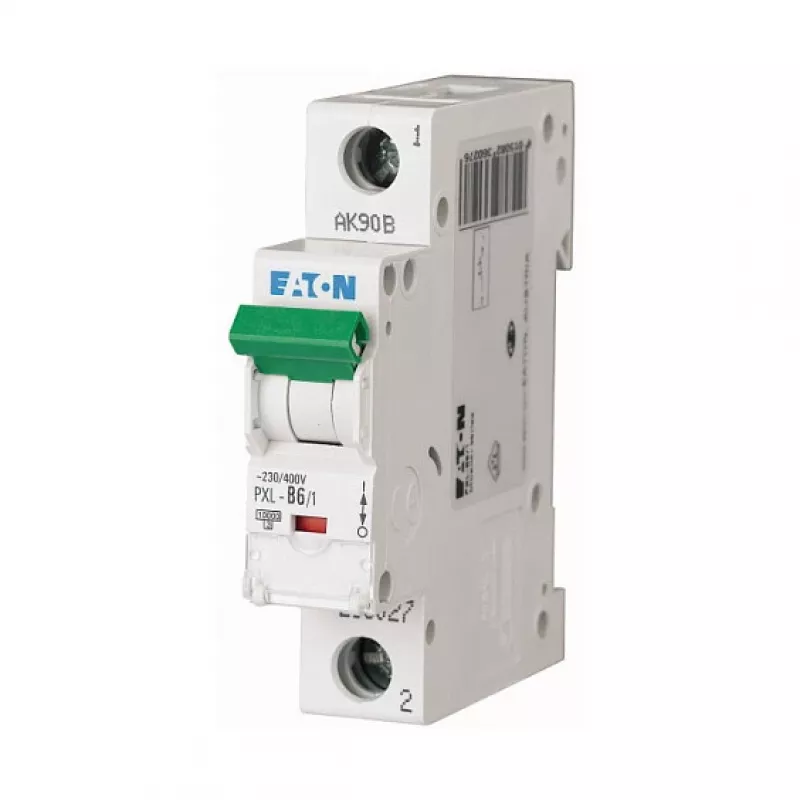

Eaton PXL-B6/1 Interruttore automatico, 6A, 1 polo, curva B (236027)

Overloads and short circuits can cause costly damage to equipment and pose serious safety hazards. The Eaton PXL-B6/1 miniature circuit breaker (MCB) provides dependable protection by automatically interrupting the circuit when dangerous current levels are detected, ensuring your electrical installation remains safe and operational.

Who is it for

This 6 A single-pole breaker is ideal for electricians, panel builders, and maintenance professionals working on residential and light commercial distribution boards. It is particularly suited for lighting circuits, socket outlets, and general-purpose loads in buildings where reliable overcurrent protection is essential.

Main features

• B-curve tripping characteristic enables fast response to short circuits and overloads
• Rated current of 6 A for protecting smaller branch circuits
• 1-pole design for single-phase applications
• High breaking capacity of 10 kA to handle severe fault conditions
• DIN rail mount simplifies installation in standard distribution panels
• Secure screw terminals ensure reliable wiring connections

Specifications

• Rated voltage: 230/400 V AC
• Frequency: 50/60 Hz
• Rated short-circuit breaking capacity: 10 kA
• Module width: 1 module (18 mm)
• Degree of protection: IP20
• Pollution degree: 2
• Energy limiting class: 3
• Standard: EN 60898-1
• Operating temperature range: -25 to +75 °C
• Mechanical life: 20,000 operations
• Electrical life: 10,000 operations

Tips

Always have a qualified electrician install and test the breaker. Verify that the rated current and breaking capacity match your circuit requirements. For lighting circuits with incandescent or LED loads, a 6 A B-curve MCB offers excellent protection without nuisance tripping.
