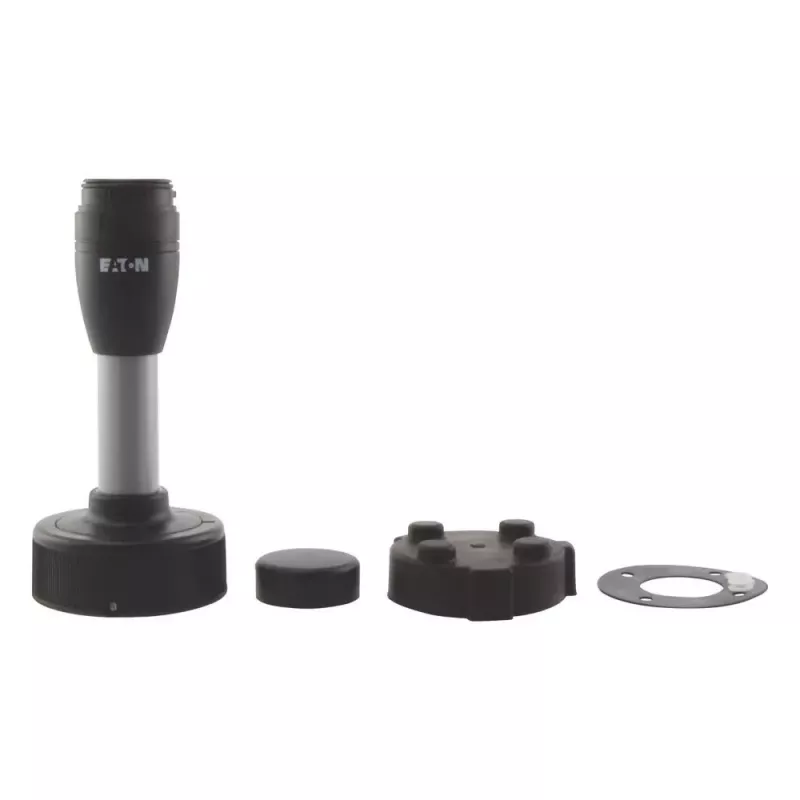

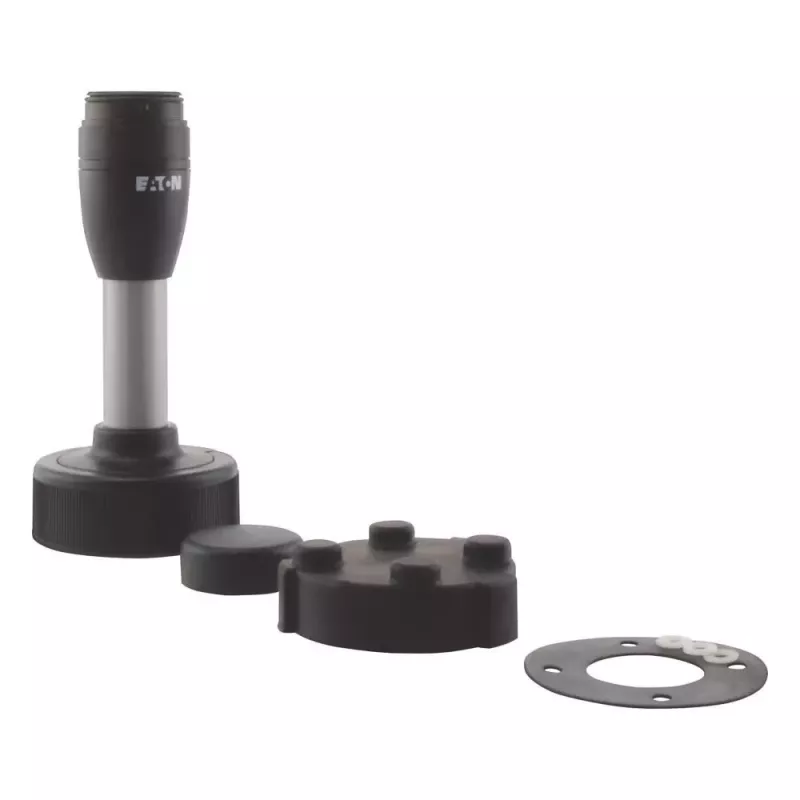

Eaton SL4-FMS-100 kit di montaggio per torri di segnalazione SL4, grigio 171308

In industrial automation and machinery environments, the Eaton SL4-FMS-100 mounting kit provides a secure base for installing SL4 signal tower elements directly onto a flat surface. This flange mounting kit is compatible with the Eaton SL4 series and is made from grey polycarbonate (RAL 7035).

Key specifications

• Product type: Mounting kit
• Compatible series: Eaton SL4
• Mounting method: Flange mounting
• Material: Polycarbonate (PC)
• Colour: Grey (RAL 7035)
• Base diameter: 70 mm
• Base height: 25 mm
• Operating temperature range: -30°C to +60°C
• Storage temperature range: -40°C to +70°C
• Protection rating (installed): IP66
• Shock resistance: 15g
• Vibration resistance: 2g
• Mounting hole type: Through-hole for screws

Why choose it

This mounting kit offers a stable and reliable foundation for SL4 signal tower elements, ensuring secure attachment in demanding industrial settings. Its polycarbonate construction provides durability, and the grey colour blends seamlessly with standard control panels.

Ideal use cases

• Industrial automation systems
• Machinery status indication
• Control system installations

Good to know

The kit is designed for surface mounting and requires through-hole screws for installation. When correctly installed with SL4 elements, it achieves an IP66 protection rating, making it suitable for environments where dust and water ingress must be prevented.
