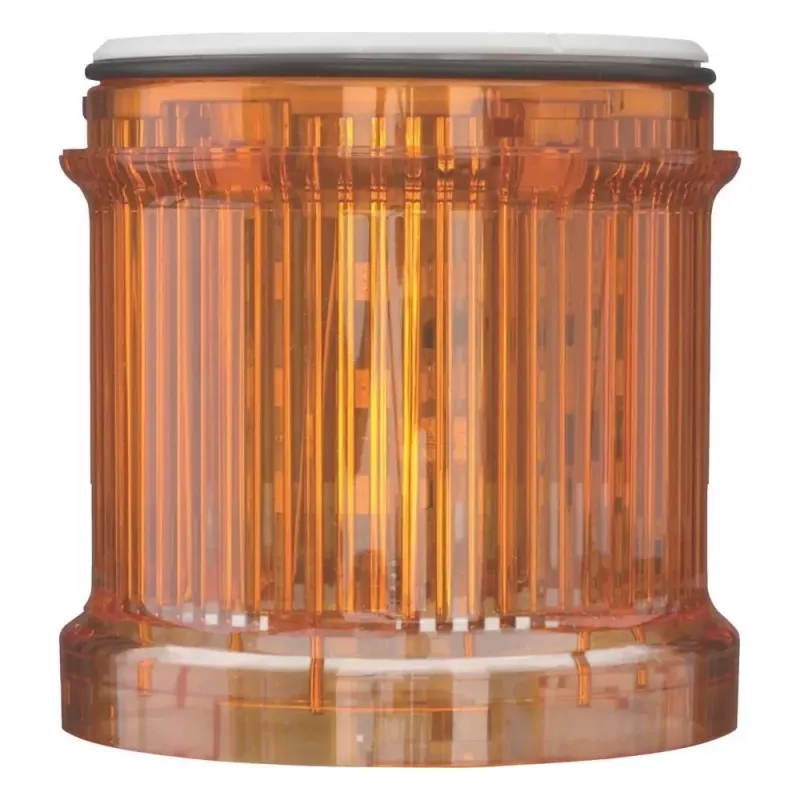

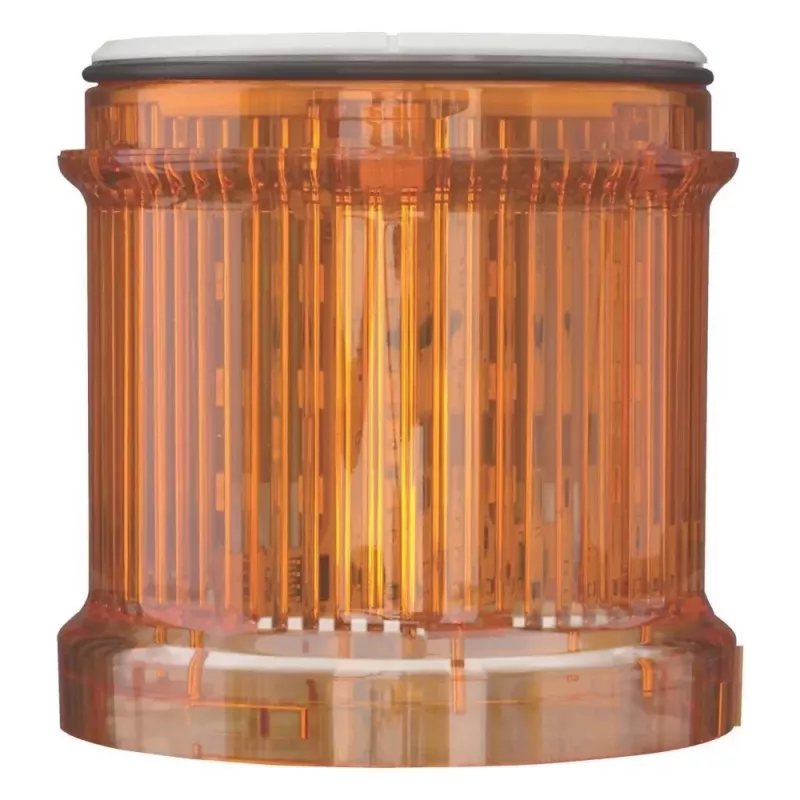

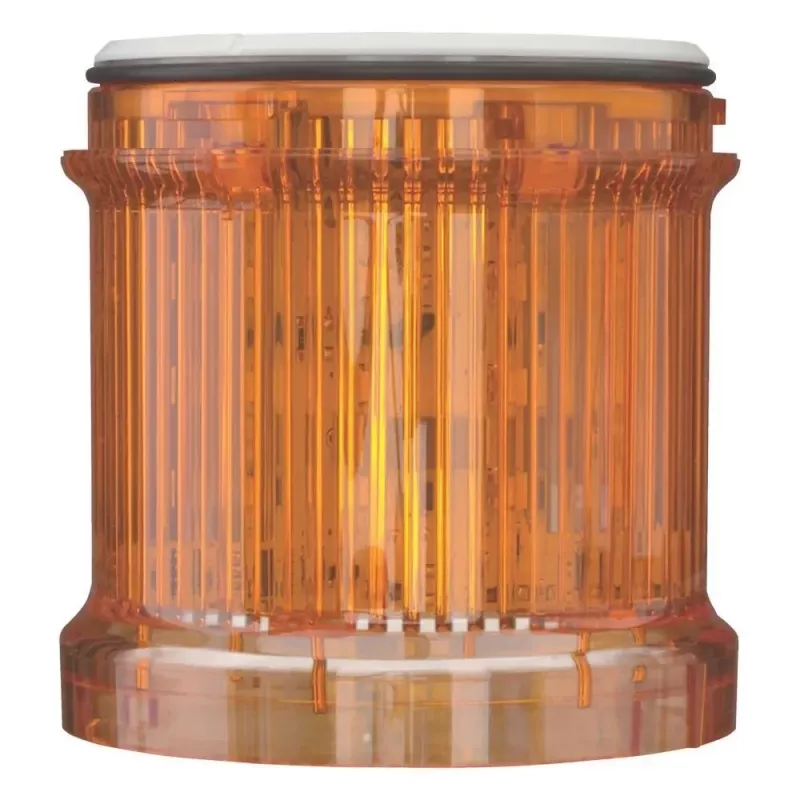

Eaton SL7-L24-A elemento LED per torre di segnalazione, arancione, luce fissa, 24 V AC/DC 171466

Signal tower element with LED continuous light in orange. The Eaton SL7-L24-A provides bright, long-lasting illumination for status indication in industrial environments. Its LED light source offers a service life of over 100,000 hours, reducing maintenance and downtime.

Advantages

High visibility orange LED light ensures clear signaling. Energy-efficient with low current consumption of 25 mA. Robust polycarbonate housing and lens withstand harsh conditions. Quick bayonet mounting for easy installation and reconfiguration.

Suitable for

• Industrial machinery status indication
• Process control panels
• Automated production lines
• Safety warning systems

Key specifications

• Light type: Continuous light
• Light source: LED
• Colour: Orange
• Operating voltage: 24 V AC/DC
• Current consumption: 25 mA
• Diameter: 70 mm
• Protection rating: IP66, NEMA 4X, 13
• Operating temperature: -30 to +60 °C
• Storage temperature: -40 to +70 °C
• Mounting type: Bayonet (for SL7 series)
• Housing material: Polycarbonate (PC)
• Lens material: Polycarbonate (PC)
• Certifications: CE, UL, CSA
• LED lifetime: > 100,000 hours
• Compatibility: Eaton SL7 Signal Towers

Recommendations

For reliable visual signaling in demanding industrial settings, the Eaton SL7-L24-A offers a durable and efficient solution. Its modular design integrates seamlessly with other SL7 components.
