Eaton T0-1-15431/E interruttore a camme 1 polo 20A, 690V AC, nero/grigio, montaggio frontale, IP65

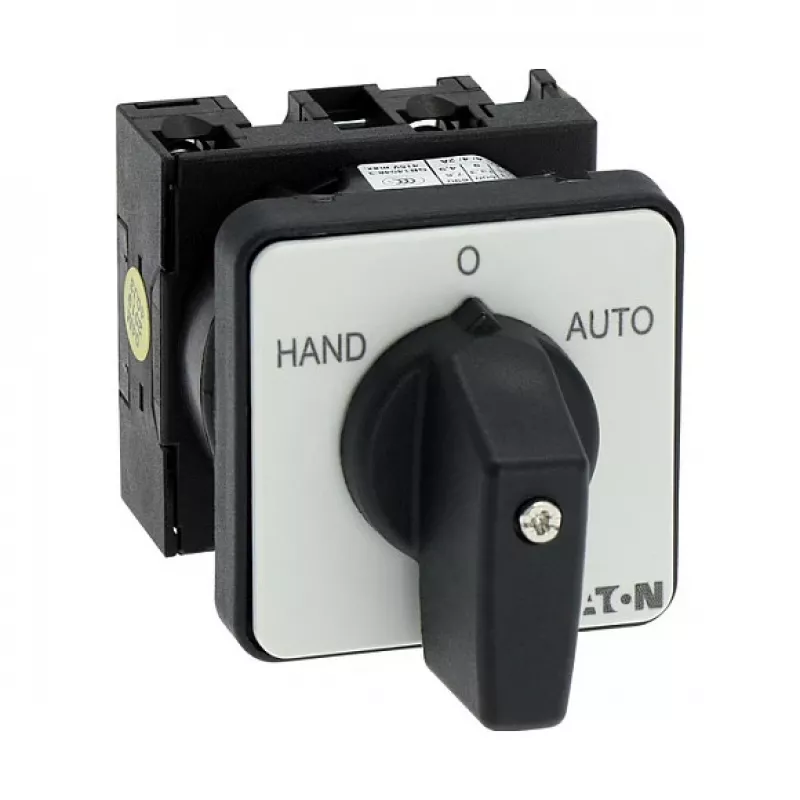

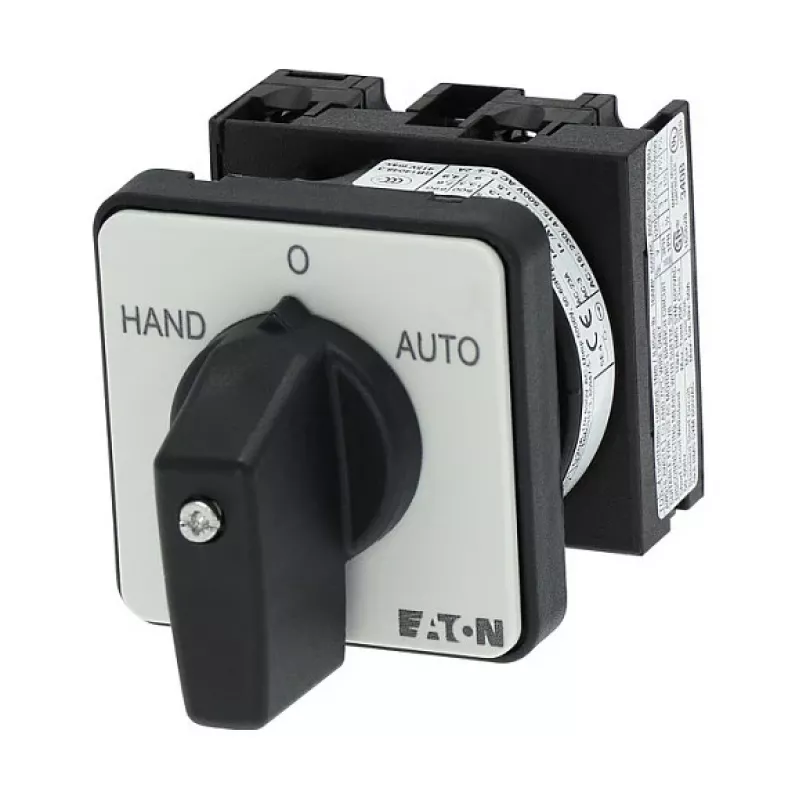

Unlike ordinary toggle switches, the Eaton T0-1-15431/E cam switch delivers a robust 20 A rating and a compact 45° detent design, making it a dependable choice for manual motor control and circuit isolation in industrial panels. Its rotary cam mechanism provides a clear HAND-0-AUTO functionality, ensuring precise switching operations even in demanding environments. The black handle and grey front plate offer a professional appearance that blends seamlessly into control cabinets.

Highlights

• Rated operational current of 20 A at 400V AC-21A, suitable for heavy-duty applications
• Wide voltage range up to 690 V AC, with insulation voltage of 690 V
• Compact 1-pole design with 2 switching positions and 90° switching angle
• Front panel mounting with IP65 protection from the front, ensuring resistance to dust and water jets
• Screw terminals accommodate conductors from 1.5 to 2.5 mm², simplifying installation

In daily use

In practice, the T0-1-15431/E excels as a main switch or manual transfer switch. Its rotary handle provides a firm grip and clear position indication, reducing the risk of accidental operation. The switch is built to withstand frequent use, with a mechanical lifespan that ensures long-term reliability. Whether controlling a small motor or isolating a circuit for maintenance, this switch delivers consistent performance. The IP65 front protection allows installation in washdown areas or dusty environments, while the IP20 terminals are protected inside the enclosure.

Full specifications

• Switch Type: Main Switch / Cam Switch
• Switching Function: ON/OFF
• Number of Poles: 1-Pole
• Rated Operational Current (Ie): 20 A (at 400V AC-21A)
• Rated Operational Voltage (Ue): 690 V AC
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Rated Insulation Voltage (Ui): 690 V
• Number of Switching Positions: 2
• Switching Angle: 90°
• Actuator Type: Rotary Handle
• Handle Color: Black
• Front Plate Color: Grey
• Mounting Type: Front Mounting (Panel Mounting)
• Degree of Protection (Front): IP65
• Degree of Protection (Terminals): IP20
• Connection Type: Screw Terminals
• Terminal Capacity: 1 x 1.5 - 2.5 mm²
• Standards: IEC/EN 60947, VDE 0660
• Ambient Operating Temperature: -25 to +50 °C
• Series: T0

Final note

With its durable construction and precise switching, the Eaton T0-1-15431/E is engineered to perform reliably in industrial applications where safety and longevity are paramount.
