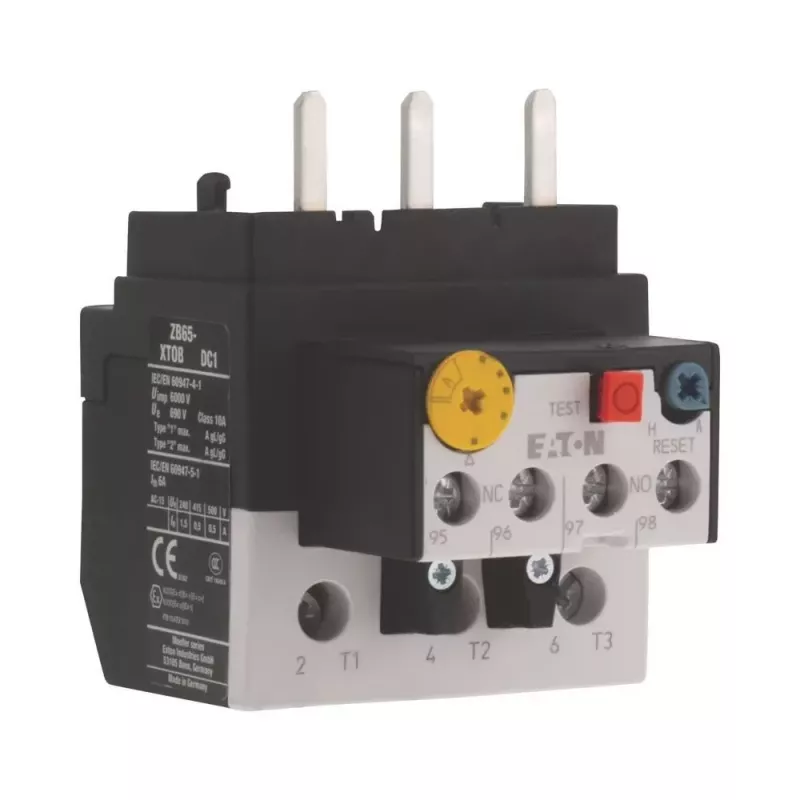

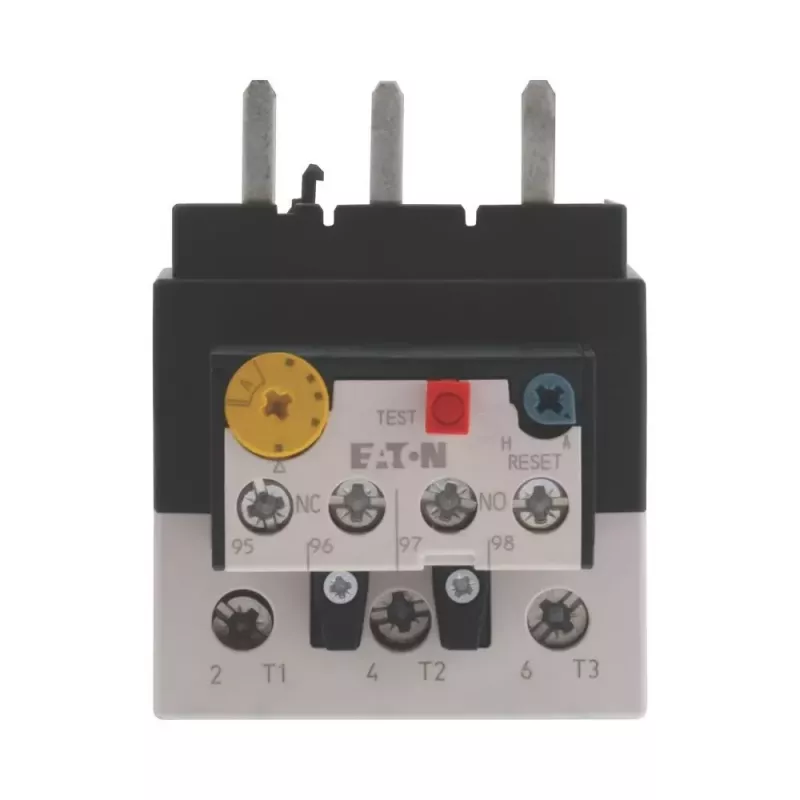

Eaton ZB65-65 relè termico di sovraccarico 50-65 A, 3 poli, classe 10A, morsetti a vite 278460

Thermal overload relay for motor protection with adjustable current range 50–65 A and 3-pole design. Provides reliable protection against overload and phase failure, with selectable manual/automatic reset and trip indication.

Advantages

Direct mounting to compatible Eaton contactors saves space and simplifies wiring. Selectable reset mode and clear trip indication reduce downtime and simplify troubleshooting.

Suitable for

• Protection of three-phase motors up to 65 A
• Use with Eaton DILM65, DILM72, DILM80, DILM95 contactors
• Industrial motor control panels and machine building

Key specifications

• Current adjustment range: 50 - 65 A
• Overload release class: CLASS 10A
• Auxiliary contacts: 1 NO + 1 NC
• Connection: screw terminals
• Rated operational voltage: up to 690 V AC
• Degree of protection: IP20

Recommendations

Pair with a suitable short-circuit protective device and mount directly on a compatible Eaton contactor for a compact, reliable motor protection solution.
