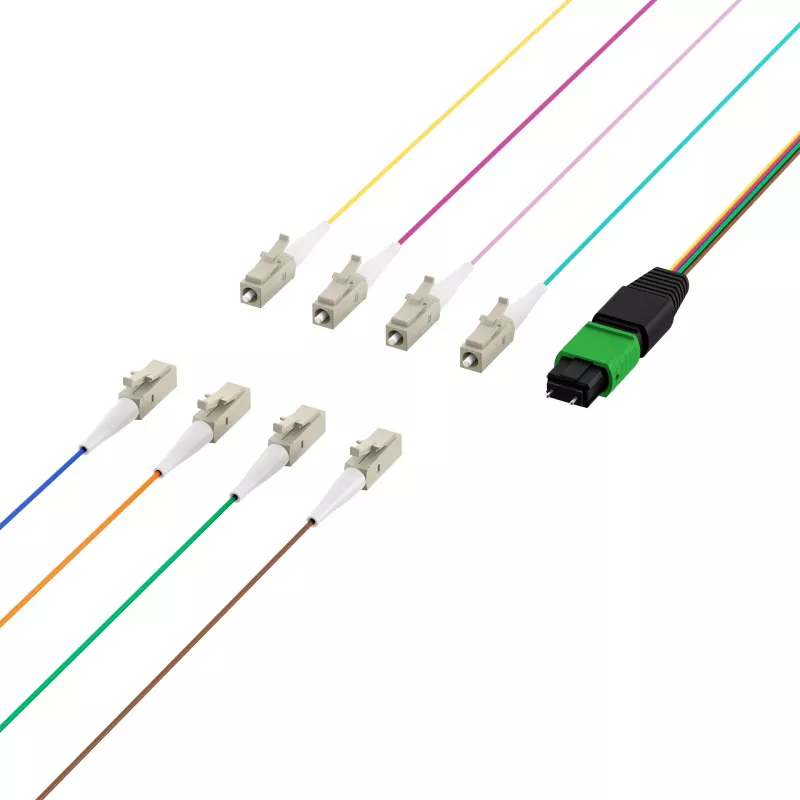

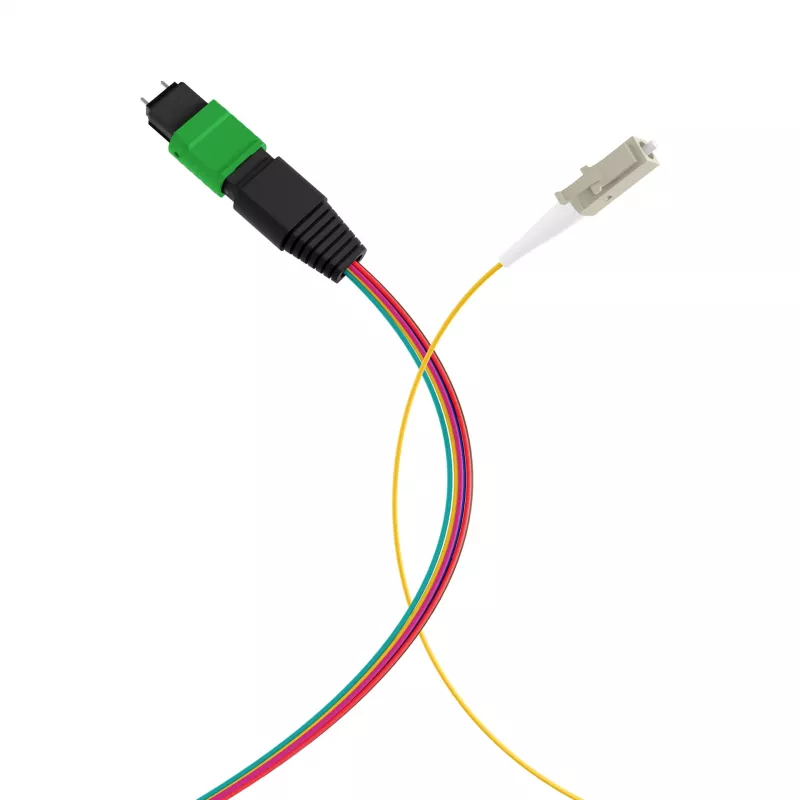

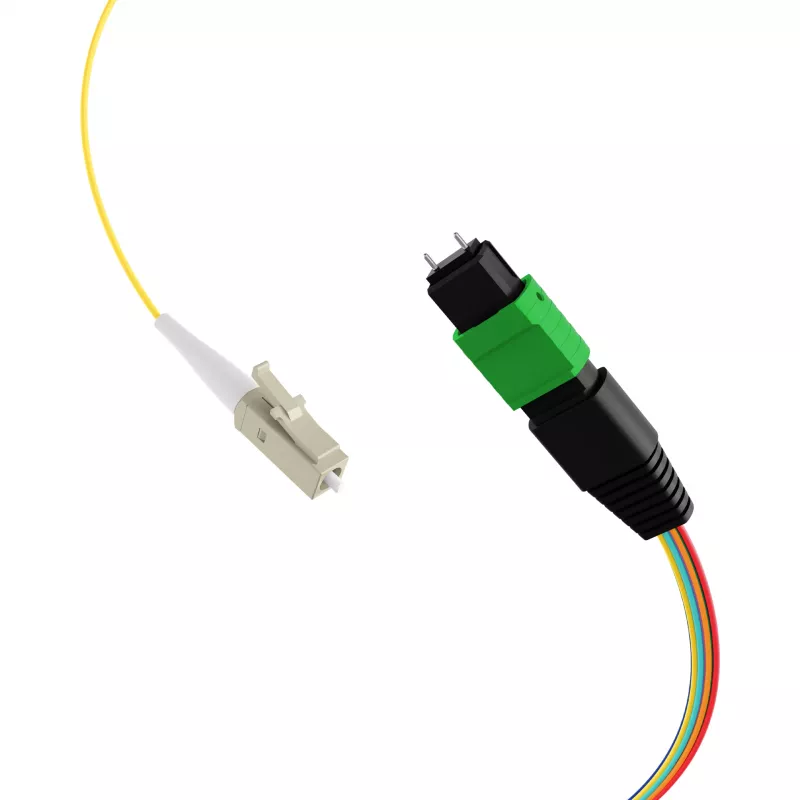

EFB Cavo fanout matrix MTP-M/LC 8 fibre OS2 LSZH giallo 0,4m

The EFB MTP-M/LC 8-Fiber Matrix Fanout Cable is a high-performance breakout cable designed for 100 Gigabit Ethernet transmission. It features a single MTP Male connector on one end and 8 LC simplex connectors on the other, enabling efficient fanout from a multi-fiber trunk to individual fibers. The cable is constructed with OS2 single-mode fiber, LSZH (Low Smoke Zero Halogen) jacket, and is colored yellow for easy identification. With low loss performance (max 0.35dB per fanout), it is ideal for data center and high-density networking environments.

Advantages

This cable provides a reliable and space-saving solution for high-speed networks. The MTP connector allows for quick and easy deployment, while the LSZH jacket ensures safety in enclosed spaces. The low loss design minimizes signal attenuation, supporting transmission distances up to 100 Gigabit Ethernet.

Suitable for

• Data centers requiring high-density fiber connectivity
• 100GBASE-SR4/LR4 applications
• Single-mode fiber optic networks
• Breakout from MTP/MPO trunk cables to LC interfaces

Key specifications

• Connector A: MTP Male (Pinned)
• Connector B: 8x LC Simplex
• Fiber Type: OS2 Single-mode (9/125 µm)
• Fiber Count: 8
• Cable Length: 0.4 m
• Jacket Material: LSZH
• Cable Color: Yellow
• Insertion Loss: Low Loss (max 0.35dB per fanout)
• Data Rate Support: Up to 100 Gigabit Ethernet

Recommendations

For optimal performance, ensure that the MTP connector is properly aligned and cleaned before installation. This cable is compatible with standard MTP/MPO adapters and LC ports. Use in controlled indoor environments only.
