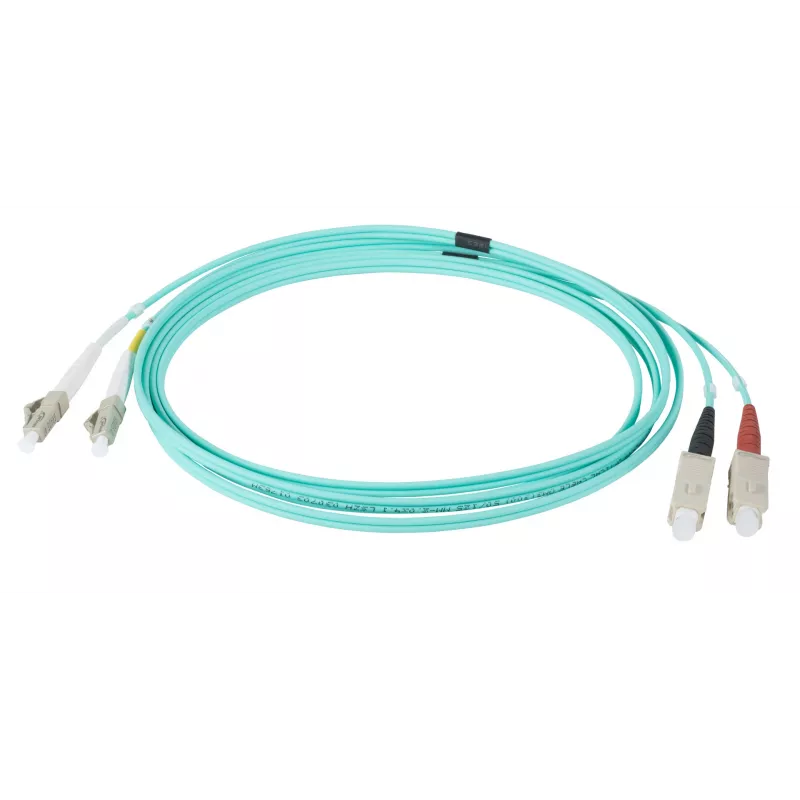

EFB Electronics IPL-DR-LCUSCU-3-0050 - 0,5 m - I-V(ZN) H - OM3 - LC - SC Cavo patch in fibra ottica

The EFB Electronics IPL-DR-LCUSCU-3-0050 is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 0.5 meters, this OM3 multimode duplex cable features LC to SC connectors and an LSZH jacket, making it ideal for data center interconnects and 10 Gigabit Ethernet applications.

Advantages

This cable offers low insertion loss (≤0.3 dB) and high return loss (≥30 dB), ensuring minimal signal degradation and optimal performance. The OM3 fiber standard supports high bandwidth up to 2000 MHz·km at 850 nm, enabling fast and efficient data transfer. The LSZH jacket provides enhanced safety by reducing toxic smoke in case of fire.

Suitable for

• Data center interconnects
• 10 Gigabit Ethernet networks
• Fiber Channel storage area networks
• High-speed enterprise networking

Key specifications

• Fiber type: Multimode OM3 (50/125 µm)
• Connectors: LC to SC, duplex
• Length: 0.5 m
• Jacket: LSZH, aqua color
• Insertion loss: ≤0.3 dB
• Return loss: ≥30 dB
• Bandwidth: 2000 MHz·km @ 850 nm (OFL)
• Operating temperature: -20°C to 70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, pair this cable with compatible OM3-rated transceivers and patch panels. Ensure proper handling to maintain low insertion loss and avoid bending beyond the minimum bend radius.
