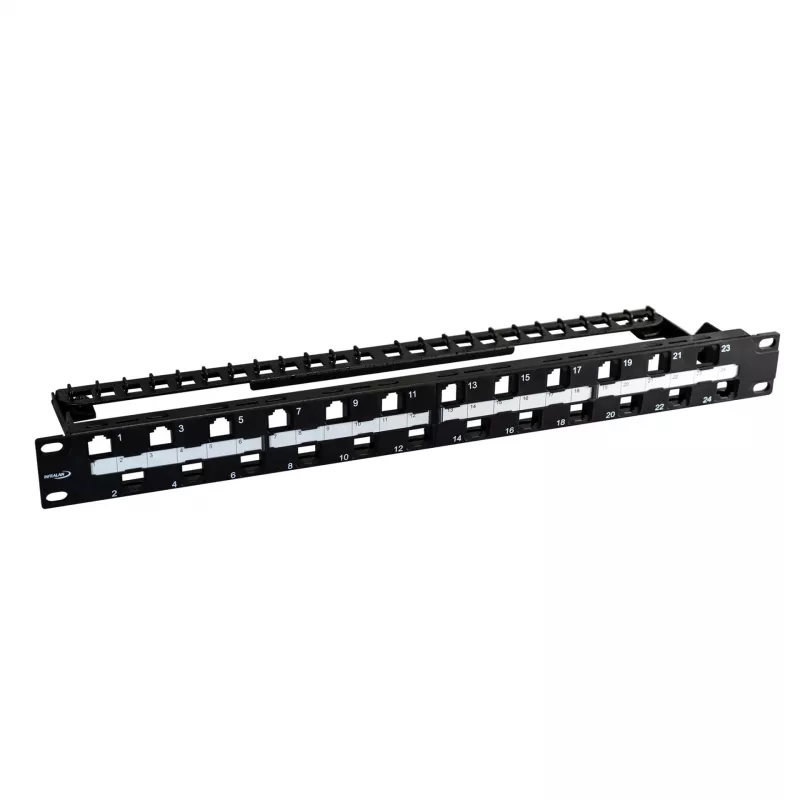

EFB Electronics pannello di distribuzione 19 pollici 1U 24 porte offset ANEXT ottimizzato nero

The EFB Electronics distribution panel is a high-performance 19-inch 1U 24-port patch panel designed for demanding network environments. Featuring an offset port arrangement and ANEXT optimization, it ensures superior signal integrity and reduced crosstalk for reliable data transmission. Ideal for data centers and enterprise networks, this shielded Cat.6A panel supports PoE++ and is built with robust materials for long-lasting performance.

Advantages

ANEXT optimized design minimizes alien crosstalk, ensuring stable high-speed data transfer. The offset port layout improves cable management and airflow. Shielded construction (FTP/STP) provides protection against electromagnetic interference. Supports Power over Ethernet (PoE/PoE+/PoE++) for powering devices like IP cameras and wireless access points. Integrated grounding connection and rear cable management bar simplify installation.

Suitable for

• Data centers requiring high-density cabling
• Enterprise network cabinets
• Structured cabling systems for Cat.6A/Class EA
• Applications needing PoE++ support

Key specifications

• Product Type: Patch Panel
• Rack Size: 19 inch
• Rack Units: 1U
• Port Count: 24
• Category Rating: Cat.6A (Class EA)
• Shielding: Shielded (FTP/STP)
• Performance Optimization: ANEXT optimized
• Colour: Black
• Mounting: Rack Mount
• Front Connectors: RJ45
• Rear Termination: LSA+ (IDC)
• Wiring Standard: TIA/EIA 568 A/B
• Housing Material: Powder-coated steel
• Contact Plating: Gold over phosphor bronze (50µm)
• PoE Support: IEEE 802.3af/at/bt (PoE/PoE+/PoE++)
• Operating Temperature: -10°C to +60°C
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Port Arrangement: Offset
• Grounding: Integrated grounding connection
• Cable Management: Rear cable management bar included

Recommendations

For optimal performance, use with Cat.6A shielded cables and ensure proper grounding. This panel is ideal for high-speed networks requiring minimal crosstalk and maximum reliability.
