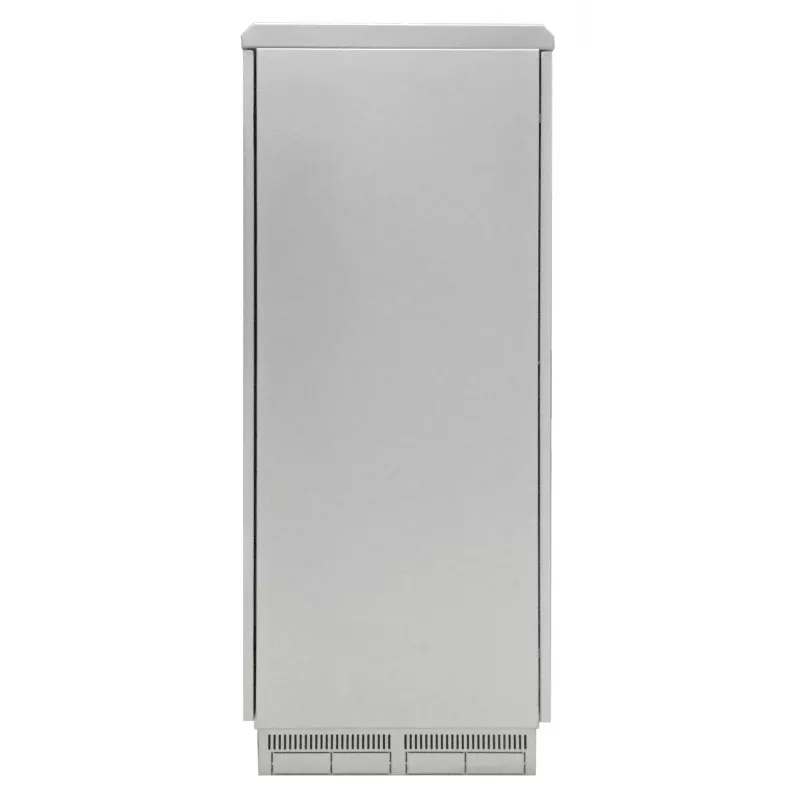

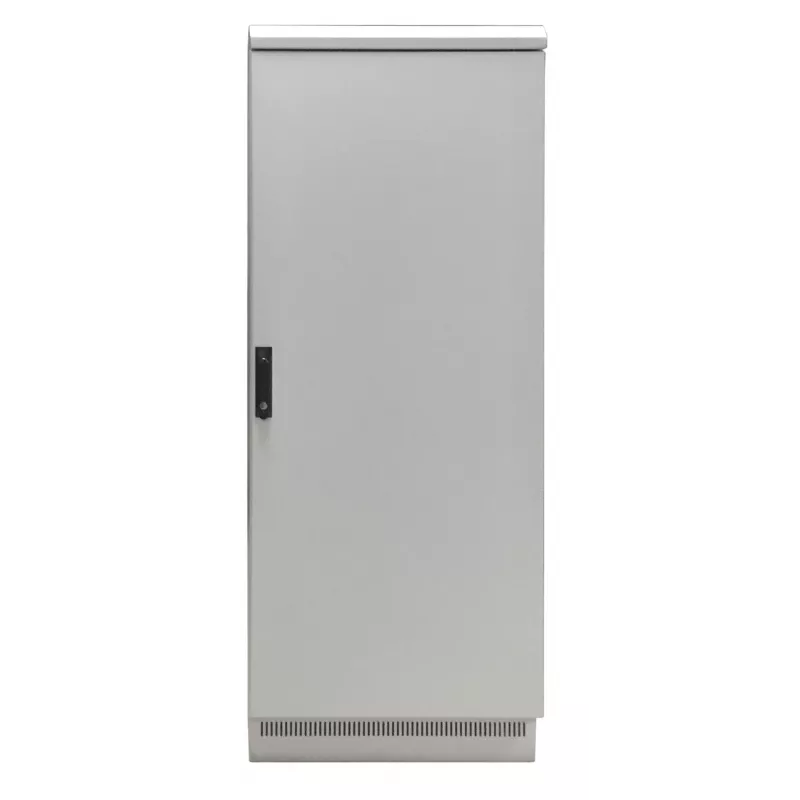

EFB Elektronik armadio di rete 19 inch IP55 24U 800x800 con basamento premontato, grigio chiaro RAL 7035

This 19-inch network cabinet delivers exceptional protection for sensitive IT equipment in demanding environments. Its IP55-rated, fully welded steel enclosure with pre-assembled 200 mm plinth ensures dust and water resistance, while the 42U capacity and 800 kg static load rating accommodate dense server and network configurations.

Advantages

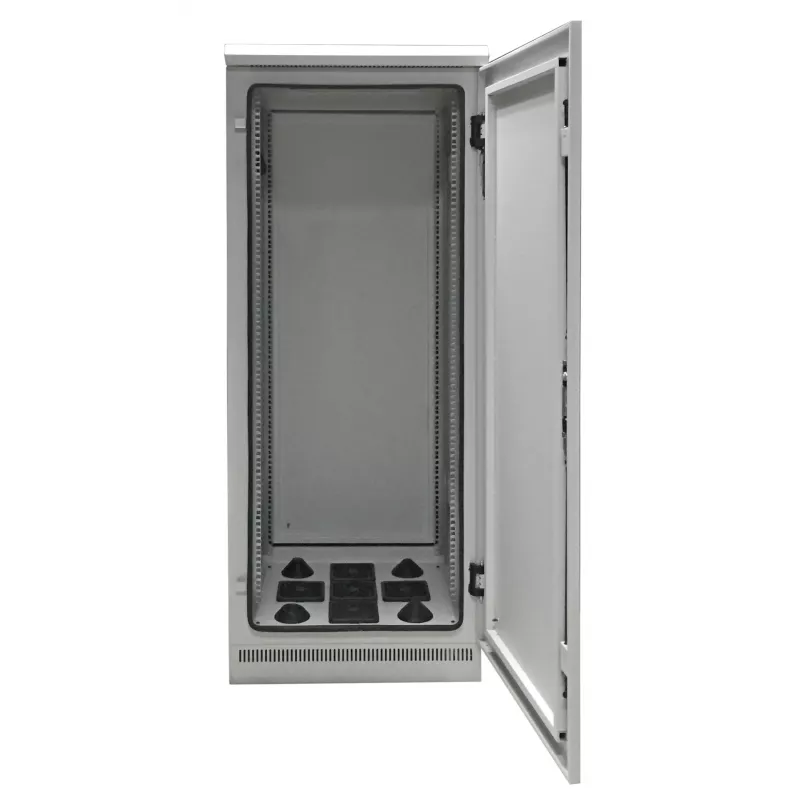

The cabinet features lockable solid steel front and rear doors with 3-point locking, removable lockable side panels, and sealed cable entries top and bottom. Depth-adjustable 19" mounting profiles and a prepared grounding system simplify installation and maintenance. Compliance with IEC 60297-3-100 and EN 60529 guarantees reliable performance.

Suitable for

• Industrial networks and factory floors
• Server rooms with high dust or moisture exposure
• Edge computing and IoT deployments
• Telecommunications infrastructure

Key specifications

• Rack units: 42U
• External dimensions: 800 x 800 mm (W x D), height 2060 mm incl. plinth
• Ingress protection: IP55
• Colour: Light grey RAL 7035
• Material: Steel sheet, welded frame
• Static load capacity: 800 kg
• Plinth: Pre-assembled, 200 mm height
• Locking: 3-point locking on front and rear doors, lockable side panels

Recommendations

For reliable protection of network and server equipment in harsh environments, the EFB Elektronik IP55 cabinet offers robust construction and flexible mounting. Its pre-assembled plinth and sealed cable entries reduce installation time and ensure long-term operational integrity.
