EFB Elektronik Cavo in bobina Cat.7 SFTP PiMF 100 m arancione LSZH

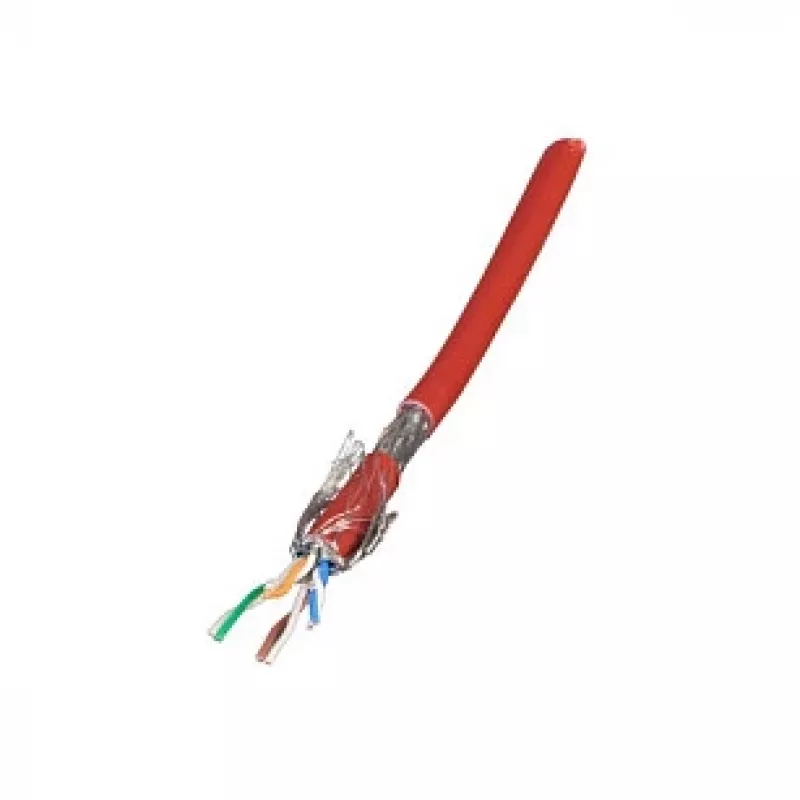

The EFB Elektronik MK7104.100R is a high-performance Cat.7 bulk network installation cable, designed for reliable 10 Gigabit Ethernet transmission over distances up to 100 meters. With SFTP (Screened Foiled Twisted Pair) and PiMF (Pairs in Metal Foil) shielding, this cable provides excellent protection against electromagnetic interference, making it ideal for demanding professional environments.

Advantages

This cable offers superior signal integrity and data rates up to 10 Gbps, ensuring future-proof network infrastructure. The LSZH (Low Smoke Zero Halogen) jacket enhances safety in enclosed spaces by reducing toxic fumes and smoke in case of fire. The solid bare copper conductors (AWG 23/1) guarantee low resistance and long-term reliability.

Suitable for

• Data centers and server rooms requiring high-speed connections
• Structured cabling in commercial buildings
• Industrial environments with high electromagnetic interference
• Installations where fire safety is critical (LSZH jacket)

Key specifications

• Cable Category: Cat.7
• Length: 100 m
• Shielding: SFTP, PiMF
• Conductor: Bare Copper, AWG 23/1 (Solid)
• Number of Pairs: 4
• Outer Jacket: LSZH, Orange
• Outer Diameter: Approx. 7.5 mm
• Impedance: 100 Ohm
• Bandwidth: Up to 600 MHz
• Data Transfer Rate: Up to 10 Gbps (10GBASE-T)
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Flame Retardancy: IEC 60332-1
• Halogen Free: Yes (IEC 60754-2)
• Low Smoke: Yes (IEC 61034)
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -20°C to 75°C

Recommendations

For optimal performance, use with Cat.7 compatible connectors and ensure proper termination. This bulk cable is ideal for custom-length installations; a cable drum is included for easy deployment.
