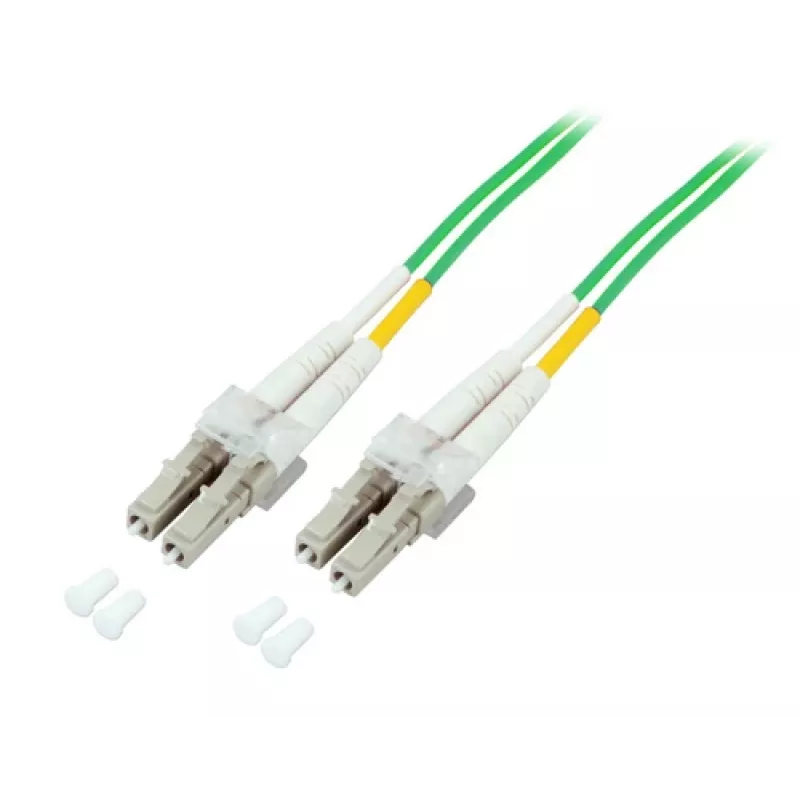

EFB Elektronik Cavo patch LC/PC su LC/PC multimodale OM3 duplex 1 m aqua LSZH

The EFB Elektronik Patch Cable O0319.35OM5 is a high-performance fiber optic patch cable designed for reliable data transmission in data centers and local area networks. Featuring LC/PC connectors on both ends, this duplex multimode OM3 cable ensures low insertion loss and high return loss, making it ideal for 10 Gigabit Ethernet and other high-bandwidth applications. The aqua-colored LSZH (Low Smoke Zero Halogen) jacket provides safety and durability in indoor environments.

Advantages

This patch cable offers exceptional signal integrity with typical insertion loss ≤0.3 dB and return loss ≥30 dB. The OM3 fiber class supports high bandwidth up to 1500 MHz*km at 850 nm, ensuring future-proof performance for evolving network demands. The LSZH jacket minimizes toxic smoke emission in case of fire, enhancing safety in confined spaces.

Suitable for

• Data center cabling infrastructure
• Local area network (LAN) connections
• Server and storage area network (SAN) links
• High-speed fiber optic patch panels

Key specifications

• Connector Type: LC/PC to LC/PC
• Fiber Type: Multimode OM3
• Core/Cladding: 50/125 µm
• Cable Length: 1 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua
• Cable Diameter: 2.8 mm per strand
• Insertion Loss: ≤0.3 dB typical
• Return Loss: ≥30 dB typical
• Operating Temperature: -20°C to 70°C

Recommendations

For optimal performance, pair this patch cable with OM3-compatible transceivers and patch panels. Ensure proper bend radius during installation to maintain signal quality. This cable is RoHS and REACH compliant, supporting environmentally responsible network deployments.
