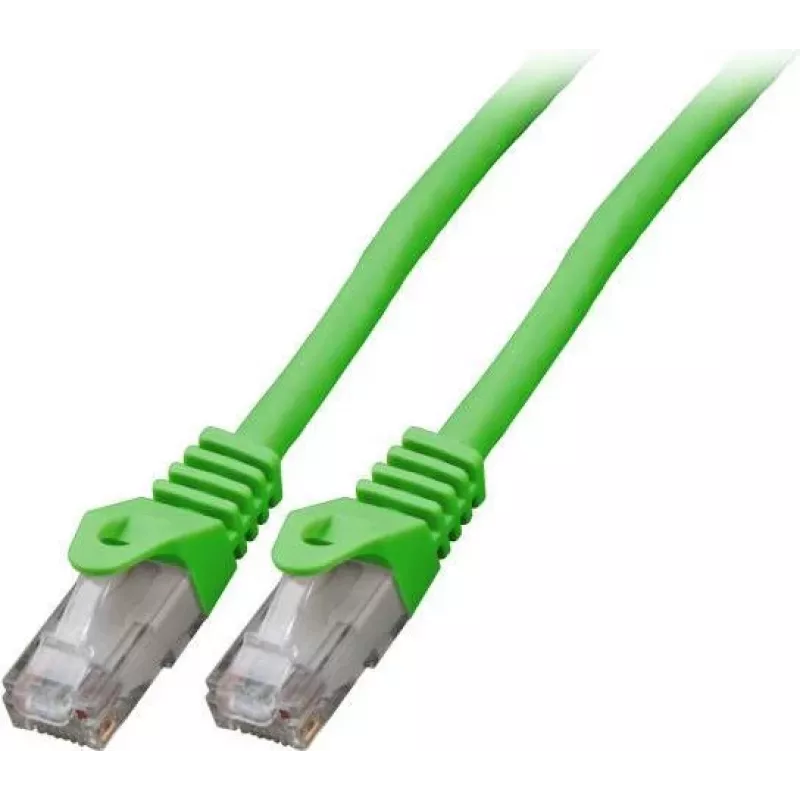

EFB-Elektronik cavo patch RJ45 Cat.5e U/UTP LSZH CCA AWG24/7 verde 3 m K8110GN.3

This 3-meter Cat.5e patch cable delivers Gigabit Ethernet speeds up to 1 Gbps with a bandwidth of 100 MHz, making it a reliable choice for high-speed network connections. The green LSZH jacket ensures low smoke and zero halogen emissions in case of fire, enhancing safety in enclosed spaces.

Overview

The EFB-Elektronik K8110GN.3 is a U/UTP unshielded twisted pair cable with RJ45 connectors on both ends. It features a stranded copper-clad aluminum (CCA) conductor with AWG 24 gauge (7 strands), providing flexibility and ease of installation. The cable is wired to TIA/EIA-568B standard and supports 10BASE-T, 100BASE-TX, and 1000BASE-T networks.

What stands out

• Halogen-free LSZH jacket for improved fire safety
• Supports Gigabit Ethernet for fast data transfer
• Stranded CCA conductors offer flexibility
• Green colour for easy identification

Technical details

• Cable length: 3 m
• Cable category: Cat.5e
• Shielding: U/UTP (unshielded)
• Connector type: RJ45 (8P8C) male to RJ45 (8P8C) male
• Conductor material: CCA (copper-clad aluminum)
• Wire gauge: AWG 24 (7 strands)
• Data transfer rate: up to 1 Gbps
• Frequency: up to 100 MHz
• Jacket material: LSZH
• Colour: Green

Our verdict

A dependable Cat.5e patch cable with safety-focused LSZH jacket, ideal for office or home networks where halogen-free cabling is required.
