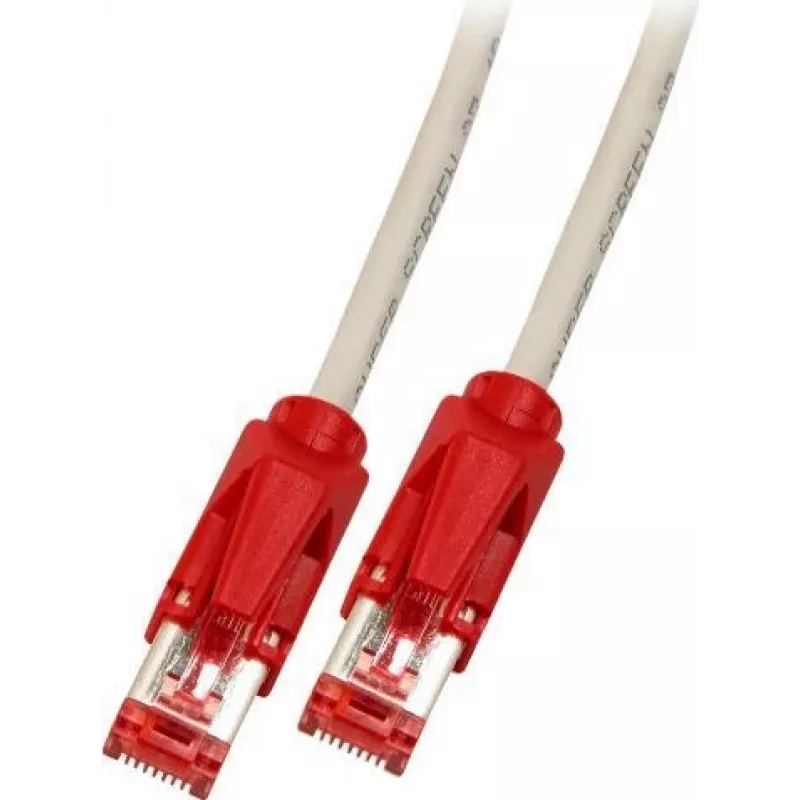

EFB-Elektronik cavo patch RJ45 Cat.6 S/FTP LSZH Draka UC900 TM21 rosso crossover grigio 10 m

The EFB-Elektronik RJ45 Patch Cable Cat.6 S/FTP LSZH Draka UC900 TM21 is a high-performance crossover cable designed for reliable network connections. With a length of 10 meters, this cable features S/FTP shielding (PiMF) for excellent protection against electromagnetic interference, making it ideal for demanding environments. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in case of fire, emitting minimal smoke and no toxic halogen gases. Manufactured by Draka with UC900 TM21 technology, this cable meets stringent quality standards.

Advantages

This crossover cable offers superior signal integrity and data transfer rates up to 1 Gbps, supporting Gigabit Ethernet. The S/FTP shielding provides robust protection against crosstalk and external noise, ensuring stable performance. The LSZH jacket makes it suitable for use in public buildings, schools, and hospitals where safety is paramount. The red cable color with grey boots allows for easy identification in network racks.

Suitable for

• Direct connection between two computers or network devices without a switch
• Network installations in environments requiring low smoke and halogen-free materials
• Data centers, offices, and industrial settings where EMI protection is critical

Key specifications

• Cable Type: Ethernet Crossover Cable
• Connector Type: RJ45 Male to RJ45 Male
• Cable Category: Cat.6
• Shielding Type: S/FTP (PiMF)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Length: 10 m
• Conductor Material: Copper (Cu)
• Conductor Gauge: AWG 27/7
• Wiring Standard: TIA/EIA 568B (Crossover)
• Supported Bandwidth: Up to 250 MHz
• Data Transfer Rate: 10/100/1000Base-T
• Cable Construction: Stranded
• Outer Diameter: Approx. 6.2 mm
• Color: Red (Cable), Grey (Boots)
• Halogen-Free: Yes
• Flame Retardant: Yes
• Operating Temperature: -20°C to +60°C
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Internal Cable Manufacturer: Draka UC900 TM21

Recommendations

For optimal performance, ensure that both connected devices support Gigabit Ethernet and crossover detection (Auto MDI/MDI-X). This cable is ideal for temporary or permanent network setups where direct device-to-device connection is required.
