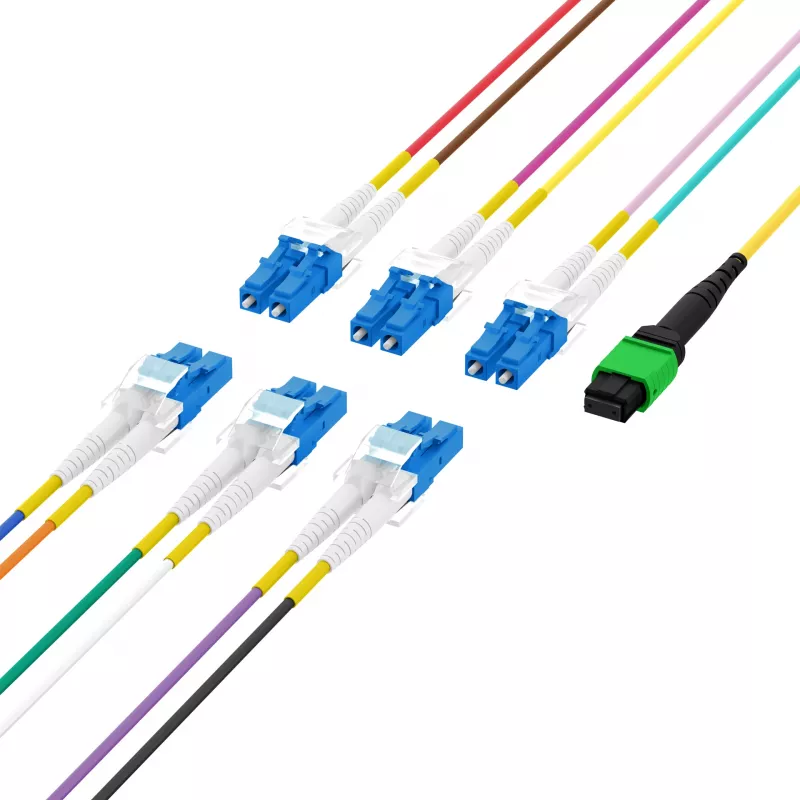

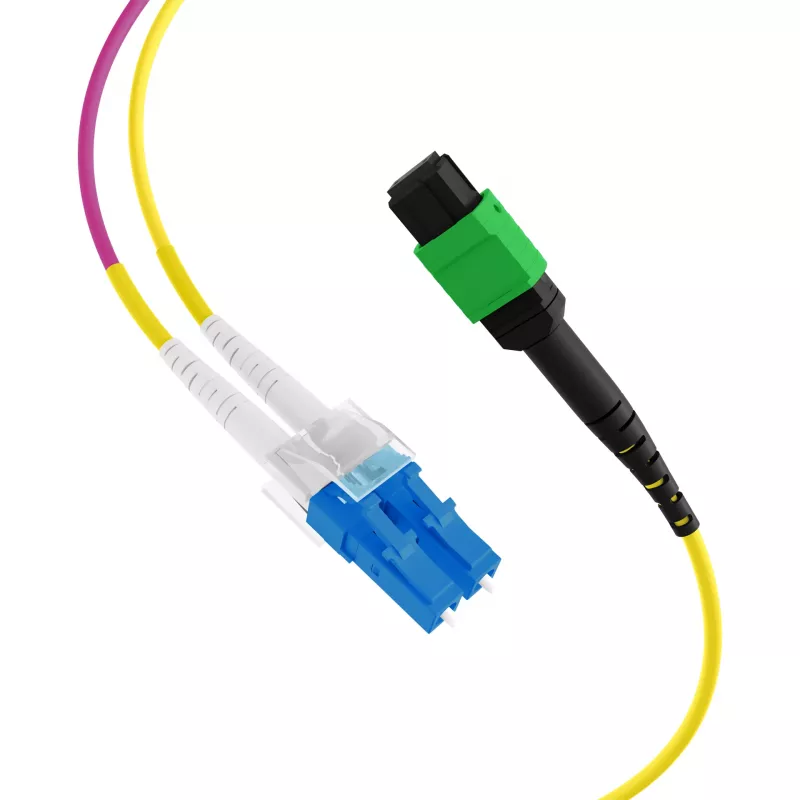

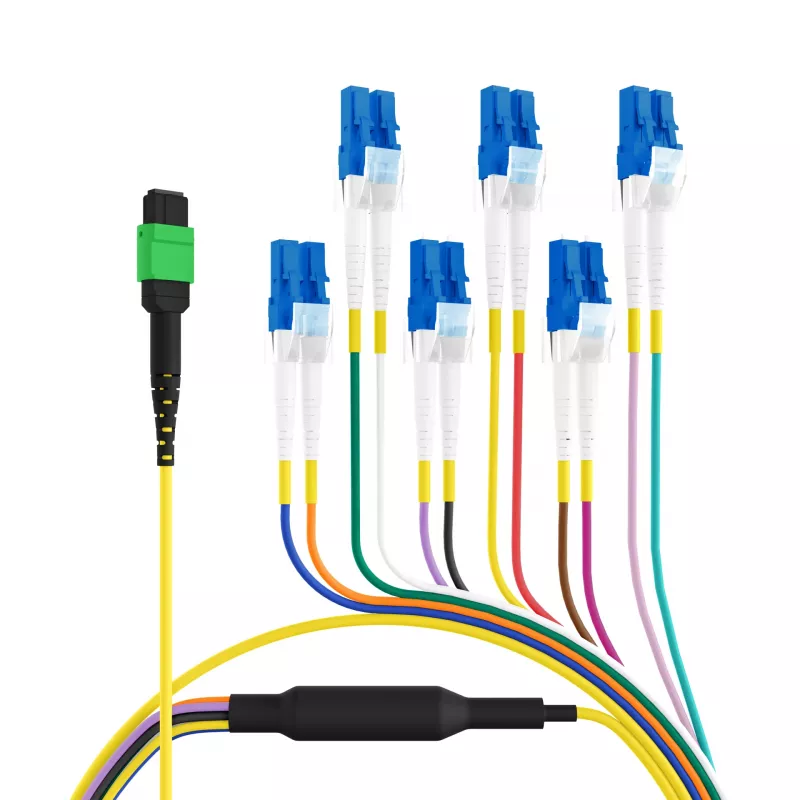

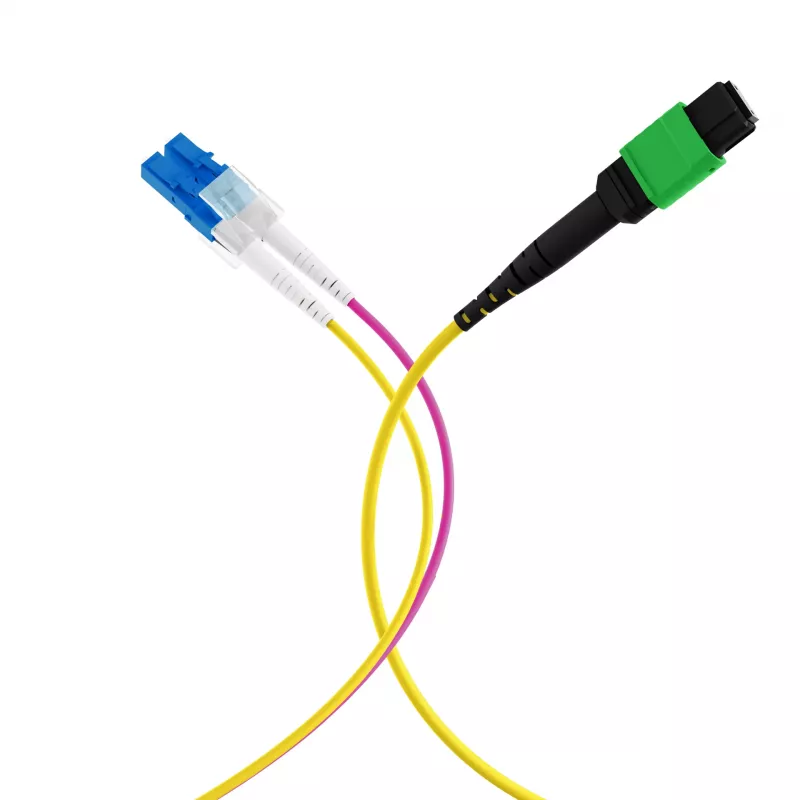

EFB Elektronik cavo trunk MPO-PLUS/APC(F)-LC OS2 12 fibre tipo B LSZH giallo 3m MPOF12LCOS2-3

Fiber optic trunk cable with 12 single-mode OS2 fibers, delivering high-density connectivity for data centers and telecom networks. The MPO-PLUS/APC female connector on one end and LC duplex connectors on the other provide a reliable Type B polarity link over 3 meters.

Advantages

Low insertion loss of ≤0.35 dB and high return loss of ≥60 dB ensure excellent signal integrity. The LSZH jacket is flame-retardant and low-smoke, enhancing safety in enclosed spaces. The yellow jacket allows quick identification of single-mode fiber.

Suitable for

• High-density fiber patching in data centers
• 10GbE, 40GbE, and 100GbE network links
• Telecommunications backbone connections

Key specifications

• Fiber type: OS2 single-mode
• Fiber count: 12
• Connector A: MPO-PLUS/APC (female)
• Connector B: LC duplex (UPC polish)
• Polarity: Type B
• Length: 3 meters
• Jacket material: LSZH
• Cable color: Yellow
• Insertion loss (MPO): ≤0.35 dB
• Return loss (MPO/APC): ≥60 dB
• Wavelengths: 1310 nm, 1550 nm
• Operating temperature: -20°C to +70°C

Recommendations

For optimal performance, pair with MPO/APC adapters and LC duplex patch panels. Verify polarity and cleanliness before installation.
