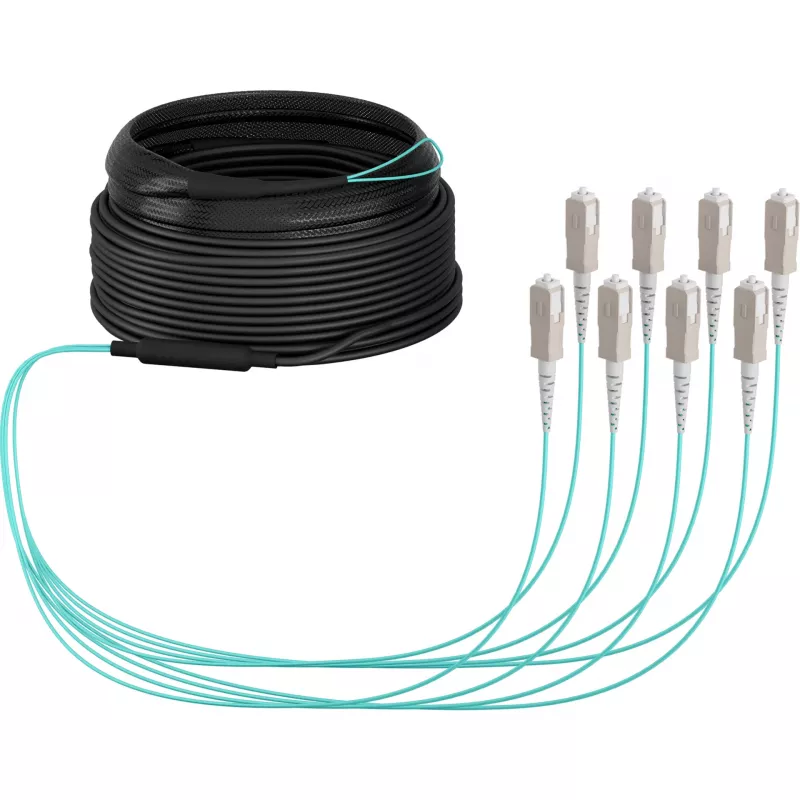

EFB Elektronik cavo trunk U-DQ ZN BH OM3 8G 1x8 SC-SC 30m Dca LSZH - 30 m O8321S30OM3

High-density fiber optic backbone links often suffer from fragile connectors, limited bandwidth, and installation challenges in demanding environments. This 30-meter trunk cable eliminates those pain points with a robust loose-tube design, OM3 multimode fiber, and SC connectors on both ends.

Who is it for

Network engineers and data center managers who need a reliable, pre-terminated fiber trunk for backbone cabling, LAN extensions, or data center interconnects. Ideal for indoor/outdoor installations where rodent protection and low-smoke zero-halogen jacketing are required.

Main features

• 8 OM3 multimode fibers with 50/125 µm core/cladding

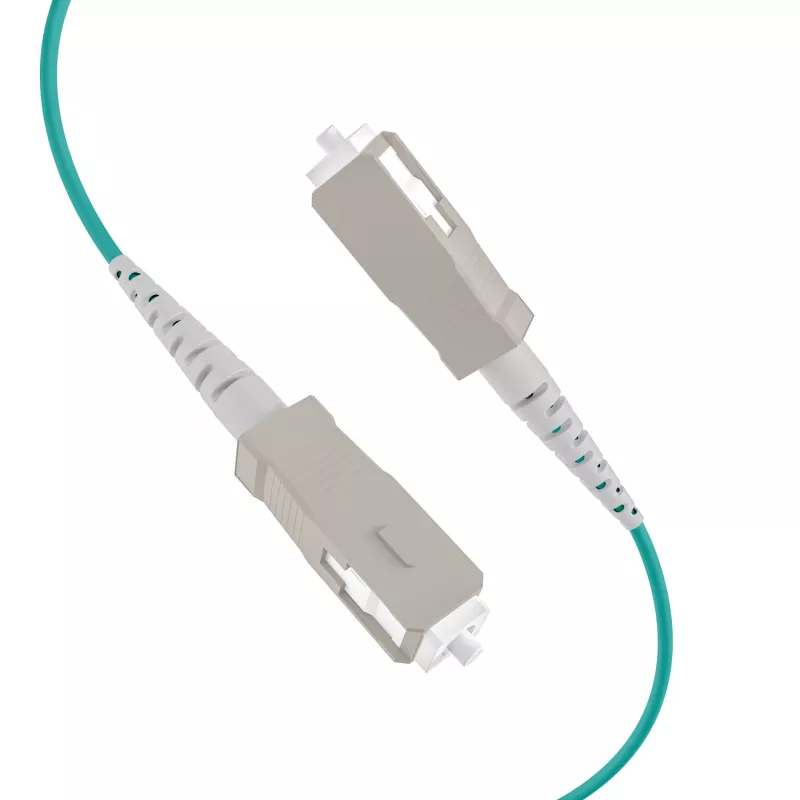

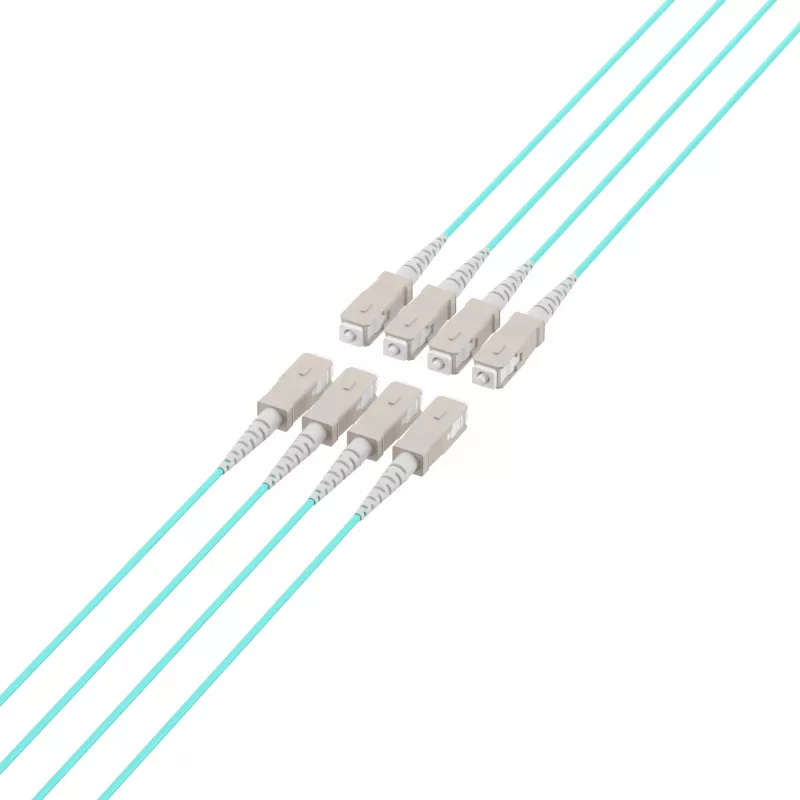

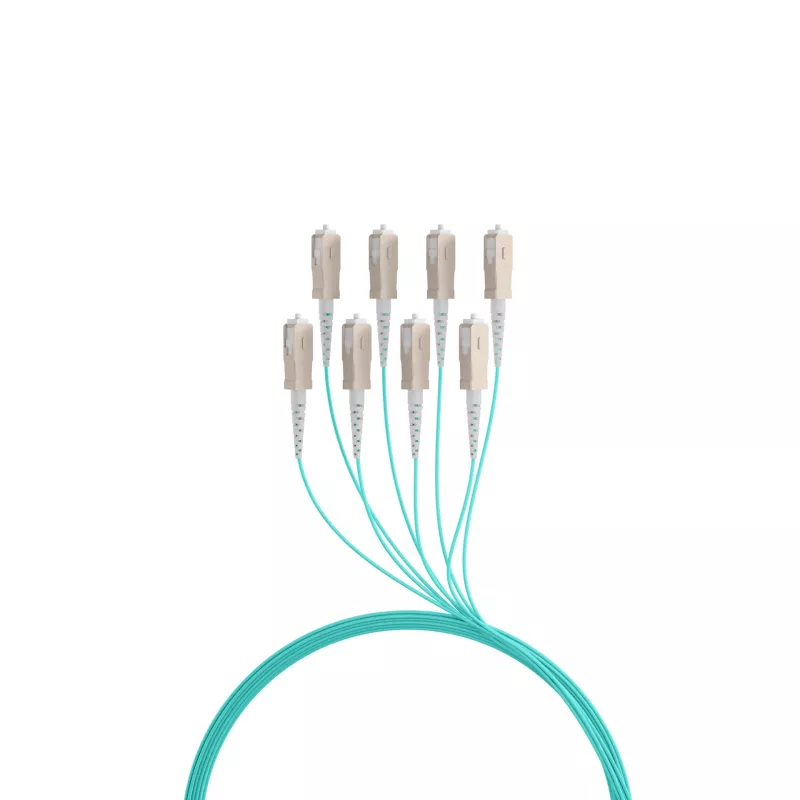

• SC connectors on both ends for quick deployment
• LSZH jacket with Dca fire rating for safety
• Loose tube construction with rodent protection
• Supports 1500 MHz*km bandwidth at 850 nm

Specifications

• Cable type: Fiber optic trunk cable
• Fiber class: OM3
• Number of fibers: 8
• Connector type: SC-SC
• Length: 30 m
• Jacket material: LSZH
• Fire rating: Dca
• Core/cladding diameter: 50/125 µm
• Max bandwidth (850 nm): 1500 MHz*km
• Max bandwidth (1300 nm): 500 MHz*km
• Attenuation (850 nm): ≤ 3.5 dB/km
• Attenuation (1300 nm): ≤ 1.5 dB/km
• Cable construction code: U-DQ ZN BH
• Cable design: Loose tube
• Rodent protection: Yes
• Installation environment: Indoor/outdoor

Tips

To maintain performance, avoid bending the cable beyond its specified minimum bend radius and use proper strain relief at connection points.
