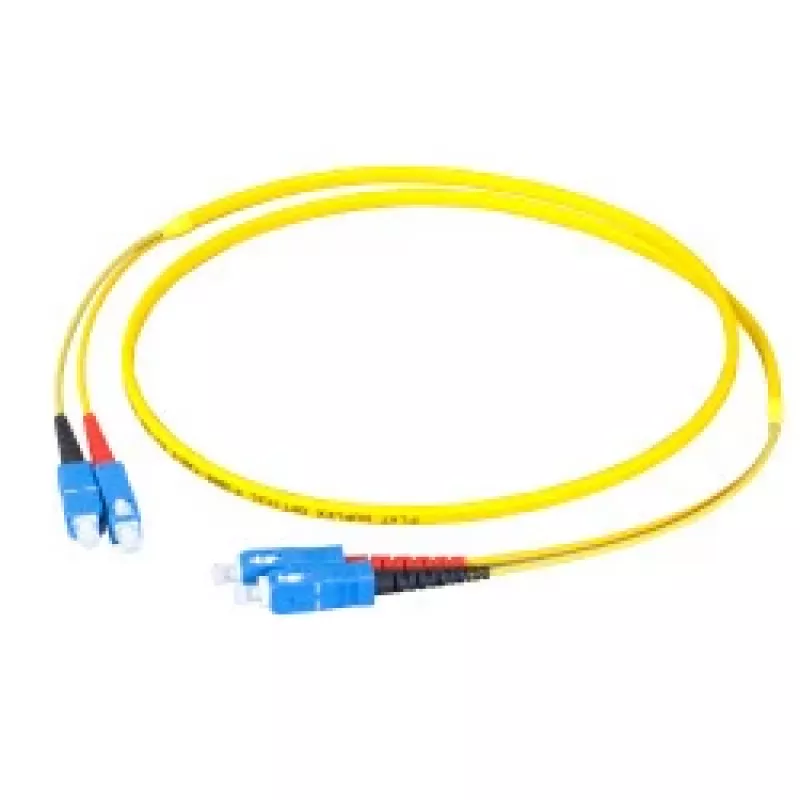

EFB-Elektronik duplex jumper SC-SC 9/125µm OS2 LSZH flat twin 3x5mm giallo 40m

The EFB-Elektronik O2513FT.40 is a high-quality fiber optic patch cable designed for reliable singlemode connections in indoor environments. This duplex jumper features SC to SC connectors, a 9/125µm core/cladding, and OS2 performance, ensuring low signal loss and high bandwidth for demanding network applications. The cable is constructed with a Low Smoke Zero Halogen (LSZH) jacket, making it safe for use in confined spaces where fire safety is critical. Its flat twin profile (3x5mm) allows for easy installation in tight spaces and under carpets. With a length of 40 meters and a distinctive yellow color, this cable is ideal for data centers, telecommunications rooms, and enterprise networks.

Advantages

This fiber optic patch cable offers several key benefits: LSZH jacket reduces toxic smoke and halogen emissions in case of fire, enhancing safety in indoor environments. The flat twin design saves space and simplifies cable management. Singlemode OS2 technology supports high-speed data transmission over long distances with minimal attenuation. Duplex configuration enables bidirectional communication, essential for most network equipment.

Suitable for

• Data centers and server rooms
• Telecommunications infrastructure
• Enterprise local area networks (LANs)
• Fiber-to-the-desk (FTTD) installations
• Any indoor application requiring reliable singlemode fiber connectivity

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Singlemode
• Fiber Core/Cladding Diameter: 9/125 µm
• Fiber Category: OS2
• Connector A: SC
• Connector B: SC
• Configuration: Duplex
• Length: 40 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Cable Profile: Flat Twin
• Cross-section: 3 x 5 mm
• Application: Indoor
• Flame Retardancy: Yes (LSZH compliant)

Recommendations

For optimal performance, ensure that the connectors are clean and properly mated. Use appropriate cable management to avoid sharp bends and maintain signal integrity. This cable is compatible with all standard SC duplex ports.
