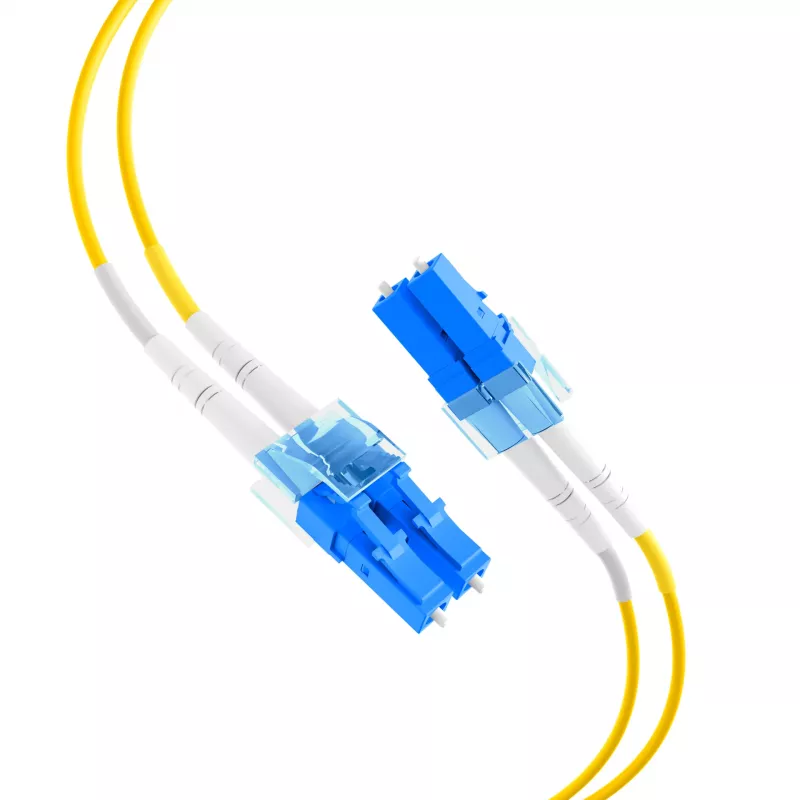

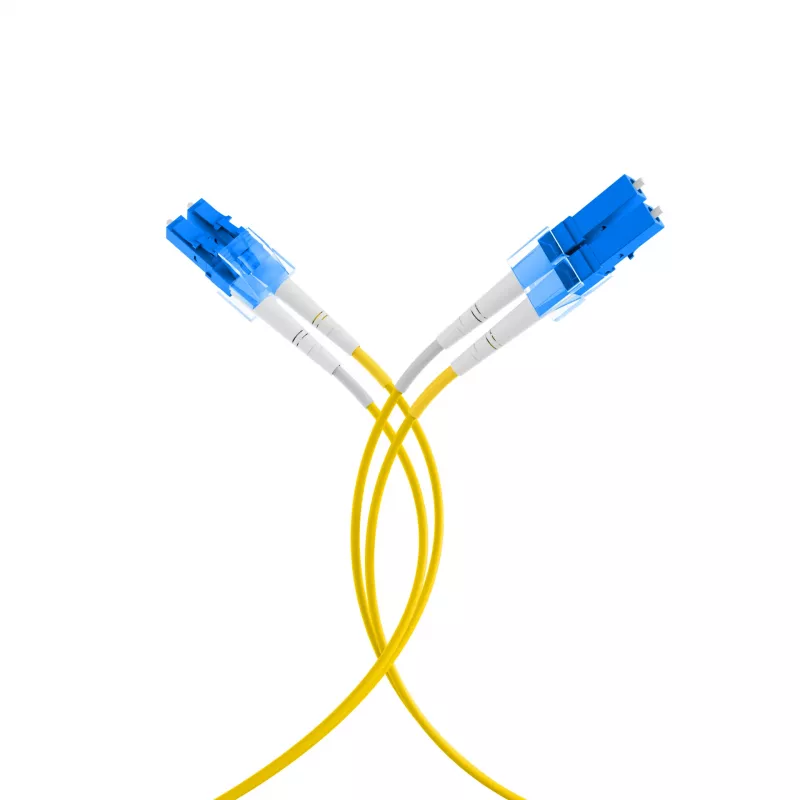

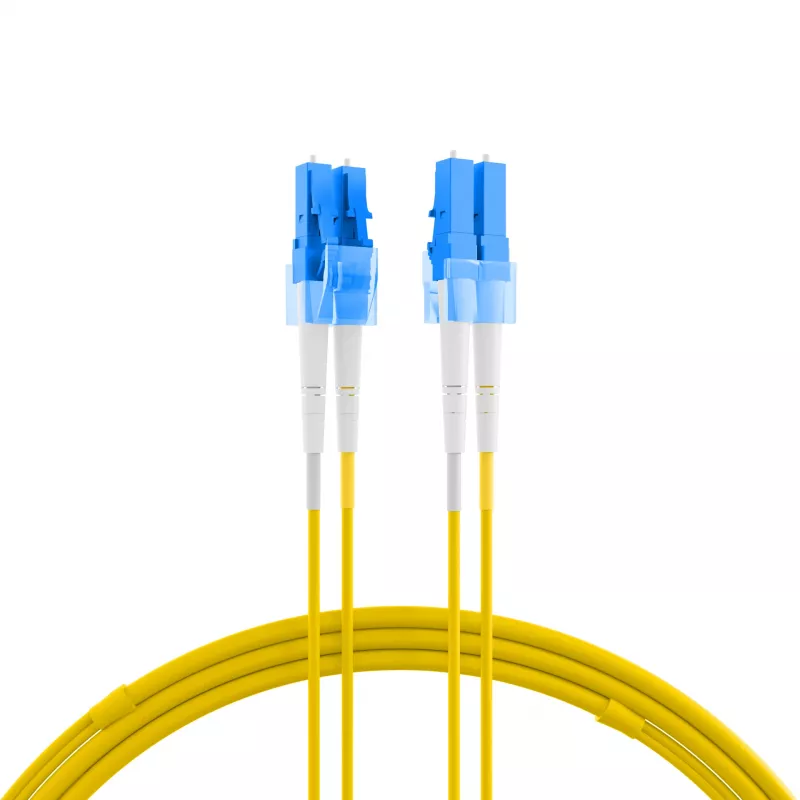

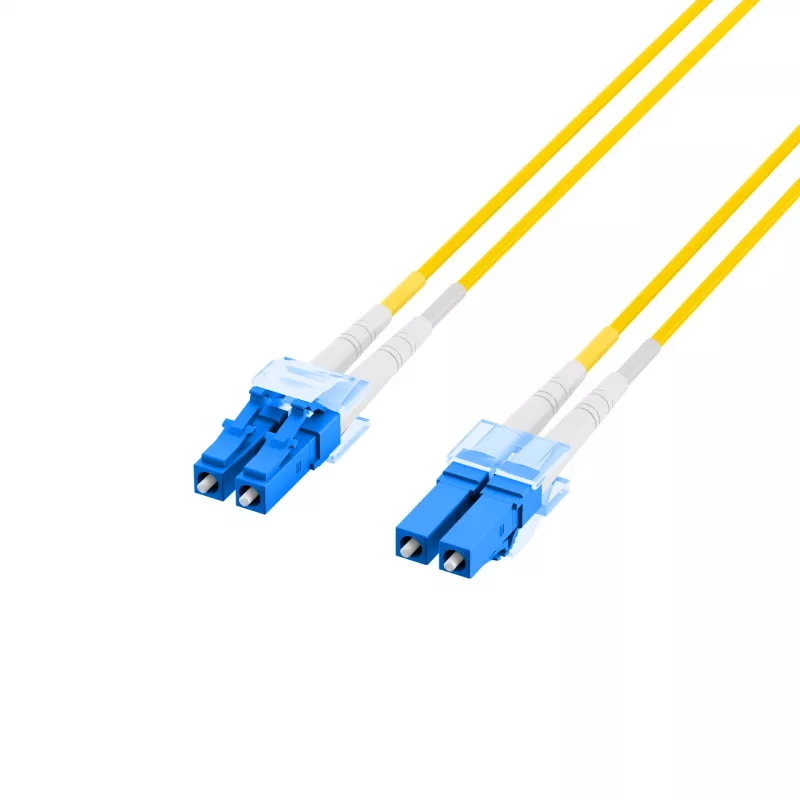

EFB Elektronik IPL-DR-LCULCU-2-0100 - 1 m - I-V(ZN) H - OS2 - LC - LC cavo patch in fibra ottica duplex

The EFB Elektronik IPL-DR-LCULCU-2-0100 is a high-quality single-mode fiber optic patch cable designed for reliable data transmission in indoor and outdoor environments. With a length of 1 meter and duplex LC to LC connectors, this OS2-rated cable ensures low insertion loss and high return loss, making it ideal for demanding network applications.

Advantages

This cable features a robust LSZH (Low Smoke Zero Halogen) jacket that provides safety in case of fire, emitting minimal smoke and no toxic halogen gases. The I-V(ZN) H construction allows for both indoor and outdoor use, offering flexibility in installation. With typical insertion loss ≤0.3 dB and return loss ≥50 dB (UPC), signal integrity is maintained over the cable's length.

Suitable for

• Data center interconnections
• Telecommunications networks
• Fiber-to-the-home (FTTH) installations
• Local area networks (LANs) requiring high bandwidth

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode
• Fiber Standard: OS2
• Connector Type A: LC
• Connector Type B: LC
• Cable Configuration: Duplex
• Cable Length: 1 m
• Fiber Core/Cladding Diameter: 9/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Cable Designation: I-V(ZN) H
• Insertion Loss (typical): ≤ 0.3 dB
• Return Loss (typical): ≥ 50 dB (UPC)
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -20°C to 70°C
• Minimum Bend Radius: 10 mm
• Attenuation at 1310 nm: ≤ 0.35 dB/km
• Attenuation at 1550 nm: ≤ 0.25 dB/km
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure that connectors are clean before installation. This cable is compatible with standard LC duplex interfaces and is suitable for use with 10G, 40G, and 100G Ethernet applications over short distances.
