EFB Elektronik IPL-DR-LCULCU-2-0300 cavo patch in fibra ottica duplex OS2 LC/UPC 3 m giallo LSZH

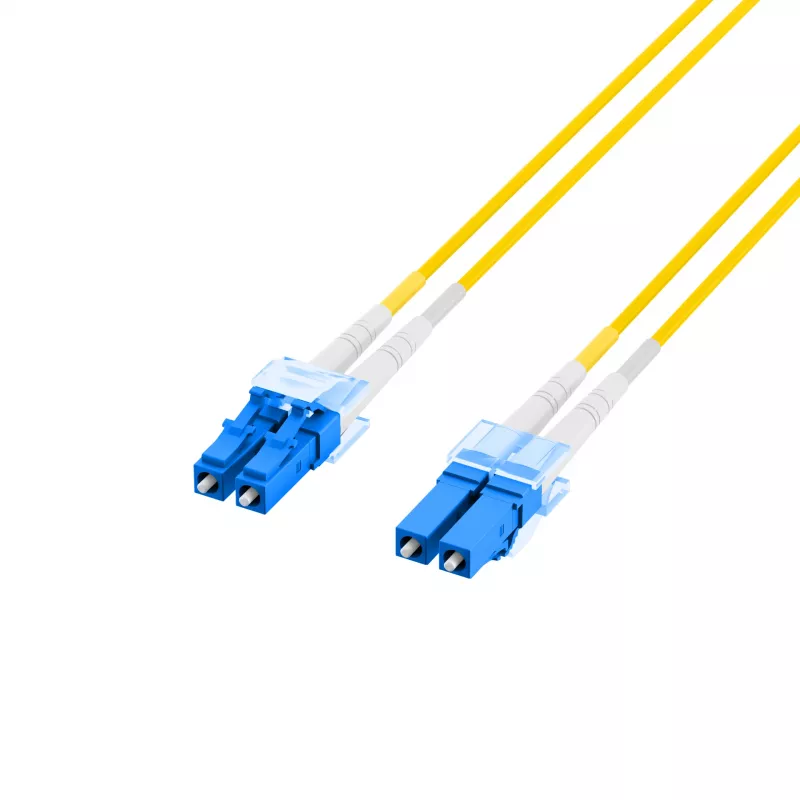

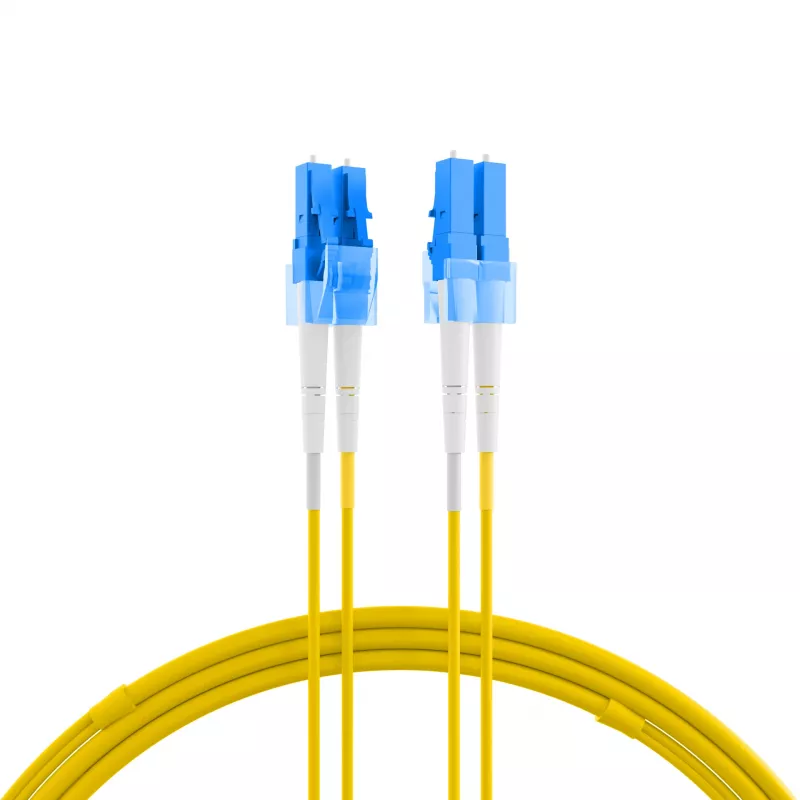

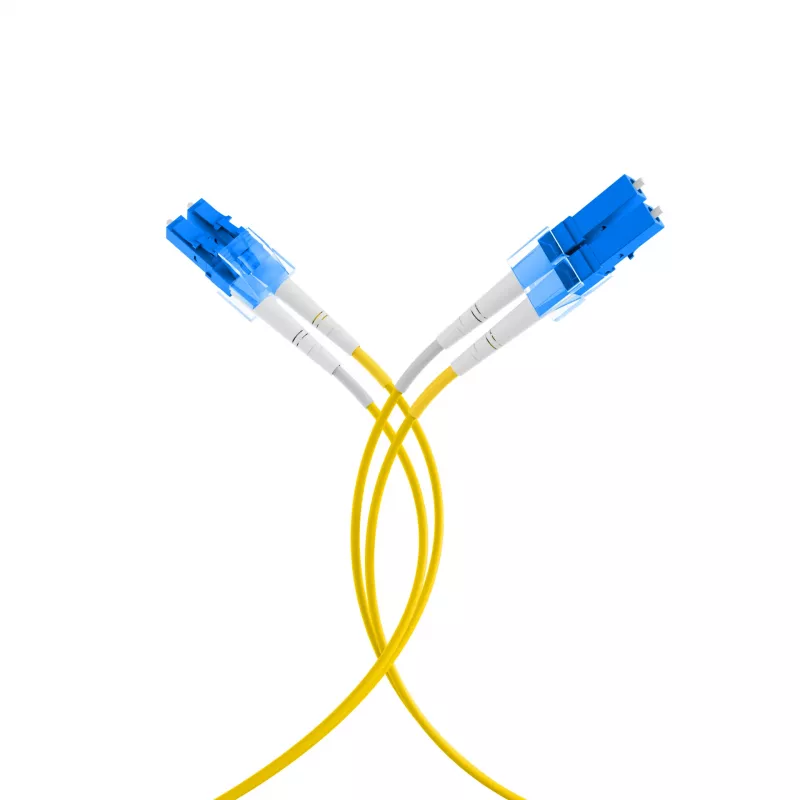

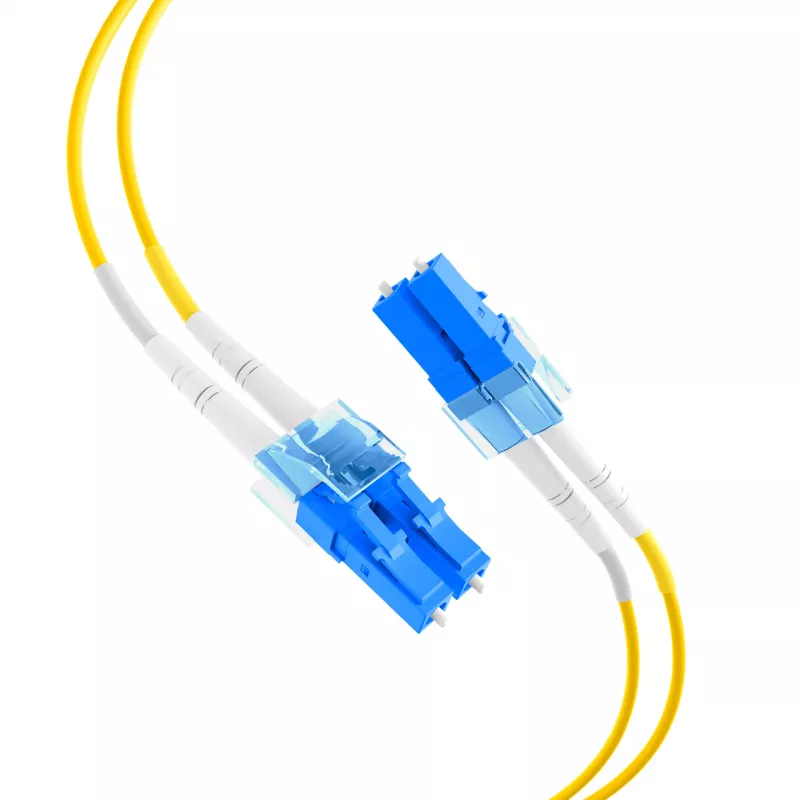

The EFB Elektronik IPL-DR-LCULCU-2-0300 is a high-quality 3-meter OS2 single-mode duplex fiber optic patch cable, designed for reliable and high-speed data transmission in data centers, LAN, SAN, FTTx, and telecommunications networks. With LC/UPC connectors on both ends and a yellow LSZH jacket, this cable ensures low insertion loss and high return loss, meeting the stringent requirements of modern network infrastructures.

Advantages

This fiber optic patch cable offers exceptional performance with insertion loss less than 0.3 dB and return loss greater than 50 dB, ensuring minimal signal degradation and reliable connectivity. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces by reducing toxic fumes and smoke in case of fire. The duplex zipcord construction allows for easy handling and installation, while the OS2 standard ensures compatibility with long-distance single-mode applications.

Suitable for

• Data centers requiring high-density and high-performance cabling
• Local Area Networks (LAN) and Storage Area Networks (SAN)
• FTTx (Fiber to the x) deployments
• Telecommunications infrastructure
• Any application demanding reliable single-mode fiber connectivity

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode
• Fiber Standard: OS2 (ITU-T G.657.A1/G.652.D)
• Connector A: LC/UPC
• Connector B: LC/UPC
• Connector Type: Duplex
• Cable Length: 3 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Insertion Loss: < 0.3 dB
• Return Loss: > 50 dB
• Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Number of Fibers: 2
• Cable Construction: Duplex Zipcord
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, REACH, CE

Recommendations

For optimal performance, ensure that connectors are clean before installation. This cable is ideal for patching between patch panels, switches, and optical transceivers in structured cabling systems. Pair with appropriate single-mode SFPs for best results.
