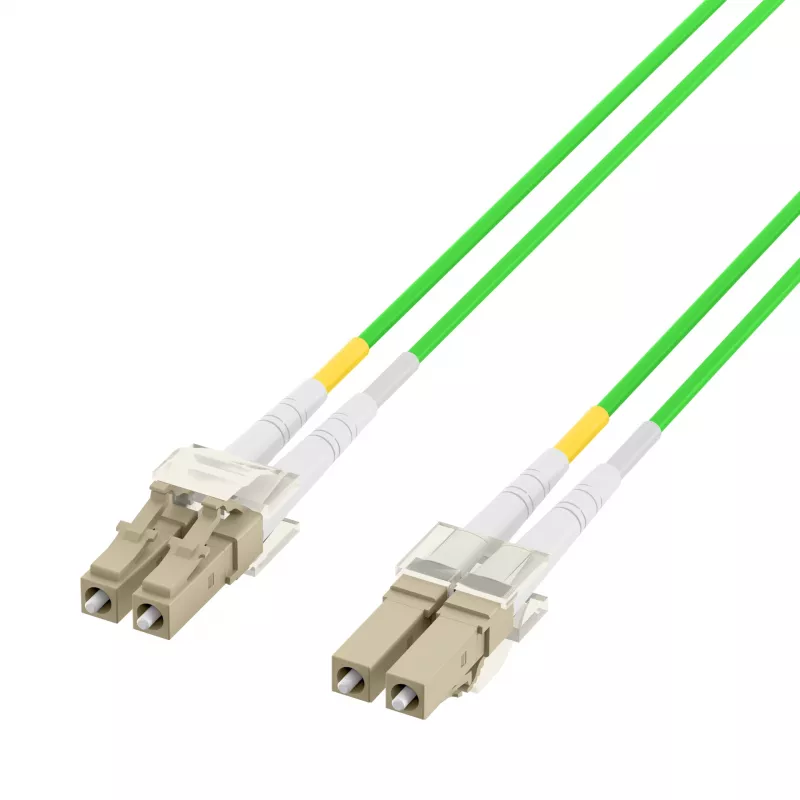

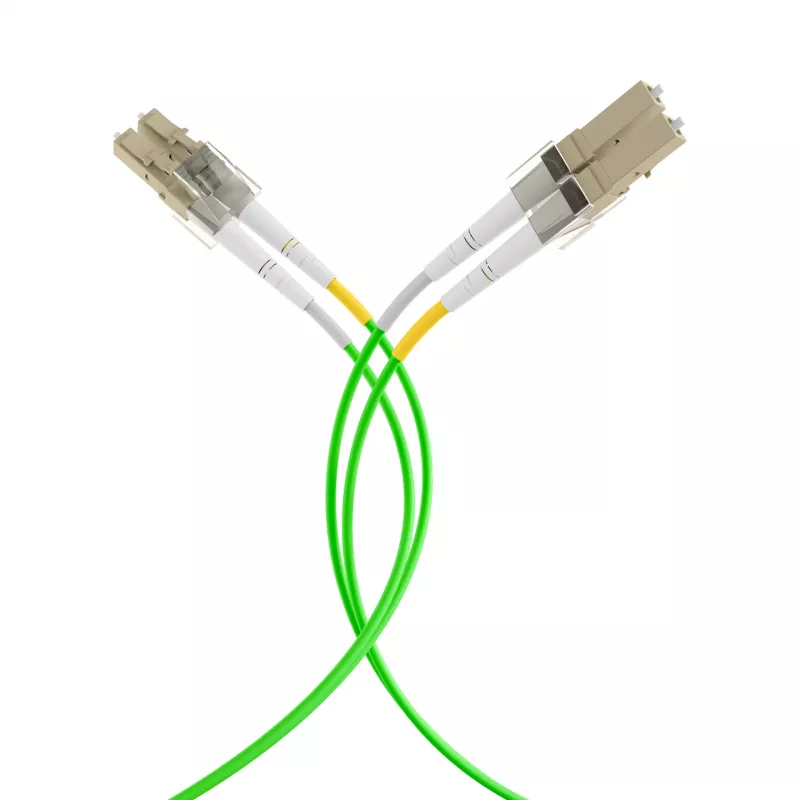

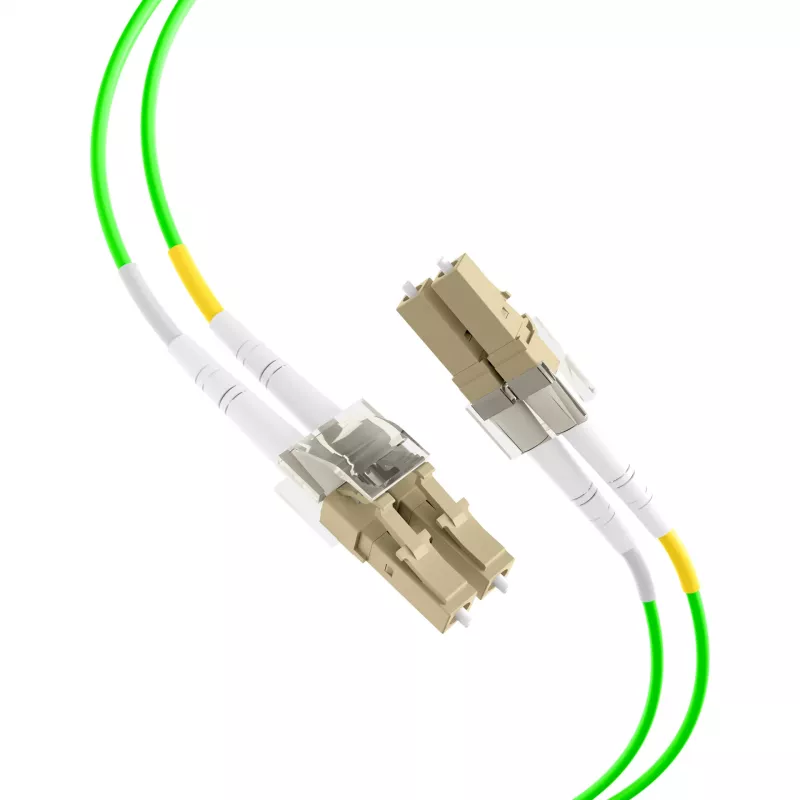

EFB Elektronik IPL-DR-LCULCU-5-1000 cavo patch duplex OM5 LC/UPC su LC/UPC 10 m LSZH verde lime

The EFB Elektronik IPL-DR-LCULCU-5-1000 is a high-performance duplex multimode OM5 patch cable designed for demanding data center and enterprise network applications. With LC/UPC connectors on both ends and a length of 10 meters, this cable supports high-speed data transmission up to 400 Gigabit Ethernet. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in confined spaces, while the lime green color provides easy identification.

Advantages

Optimized for OM5 wideband multimode fiber, this cable delivers exceptional bandwidth over multiple wavelengths (850 nm and 953 nm), making it future-proof for next-generation networks. The low insertion loss (≤0.3 dB) and high return loss (≥30 dB) guarantee reliable signal integrity. The I-V(ZN)H construction offers non-metallic strain relief and halogen-free flame retardancy, ideal for indoor installations.

Suitable for

• Data centers requiring high-density cabling
• 10/40/100/200/400 Gigabit Ethernet networks
• Enterprise LAN backbones
• Telecommunications rooms
• High-speed storage area networks (SAN)

Key specifications

• Cable type: Duplex Patch Cable
• Fiber type: Multimode OM5 (50/125 µm)
• Connectors: LC/UPC to LC/UPC
• Length: 10 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Lime Green
• Insertion loss (max): ≤0.3 dB
• Return loss (min): ≥30 dB
• Bandwidth: 4700 MHz·km @850 nm, 2470 MHz·km @953 nm
• Operating temperature: -20°C to 70°C
• Minimum bend radius: 7.5 mm
• Standards: IEC 60793-1, IEC 60794-2, TIA/EIA-568.3-D, ISO/IEC 11801

Recommendations

For optimal performance, pair this cable with OM5-compatible transceivers and ensure proper handling to maintain bend radius specifications. Ideal for structured cabling systems requiring high bandwidth and low latency.
