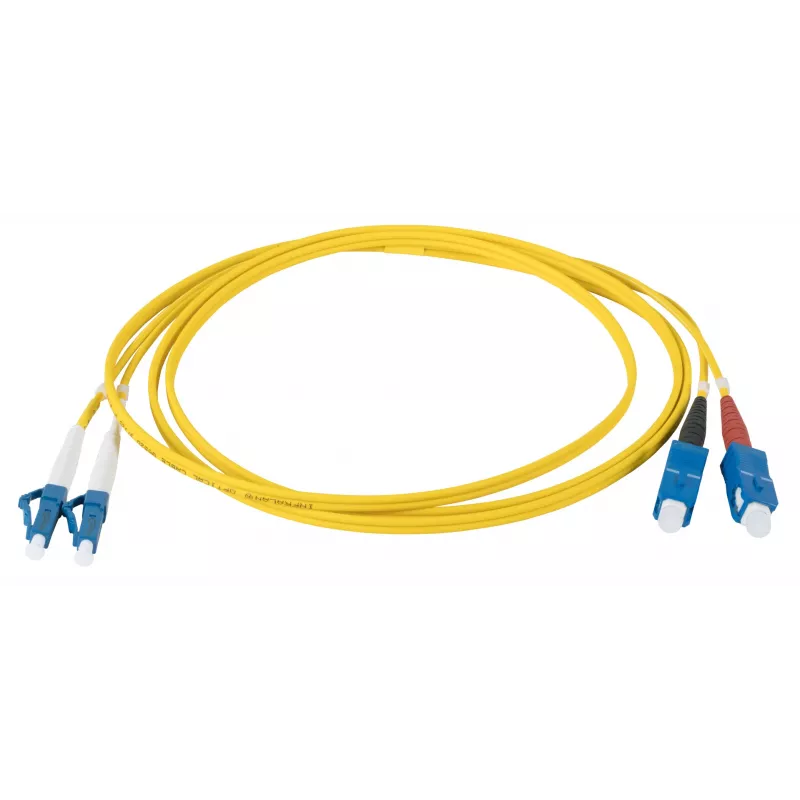

EFB Elektronik IPL-DR-LCUSCU-2-0100 cavo patch in fibra ottica monomodale duplex OS2 LC/SC 1 m LSZH giallo

The EFB Elektronik IPL-DR-LCUSCU-2-0100 is a high-quality 1-meter OS2 single-mode duplex fiber optic patch cable, designed for reliable data transmission in structured cabling and data center environments. Featuring LC/UPC to SC/UPC connectors, a LSZH (Low Smoke Zero Halogen) jacket, and yellow color coding, this cable ensures low insertion loss and high return loss, meeting stringent industry standards.

Advantages

This fiber optic patch cable offers exceptional performance with typical insertion loss ≤0.3 dB and return loss ≥50 dB, ensuring minimal signal degradation. The LSZH jacket provides enhanced safety in enclosed spaces by reducing toxic smoke and corrosive gases in case of fire. The duplex construction supports bidirectional communication, making it ideal for high-speed networks.

Suitable for

• Data center interconnects
• Telecommunications networks
• Fiber-to-the-home (FTTH) installations
• Local area networks (LAN) requiring single-mode fiber
• High-speed data transmission up to 10 Gbps and beyond

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Single-mode (OS2)
• Connector A: LC/UPC
• Connector B: SC/UPC
• Cable Length: 1 meter
• Number of Fibers: 2 (Duplex)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Cable Diameter: 3.0 mm
• Insertion Loss (typical): ≤ 0.3 dB
• Return Loss (typical): ≥ 50 dB
• Polarity: A-B (Crossed)
• Operating Temperature: -20°C to 70°C
• Standards: IEC 61753-1, IEC 61754-20, IEC 60794-2, RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and SC ports. Suitable for use with SFP, SFP+, and other single-mode transceivers.
