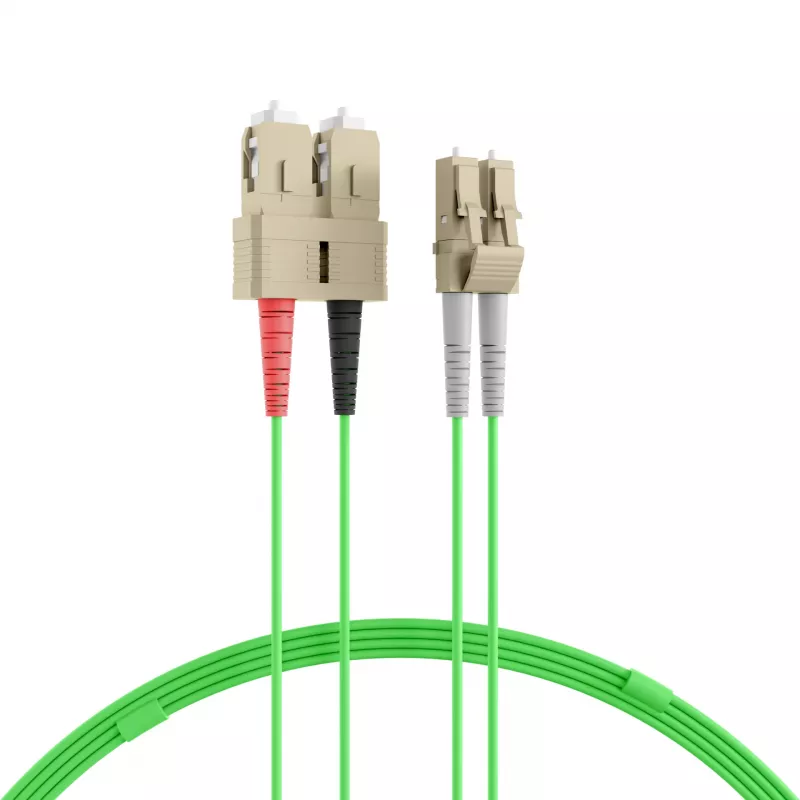

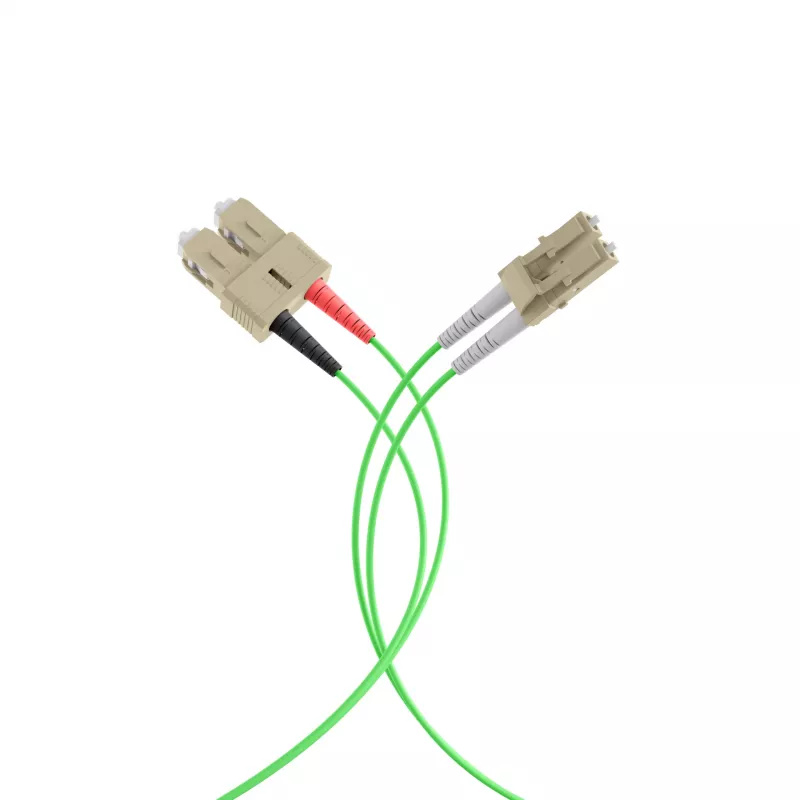

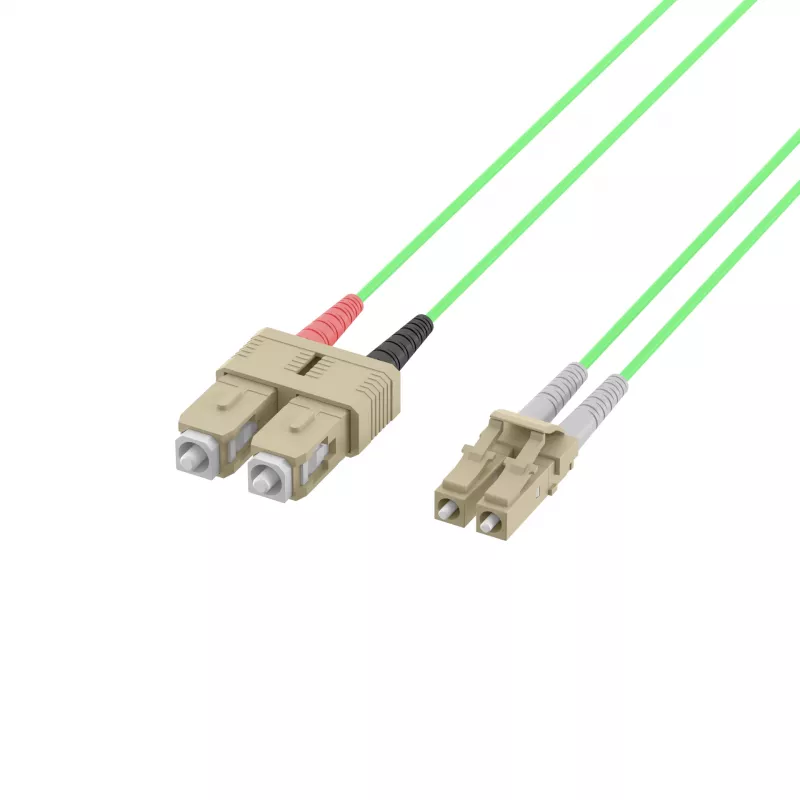

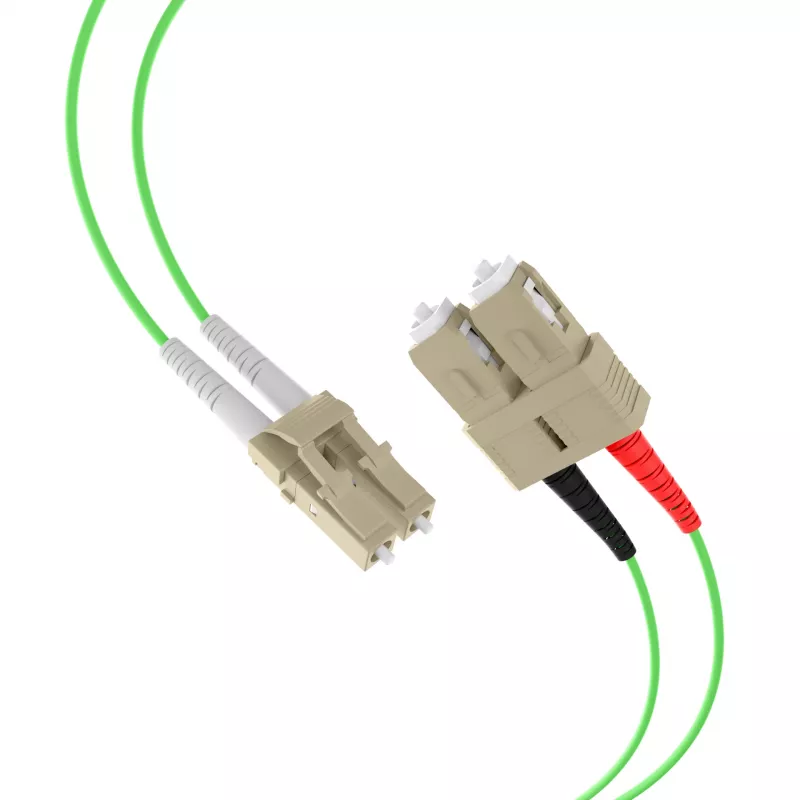

EFB Elektronik IPL-DR-LCUSCU-5-0100 Cavo patch in fibra ottica, 1 m, OM5, LC su SC, simplex, LSZH, verde lime

The EFB Elektronik IPL-DR-LCUSCU-5-0100 is a high-performance fiber optic patch cable designed for reliable data transmission in indoor environments. With a length of 1 meter, this simplex cable features LC to SC connectors and OM5 wideband multimode fiber (WBMMF), supporting high-bandwidth applications over multiple wavelengths.

Advantages

OM5 fiber provides enhanced modal bandwidth compared to OM4, enabling support for shortwave wavelength division multiplexing (SWDM) and future-proofing your network for higher data rates. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in confined spaces by reducing toxic smoke emissions in case of fire.

Suitable for

• Data center interconnects
• High-speed local area networks (LANs)
• Telecommunications infrastructure
• Fiber-to-the-desk applications

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM5 (WBMMF)
• Connector A: LC
• Connector B: SC
• Cable Length: 1 m
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Jacket Material: LSZH
• Cable Construction: I-V(ZN) H (Indoor, Loose Tube, Non-Metallic Strain Relief)
• Number of Fibers: Simplex
• Attenuation (850 nm): ≤ 2.5 dB/km
• Attenuation (953 nm): ≤ 2.5 dB/km
• Attenuation (1300 nm): ≤ 0.8 dB/km
• Modal Bandwidth (850 nm): 4700 MHz·km
• Modal Bandwidth (953 nm): 2470 MHz·km
• Cable Color: Lime Green
• Application Environment: Indoor
• Standards Compliance: IEC 60793-2-10 Type A1a.4

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for high-density patching areas where space and safety are priorities.
