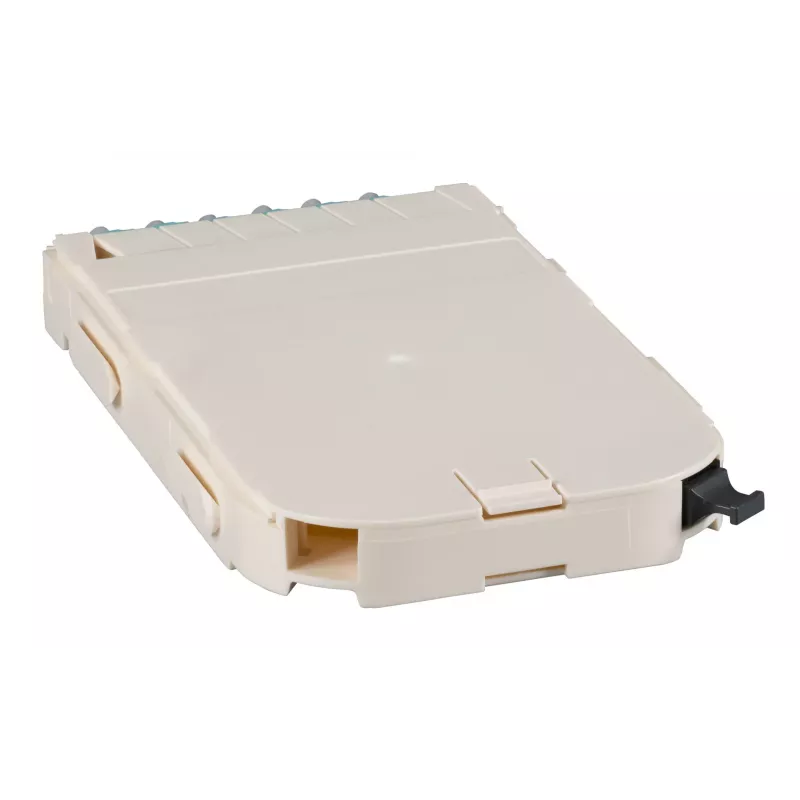

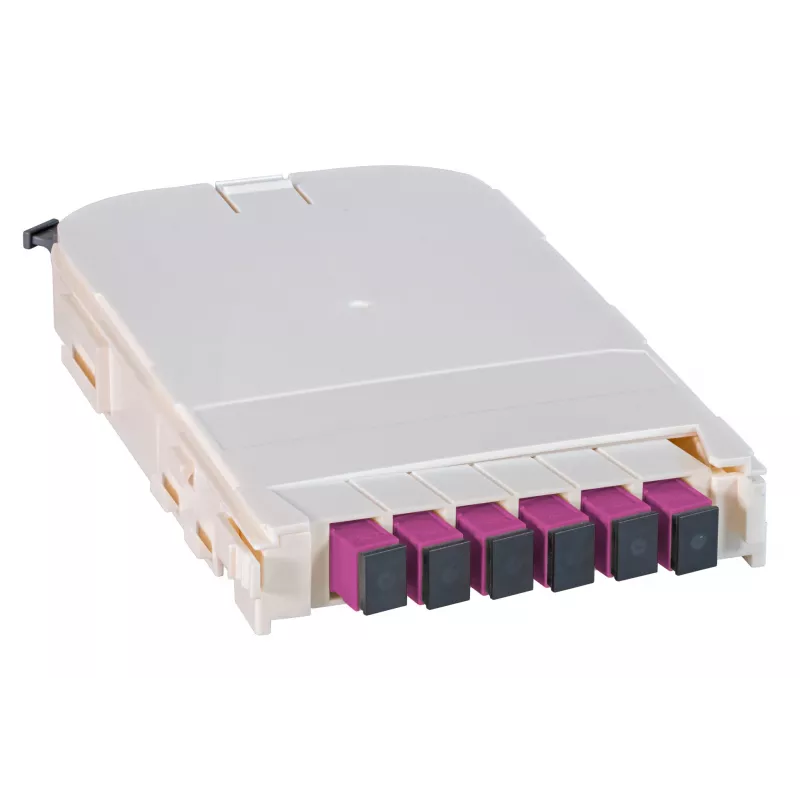

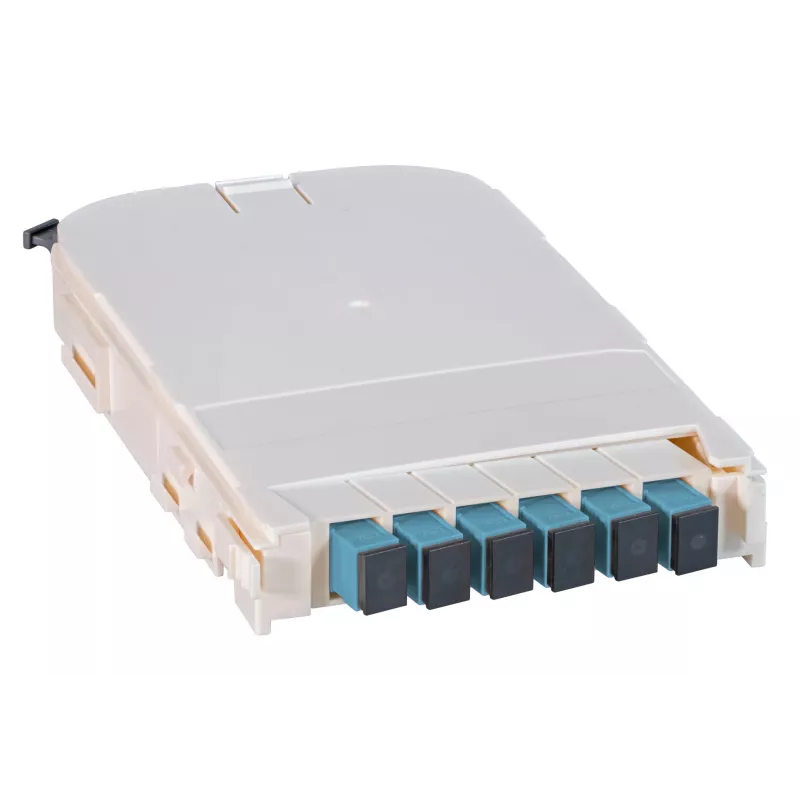

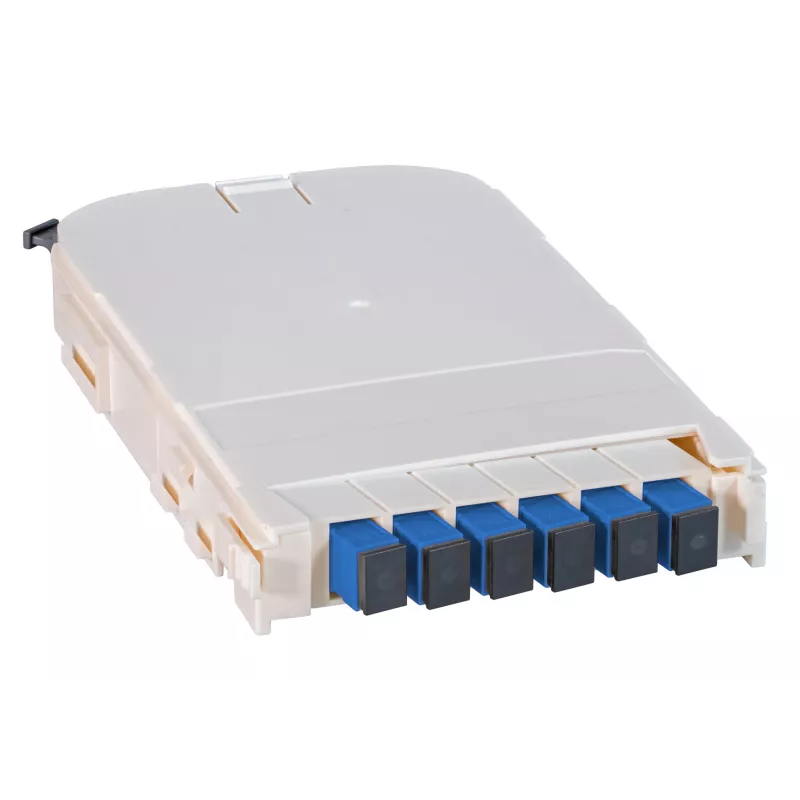

EFB Elektronik Modulo FTTH per FTTH-BGT, 6 porte SC con accoppiatori in ceramica OM3

The EFB Elektronik FTTH Module Insert is a high-quality fiber optic module designed for seamless integration into FTTH-BGT enclosures. This 6-port SC simplex module features OM3 multimode ceramic couplers, ensuring reliable and high-speed data transmission for Fiber to the Home networks. Ideal for network installers and telecom professionals, this module insert offers low insertion loss and high return loss, supporting wavelengths of 850 nm and 1300 nm with data rates up to 10 Gbps over 300 meters and 40/100 Gbps over shorter distances.

Advantages

This module insert provides easy snap-in mounting for quick installation, robust housing for durability, and compliance with RoHS and REACH standards. The ceramic ferrule adapters ensure precise alignment and minimal signal loss, making it a dependable choice for FTTH applications.

Suitable for

• FTTH (Fiber to the Home) network installations
• Integration with EFB-Elektronik FTTH-BGT enclosures
• High-speed data transmission up to 10 Gbps and beyond
• Multimode fiber optic networks using OM3 fiber

Key specifications

• Product Type: Fiber Optic Module Insert
• Number of Ports: 6
• Connector Type: SC Simplex
• Fiber Mode: Multimode OM3
• Adapter Material: Ceramic
• Coupling Type: SC/UPC
• Insertion Loss: < 0.3 dB (typical)
• Return Loss: > 35 dB (typical)
• Wavelength Support: 850 nm, 1300 nm
• Max Data Rate: Up to 10 Gbps (300m), 40/100 Gbps (shorter distances)
• Operating Temperature: -10°C to +60°C
• Storage Temperature: -20°C to +70°C
• Standards Compliance: RoHS, REACH
• Mounting Type: Snap-in

Recommendations

For optimal performance, pair this module insert with OM3 patch cables and ensure proper cleaning of all connectors. Ideal for FTTH deployments requiring high bandwidth and reliability.
