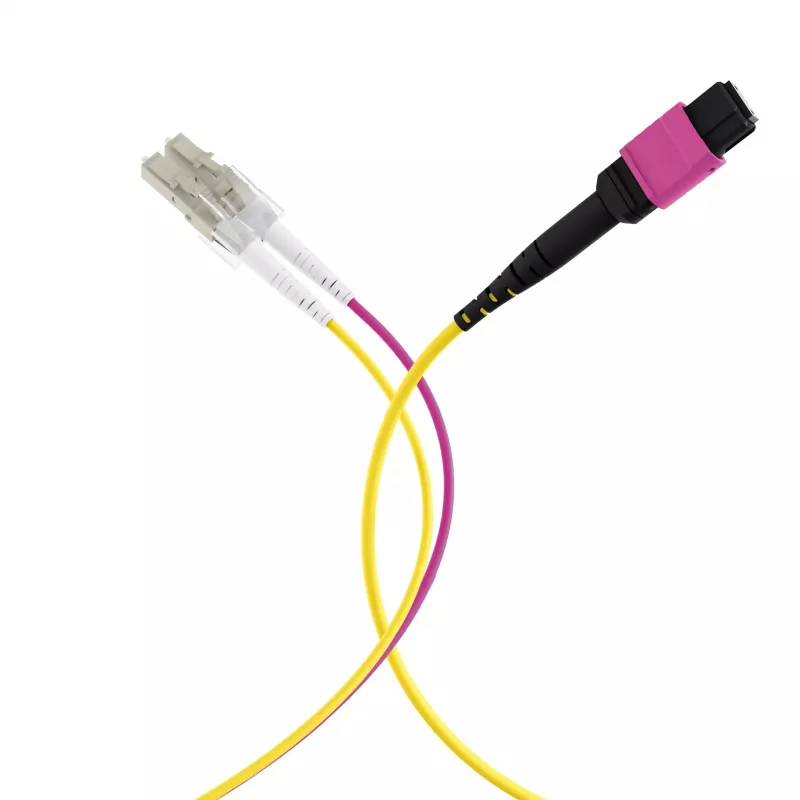

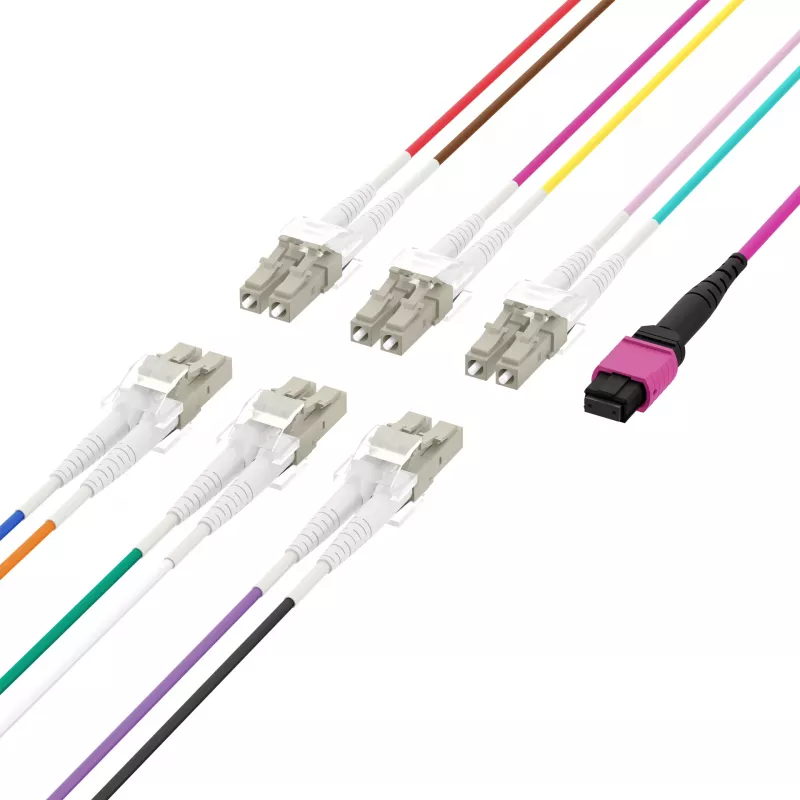

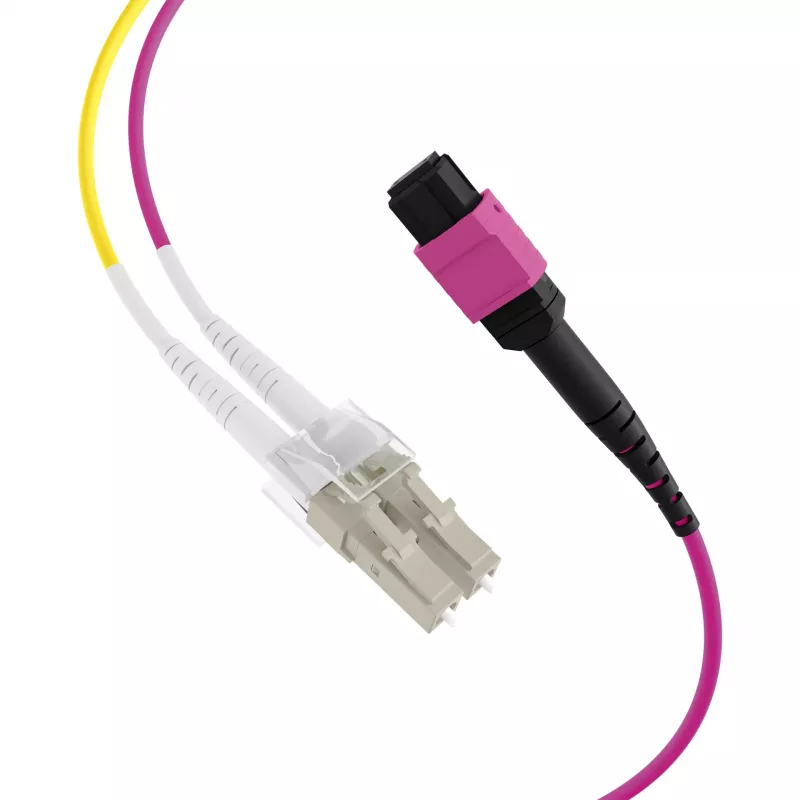

MPO-PLUS (F) su LC cavo trunk OM4 12 fibre tipo B LSZH Erika viola 2m MPOF12LCOM4-2

Fiber optic trunk cable with MPO-PLUS female to LC connectors, delivering high-density OM4 multimode connectivity for data centers and enterprise networks. Its 12 fibers in a Type B polarity configuration support parallel optic transmission, while the LSZH jacket ensures low smoke and zero halogen emissions for safe indoor deployment.

Advantages

The OM4 fiber provides extended reach for 40G and 100G Ethernet, with an effective modal bandwidth of 4700 MHz·km at 850 nm. The MPO-PLUS connector offers high-density patching, reducing cable bulk and simplifying installation. The LSZH jacket meets stringent fire safety requirements, making it suitable for plenum and riser environments. The Erika violet color aids in quick identification of OM4 cabling.

Suitable for

• Data center backbone and horizontal cabling
• High-density fiber distribution areas
• 40G and 100G parallel optic links
• Storage area networks (SAN) and local area networks (LAN)

Key specifications

• Connector A: MPO-PLUS (female)
• Connector B: LC (12 fibers, simplex or duplex)
• Cable length: 2 m
• Fiber type: OM4 multimode, 50/125 µm
• Polarity: Type B
• Jacket material: LSZH
• Color: Erika violet
• MPO polish: Flat; LC polish: UPC
• Flame retardancy: IEC 60332-1

Recommendations

Ideal for structured cabling in data centers where high port density and reliable performance are required. Verify polarity and connector gender before ordering to ensure compatibility with your equipment.
