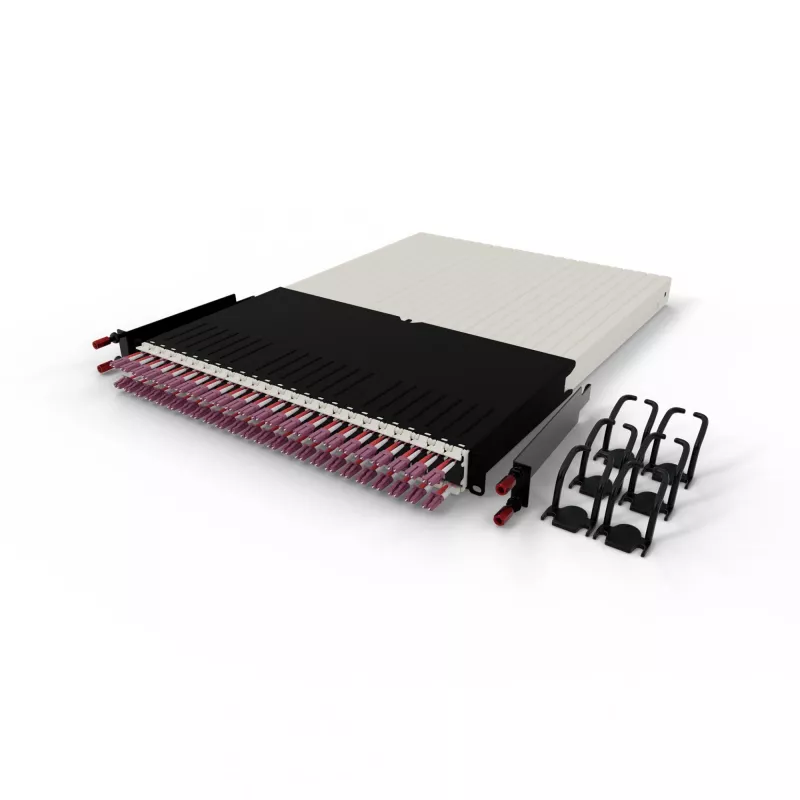

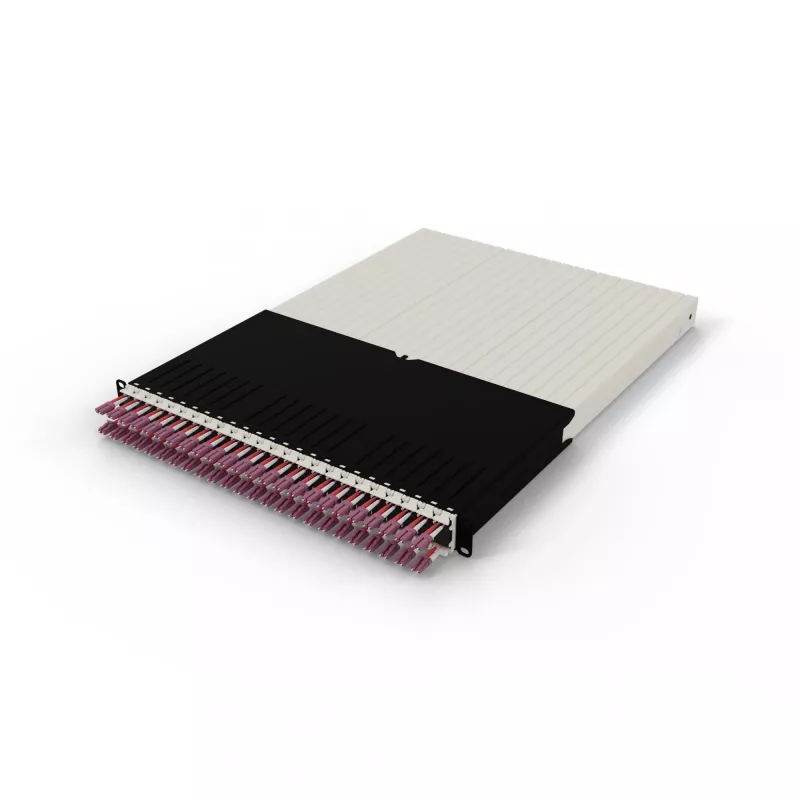

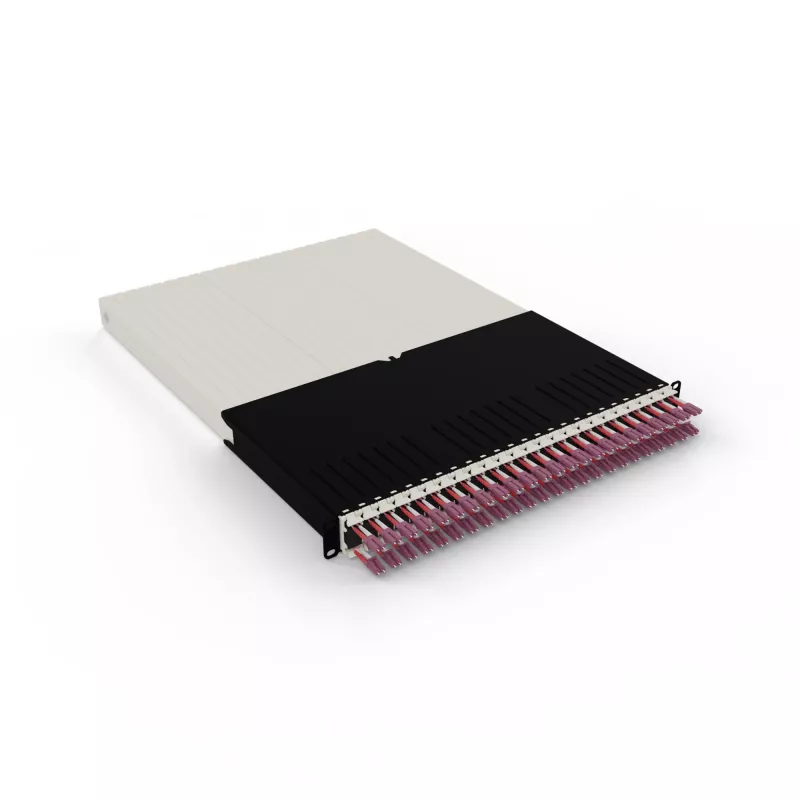

Cavo in fibra ottica InfiniBand PATCHBOX 1,8 m LC LC/LC OM4

Fibre optic cable management system with retractable OM4 LC-LC duplex patch cords, engineered for high-density network racks. The patchbox.one delivers 1.8m of bend-insensitive Corning® ClearCurve® fibre per cassette, eliminating slack and clutter across up to 30 rack units.

Advantages

Retractable cables keep every connection at the exact length needed, so racks stay organised and troubleshooting becomes faster. The ultra-flexible fibre resists bending losses, ensuring stable performance even in tight spaces. With a 10-year warranty and ISO/IEC 11801-1:2017 certification, this system provides long-term reliability for mission-critical environments.

Suitable for

• Data centres and server rooms requiring tidy, high-density patching
• Enterprise networks deploying InfiniBand, Ethernet, or Fibre Channel links
• Installations where frequent moves, adds, and changes demand quick reconfiguration
• Racks up to 30U needing consistent, maintenance-free fibre management

Key specifications

• Cable type: OM4 multimode fibre, duplex (2 fibres), 50/125 µm core/cladding
• Connectors: LC Duplex to LC Duplex, polarity A-B (crossed)
• Length: 1.8 m retractable per cassette
• Jacket material: LSZH (Low Smoke Zero Halogen), aqua colour
• Insertion loss: ≤ 0.3 dB; return loss: ≥ 30 dB
• Bandwidth: 4700 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Operating temperature: -20°C to 70°C; storage: -40°C to 85°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3, ISO/IEC 11801

Recommendations

Ideal for network engineers seeking a clean, scalable fibre patching solution that reduces cable clutter and speeds up deployment. Pair with PATCHBOX cassettes and accessories for a complete rack management system.
