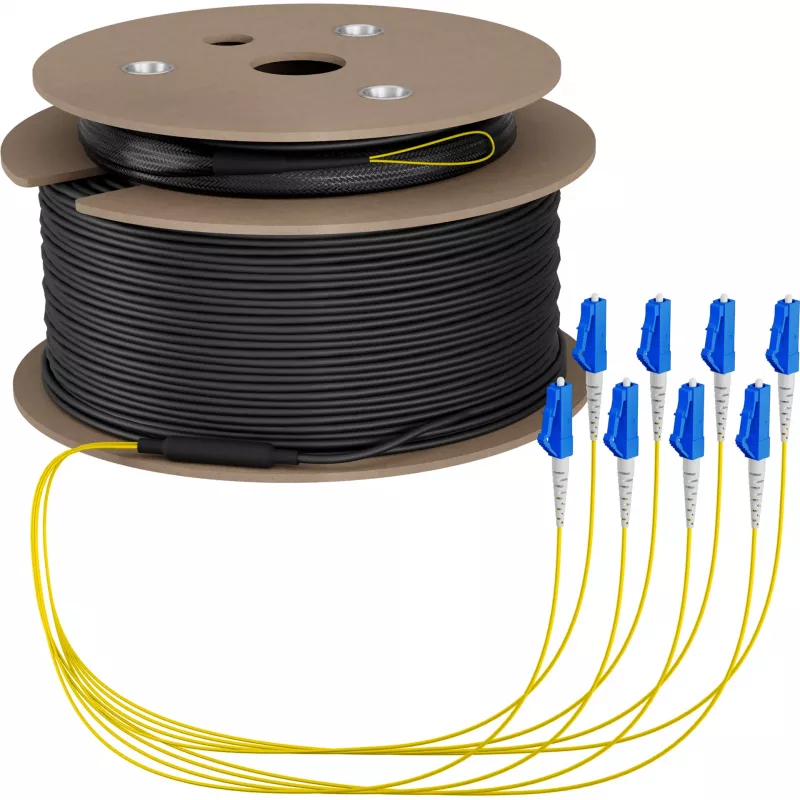

EFB Elektronik OS2 Cavo trunk 8 fibre LC-LC 120m LSZH Dca O8322S120OS2

Fiber optic trunk cable with 8 single-mode OS2 fibers, pre-terminated with LC connectors on both ends, delivering reliable high-speed data transmission over 120 meters. The LSZH jacket ensures low smoke and zero halogen emission in case of fire, making it safe for indoor installations.

Advantages

Pre-terminated LC connectors reduce installation time and ensure consistent performance. The Dca fire performance class meets strict European safety regulations. The yellow jacket provides easy identification of single-mode fiber.

Suitable for

• Data center backbone connections
• Building-to-building links within a campus
• High-density fiber optic patching

Key specifications

• Fiber type: OS2 single-mode 9/125 µm
• Fiber count: 8
• Connectors: LC to LC
• Length: 120 m
• Jacket: LSZH (Low Smoke Zero Halogen)
• Fire performance: Dca
• Insertion loss: < 0.3 dB per connector
• Return loss: > 50 dB (UPC)

Recommendations

Ideal for structured cabling systems requiring high bandwidth and low attenuation over long distances. Ensure proper bend radius management during installation to maintain signal integrity.
