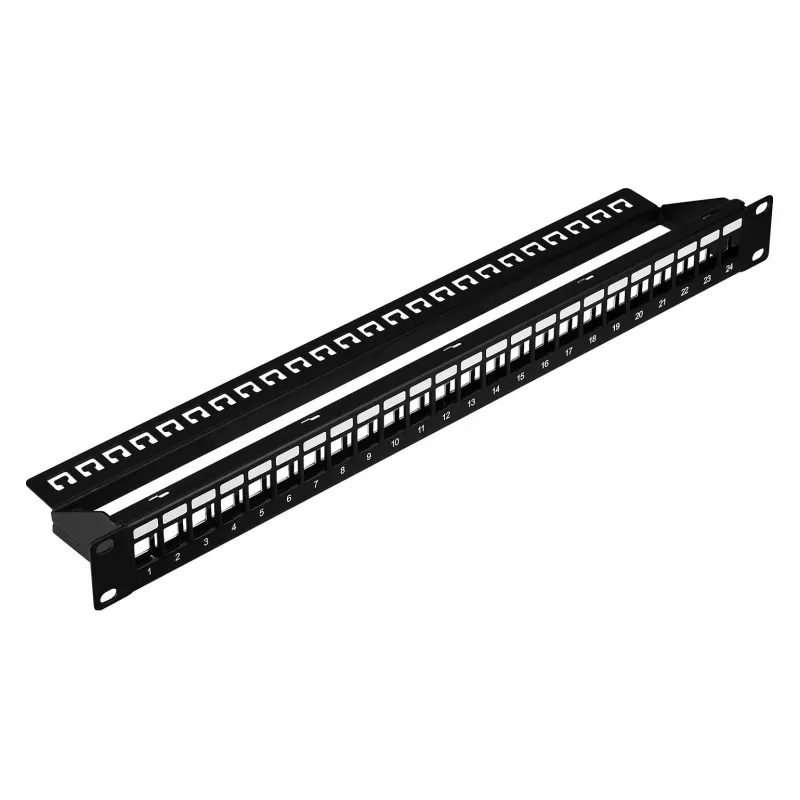

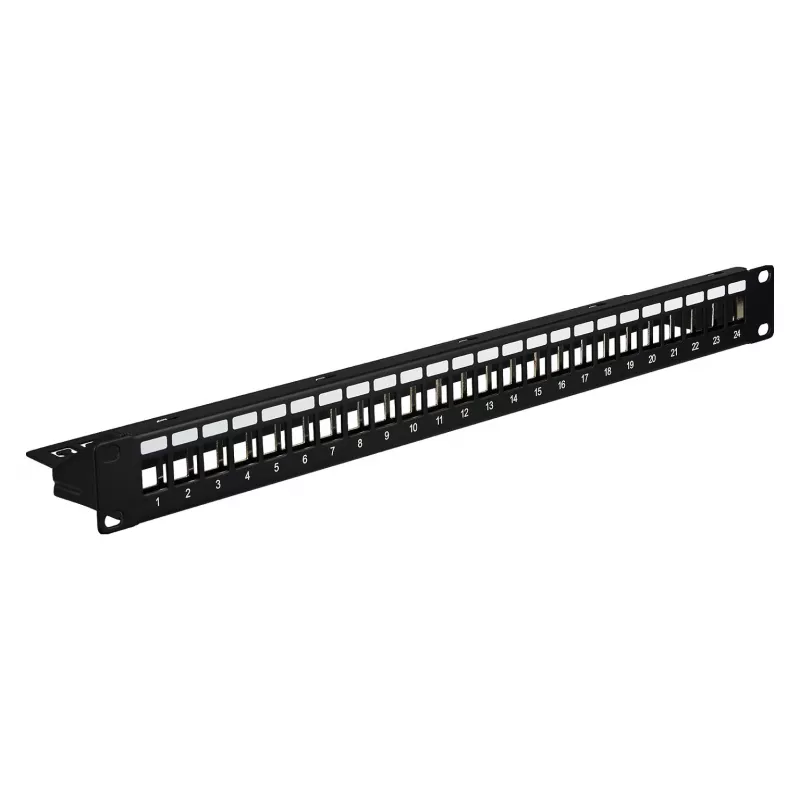

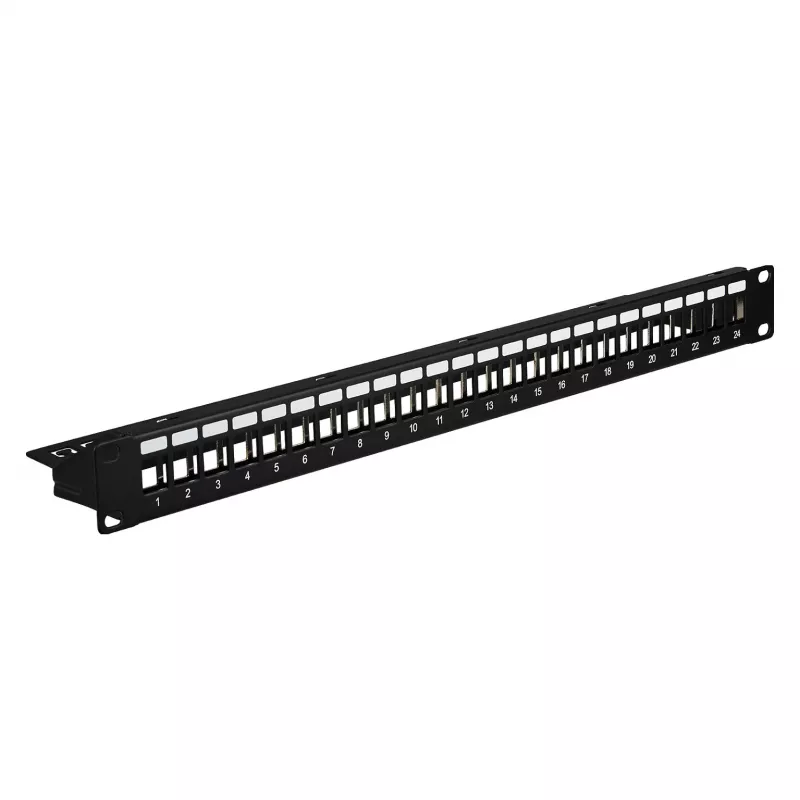

EFB Pannello di Distribuzione 19 inch 1U 24 Porte Schermato Cat.6A Nero RAL9005

The EFB 37580.1V2 is a high-quality 19-inch 1U distribution panel designed for structured cabling in professional network environments. With 24 shielded RJ45 ports and Cat.6A (Class EA) performance, it supports 10 Gigabit Ethernet and is fully compatible with PoE/PoE+ (IEEE 802.3af/at). The robust metal housing in black RAL 9005 ensures durability and EMI protection.

Advantages

• Reliable 10 Gbit/s data transmission
• Shielded design minimizes electromagnetic interference
• Tool-less LSA termination for quick installation

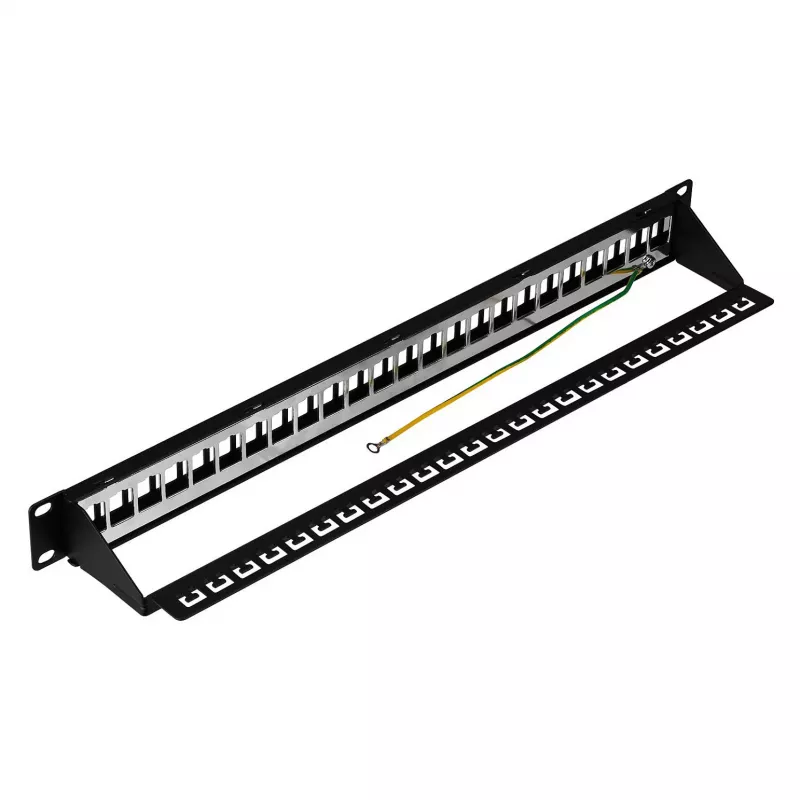

• Integrated rear cable management bar for tidy cabling
• Gold-plated contacts (50µm) for corrosion resistance

Suitable for

• Data center and server room cabling
• Enterprise network infrastructure
• Structured cabling systems requiring Cat.6A performance
• PoE applications such as IP cameras and wireless access points

Key specifications

• Rack Size: 19 inch, 1U height
• Number of Ports: 24
• Cabling Category: Cat.6A (Class EA)
• Shielding: Shielded (FTP/STP)
• Termination Type: LSA (Krone type)
• Front Connector: RJ45
• Housing Material: SPCC Steel
• Colour: Black (RAL 9005)
• Contact Plating: Gold (50µm)
• Wire Gauge: 22-26 AWG solid/stranded
• Wiring Standard: TIA/EIA 568A/B
• Transmission Speed: Up to 10 Gigabit Ethernet
• PoE Support: PoE, PoE+ (IEEE 802.3af/at)
• Grounding: Integrated grounding connection
• Certifications: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, use with Cat.6A shielded patch cables and ensure proper grounding. Suitable for both solid and stranded conductors.
