Ekivalan Cavo patch in fibra ottica duplex OS2 LC/SC APC, 9/125 µm, giallo, 3 m COZ008DALC2SJ0030A

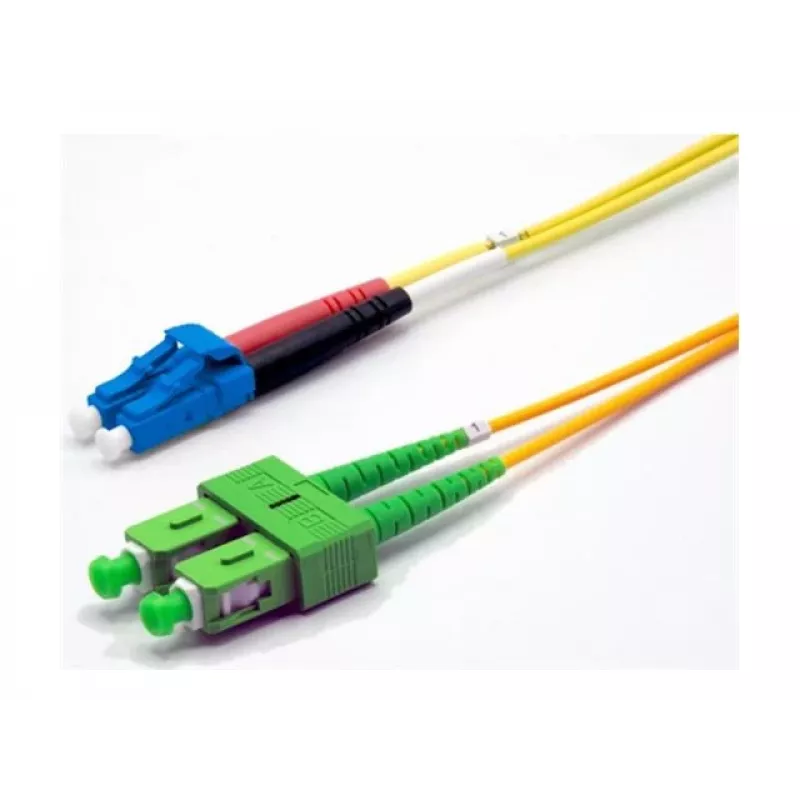

This Ekivalan OS2 duplex patch cable pairs an LC connector with an SC APC connector, delivering single-mode performance over a 3-metre yellow LSZH jacket. The 9/125 µm core/cladding is optimised for 1310 nm and 1550 nm wavelengths, with insertion loss ≤ 0.3 dB and return loss ≥ 60 dB.

Highlights

• Duplex OS2 single-mode fibre, 9/125 µm
• LC to SC APC connectors
• 3.0 m length, yellow LSZH jacket
• Insertion loss ≤ 0.3 dB, return loss ≥ 60 dB
• Supports 1310 nm and 1550 nm

Full specifications

• Fibre type: OS2 single-mode
• Core diameter: 9 µm
• Cladding diameter: 125 µm
• Connector 1: LC
• Connector 2: SC APC
• Connector polish: APC
• Cable length: 3.0 m
• Cable colour: Yellow
• Jacket material: LSZH
• Insertion loss (typical): ≤ 0.3 dB
• Return loss (typical): ≥ 60 dB
• Wavelengths supported: 1310 nm, 1550 nm
• Attenuation @ 1310 nm (typical): ≤ 0.4 dB/km
• Attenuation @ 1550 nm (typical): ≤ 0.3 dB/km
• Operating temperature: -20°C to +70°C

Final note

Ideal for high-density fibre patching where low loss and stable return loss are critical.
