Ekivalan OM3 cavo patch in fibra ottica duplex LC/SC 2m aqua COZOM3DCLC2SA0020A

Engineered for 10 Gigabit Ethernet, this OM3 multimode fibre patch cable delivers reliable performance in data centre interconnects and fibre channel applications. With a core/cladding diameter of 50/125 µm and a duplex configuration, it ensures efficient bidirectional communication.

Overview

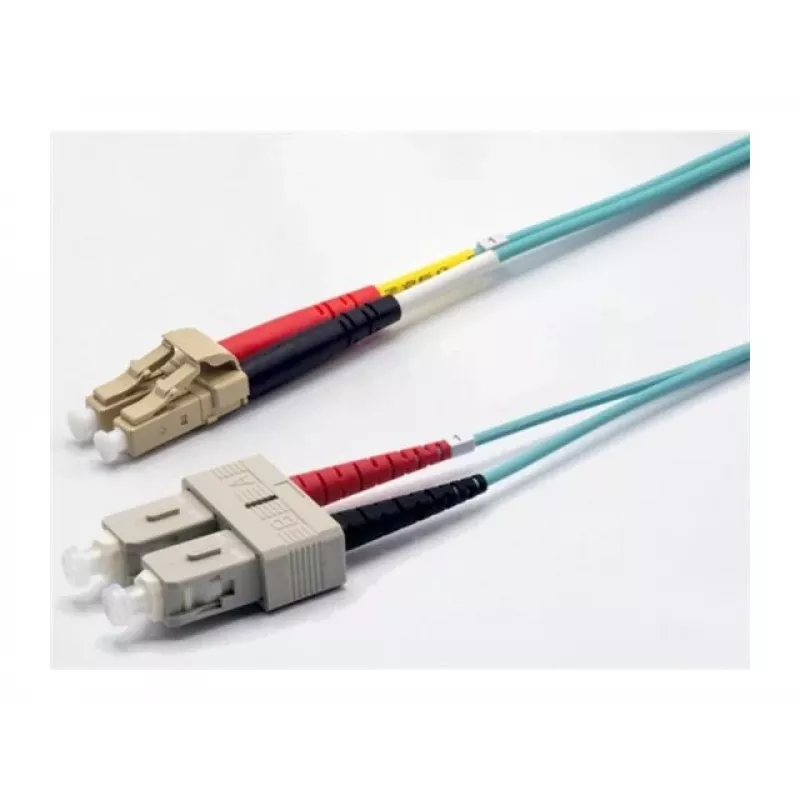

This 2-metre patch cable features LC and SC connectors with PC polishing, offering low insertion loss of ≤0.3 dB and a minimum return loss of 30 dB. The aqua LSZH jacket provides flame retardancy and low smoke emission, making it suitable for indoor installations where safety is paramount.

What stands out

• OM3 fibre supports 10 Gb/s up to 300 metres
• Duplex design with LC and SC connectors
• LSZH jacket reduces toxic fumes in case of fire
• Low insertion loss ensures signal integrity
• Operating temperature range: -20°C to +70°C

Technical details

• Cable length: 2 m
• Fibre type: OM3 multimode, 50/125 µm
• Connector 1: LC
• Connector 2: SC
• Jacket material: LSZH
• Insertion loss: ≤0.3 dB
• Return loss: ≥30 dB
• Attenuation: 3.5 dB/km @ 850 nm, 1.5 dB/km @ 1300 nm
• Minimum bend radius: 30 mm (dynamic)
• Cable diameter: 3.0 mm

Our verdict

A dependable OM3 patch cable for high-speed fibre links, combining performance with safety in a compact 2-metre length.
